IGS DIGGIN' DEEP - 10 PIN Button Layout; Solving Ticket SSR Error

7
36 & 10 PIN Button Layout
6 Button
TAKE
STOP1
BIG
STOP 2
(HOLD)
DOUBLE
STOP 3
(SELECT
LINE)
SMALL
STOP 4
(HELP)
START
ALL STOP
TAKE
BET
STOP 5
Solving Ticket SSR Error
After powering on the machine, if the ticket dispenser keeps working and can’t be
stopped, it could be that the Ticket SSR’s jump setting is incorrect.
How to solve:

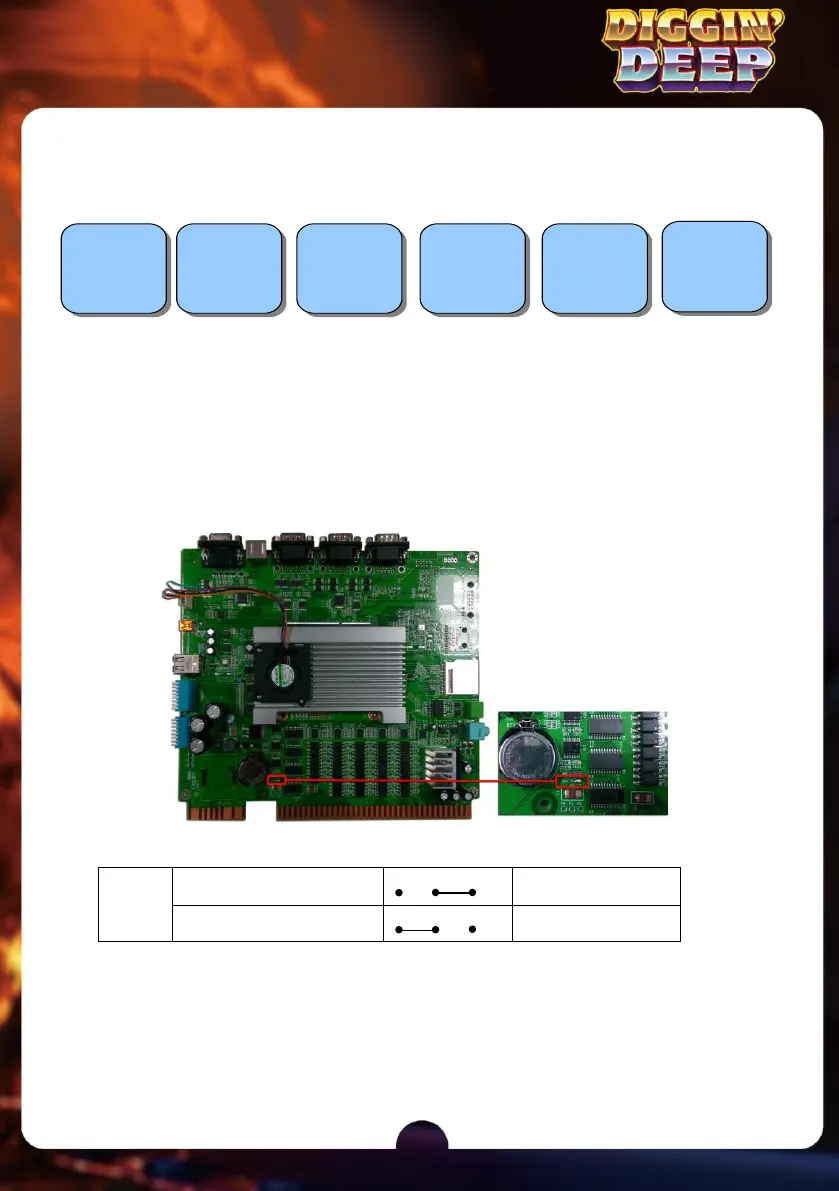

1. Locate the Ticket SSR jump (JP5) on the PC board. Then identify current
TICKET SSR
is at
HIGH ACTIVE
or
LOW ACTIVE
.
2. Change to use the alternative JP5 setting.
JP5
Low Active
3 2 1
Short pins 1-2
High Active (Default)
3 2 1
Short pins 2-3
