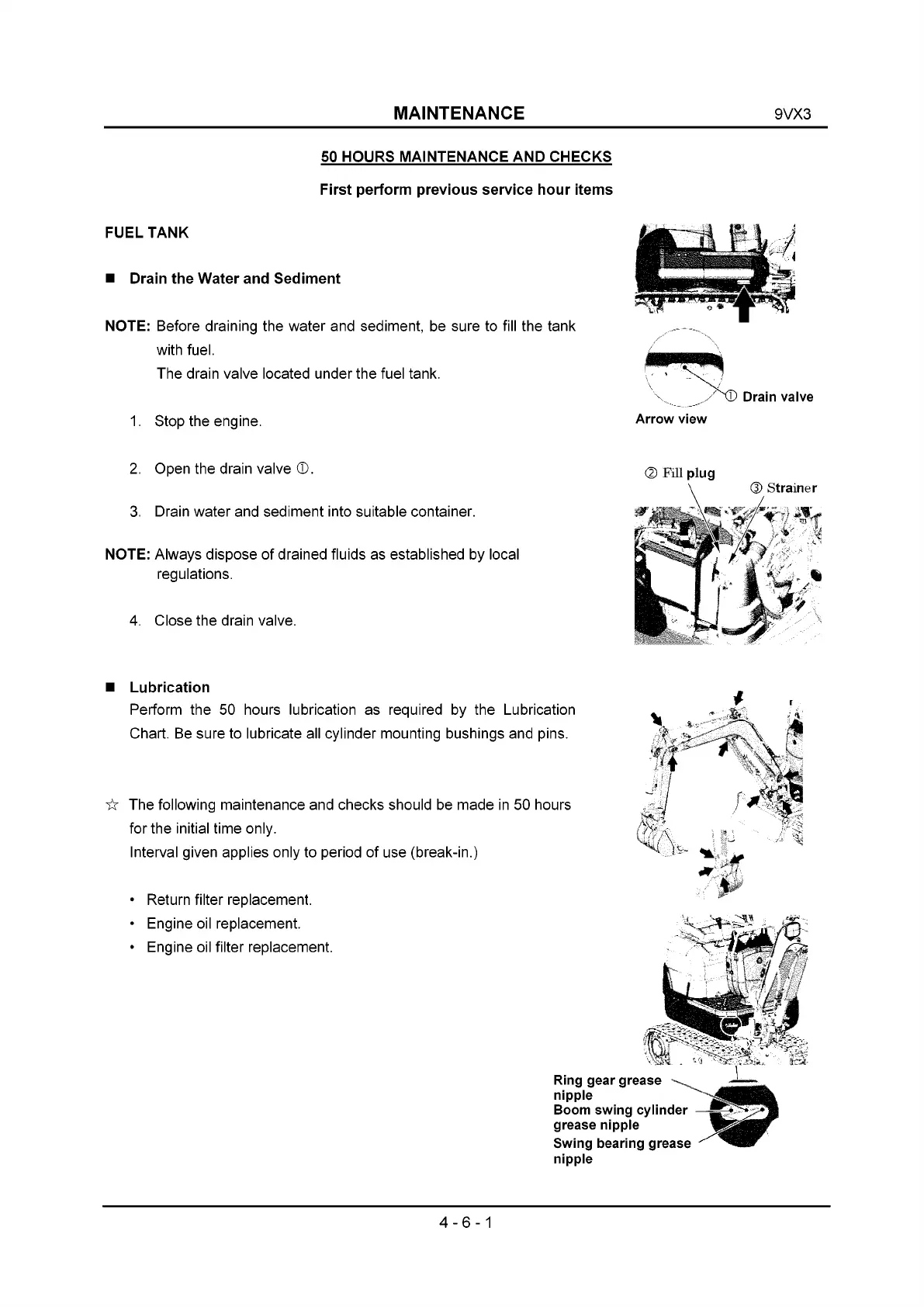

50 HOURS MAINTENANCE AND CHECKS
First perform previous service hour items
FUEL TANK
■ Drain the Water and Sediment
NOTE: Before draining the water and sediment, be sure to fill the tank
with fuel.
The drain valve located under the fuel tank.
1. Stop the engine.
2. Open the drain valve ©.
3. Drain water and sediment into suitable container.
NOTE: Always dispose of drained fluids as established by local
regulations.
4. Close the drain valve.
■ Lubrication
Perform the 50 hours lubrication as required by the Lubrication
Chart. Be sure to lubricate all cylinder mounting bushings and pins.
Щ
☆ The following maintenance and checks should be made in 50 hours
for the initial time only.
Interval given applies only to period of use (break-in.)
• Return filter replacement.
• Engine oil replacement.
• Engine oil filter replacement.
_____________________________
MAINTENANCE
_________
Ring gear grease
nipple
Boom swing cylinder
grease nipple
Swing bearing grease
nipple
Arrow view
© Fill plug
9VX3
© Drain valve
® Strainer
/
/
4-6-1
