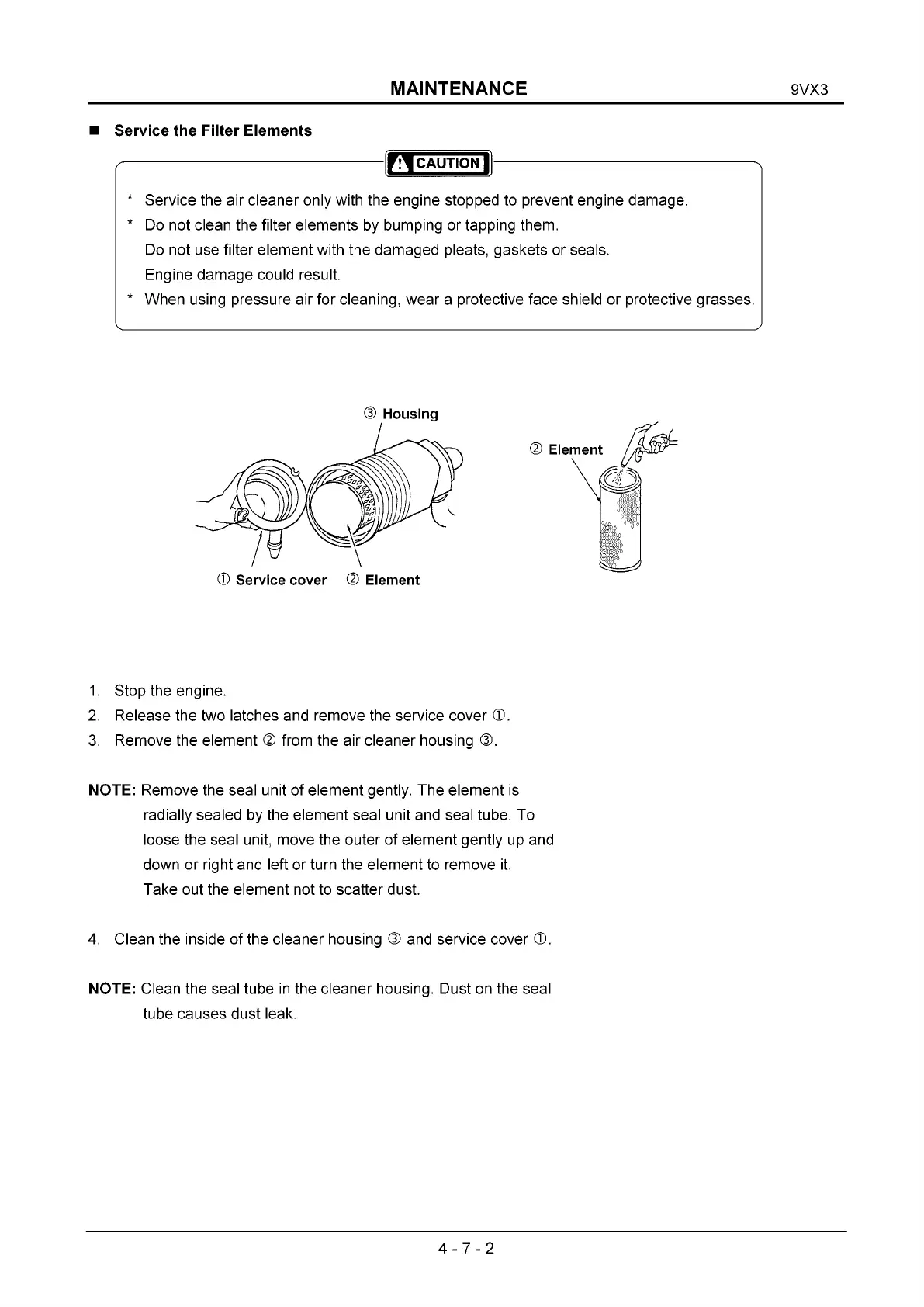

■ Service the Filter Elements
,
------------------------------------------------------
If ! l CAUTION |
------------------------------------------------------
* Service the air cleaner only with the engine stopped to prevent engine damage.
* Do not clean the filter elements by bumping or tapping them.
Do not use filter element with the damaged pleats, gaskets or seals.
Engine damage could result.
* When using pressure air for cleaning, wear a protective face shield or protective grasses.
® Housing
1. Stop the engine.
2. Release the two latches and remove the service cover ®.
3. Remove the element © from the air cleaner housing ®.
NOTE: Remove the seal unit of element gently. The element is
radially sealed by the element seal unit and seal tube. To
loose the seal unit, move the outer of element gently up and
down or right and left or turn the element to remove it.
Take out the element not to scatter dust.
4. Clean the inside of the cleaner housing ® and service cover ® .
NOTE: Clean the seal tube in the cleaner housing. Dust on the seal
tube causes dust leak.
