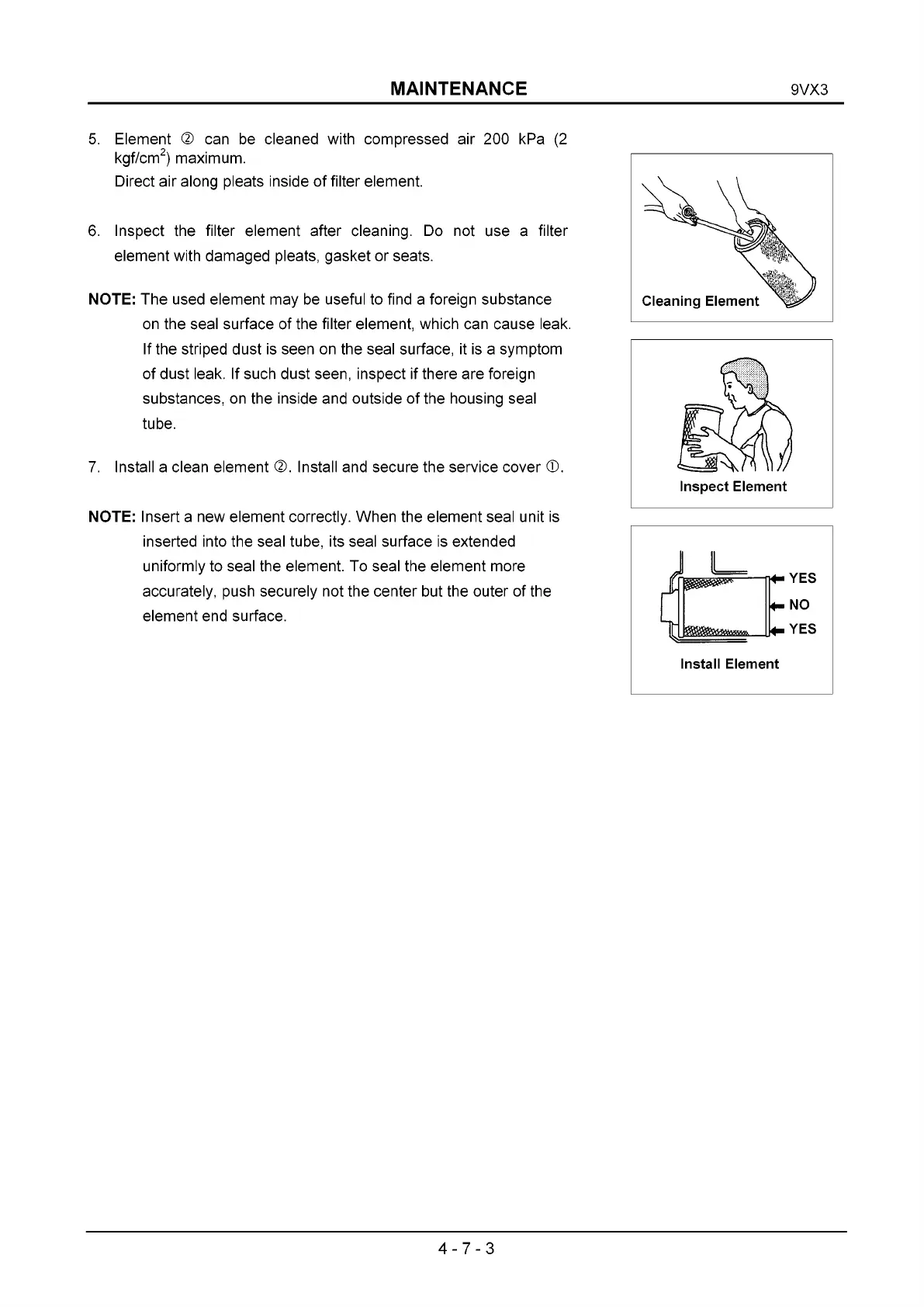

MAINTENANCE 9VX3
5. Element © can be cleaned with compressed air 200 kPa (2
kgf/cm2) maximum.
Direct air along pleats inside of filter element.
6 . Inspect the filter element after cleaning. Do not use a filter
element with damaged pleats, gasket or seats.
NOTE: The used element may be useful to find a foreign substance
on the seal surface of the filter element, which can cause leak.
If the striped dust is seen on the seal surface, it is a symptom
of dust leak. If such dust seen, inspect if there are foreign
substances, on the inside and outside of the housing seal
tube.
7. Install a clean element © . Install and secure the service cover ©.
NOTE: Insert a new element correctly. When the element seal unit is
inserted into the seal tube, its seal surface is extended
uniformly to seal the element. To seal the element more
accurately, push securely not the center but the outer of the
element end surface.
/Г
i
____
4 - YES
4- NO
4- YES
Install Element
4-7-3
