STRUCTURE AND FUNCTION
9VX3

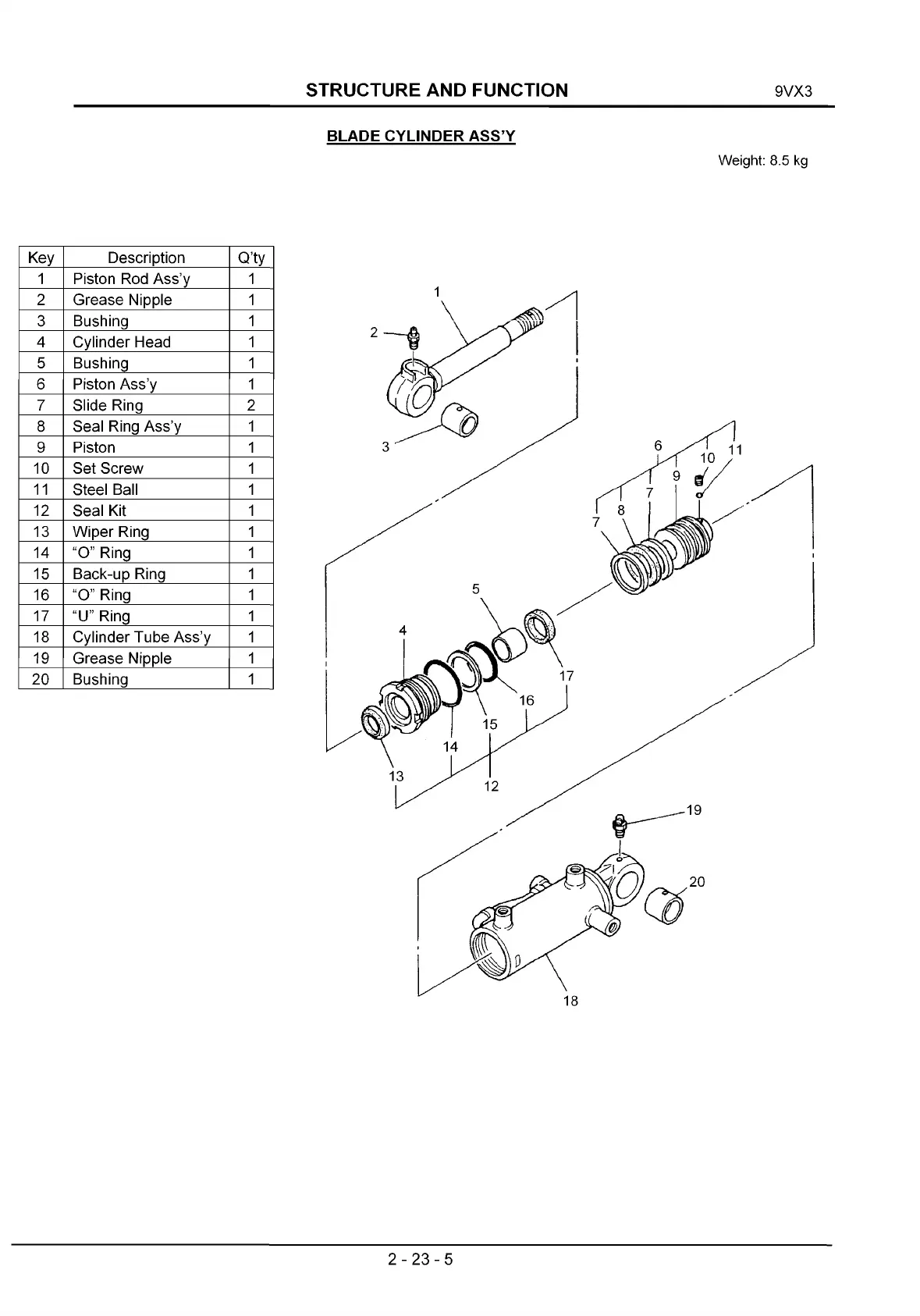

BLADE CYLINDER ASS’Y
Weight: 8.5 kg
Key
Description
Q’ty
1 Piston Rod Ass’y 1
2 Grease Nipple 1
3
Bushing 1
4 Cylinder Head 1
5 Bushing 1
6 Piston Ass’y 1
7
Slide Ring
8
Seal Ring Ass’y
1
9 Piston 1
10 Set Screw 1
11
Steel Ball
1
12
Seal Kit
1
13 Wiper Ring 1
14 “0 ” Ring 1
15
Back-up Ring
1
16
“0 ” Ring
1
17 “U” Ring 1
18 Cylinder Tube Ass’y 1
19 Grease Nipple
1
2 0
Bushing 1
2- 23-5
