IHI 9VX3 - Page 55

Tightening torque : 7.8N«m Tightening torque : 98 N«m
Tightening torque : 226 N*m
(M5) Calk at 2 positions.
(M14 x 1.5)
14 15 12 11 10 13
(M45 x 2.0)
18 6 5 4 16 3 1

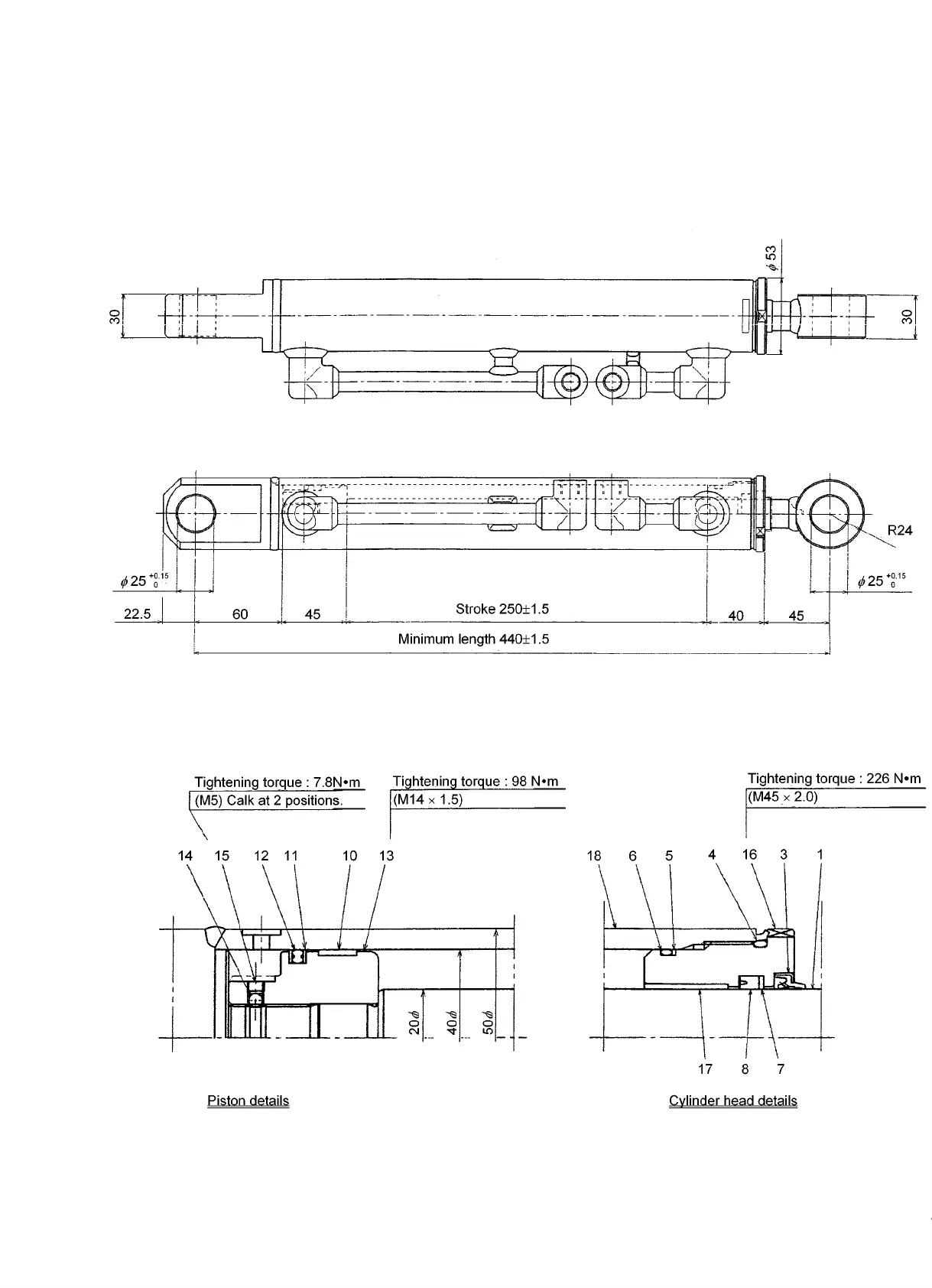

Piston details
Cylinder head details
