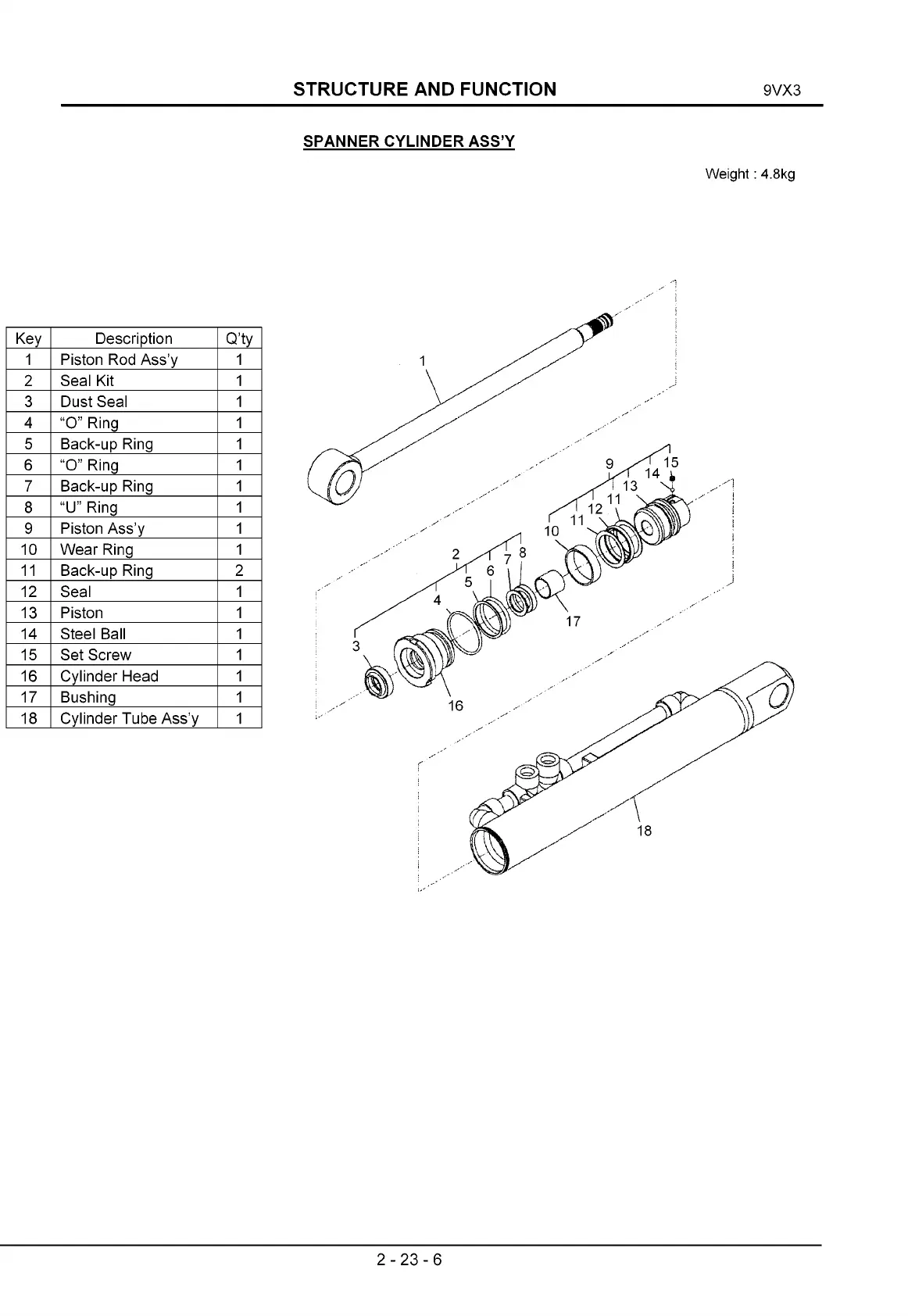

IHI 9VX3 - Page 56

Key
Description
Q’ty
1
Piston Rod Ass’y
1
2 Seal Kit 1
3 Dust Seal 1
4
“0 ” Ring
1
5
Back-up Ring
1
6 “0 ” Ring 1
7 Back-up Ring 1
8
“U” Ring
1
9
Piston Ass’y
1
10 Wear Ring 1
11 Back-up Ring
12
Seal
1
13
Piston 1
14 Steel Ball 1
15 Set Screw 1
16
Cylinder Head
1
17 Bushing 1
18 Cylinder Tube Ass’y 1
