PLE1700S Service Manual
-3-
05/12/2006

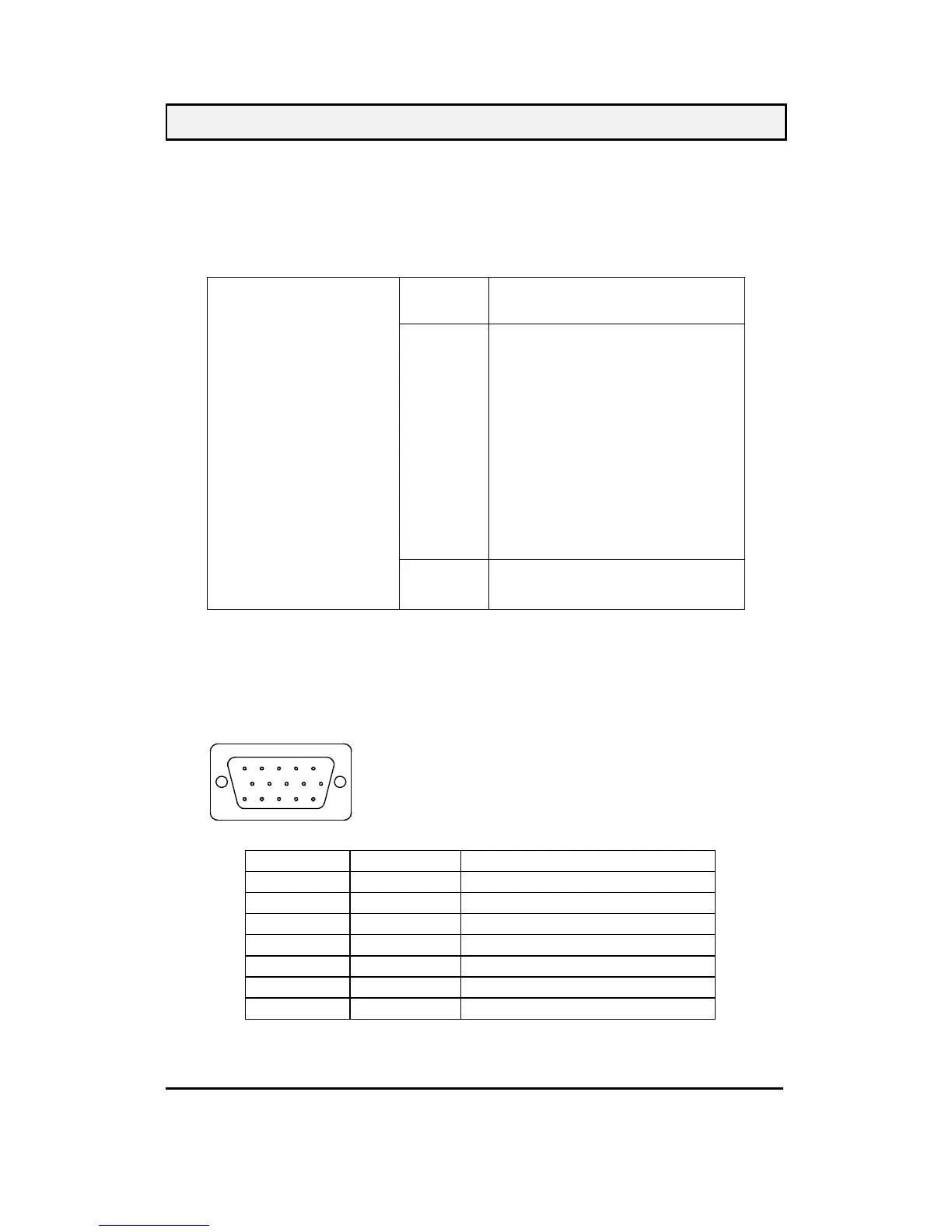

3.2. FACTORY SUPPORTING MODES
There are totally 35 timings mode that can be saved in memory by FIFO architecture.
This monitor can support VGA up to SXGA resolution.
There are some resolution example listed in lookup timing table.
VGA
VGA
720 × 400 (70Hz) mode
640 × 480 (60Hz) mode
VESA 640 × 480 (75Hz) mode
800× 600 (56Hz) mode
800 × 600 (60Hz) mode
800 × 600 (72Hz) mode
800 × 600 (75Hz) mode
1024 × 768 (60Hz) mode
1024 × 768 (70Hz) mode
1024 × 768 (75Hz) mode
1280 × 1024 (60Hz) mode
1280 × 1024 (75Hz) mode
Lookup timing table
MAC 640 × 480 (67Hz) mode
832 × 624 (74.5Hz) mode
3.3. D-SUB CONNECTOR
D-SUB 15 PIN CONNECTOR
CONNECTOR SIGNAL DESCRIPTION
R RED 0.7vp-p(VIDEO)
G GREEN 0.7vp-p(VIDEO)
B BLUE 0.7vp-p(VIDEO)
H H/SYNC TTL positive or negative
V V/SYNC TTL positive or negative
SDA DDC1/2B TTL
SCL DDC1/2B TTL
12345
678910
11 12 13 14 15
1.R 6.GND 11.NC
2.G 7.GND 12.SDA
3.B 8.GND 13.H.SYNC
4.NC 9. +5V 14.V.SYNC
5.GND 10.GND 15.SCL
