UNO Synth Pro
4 – Front Panel Interface
21
4.2.6 – Effects (FX)
UNO Synth Pro is equipped with 3 slots of digital effects, which are MODulation, DELAY and REVERB, plus an
analog DRIVE.

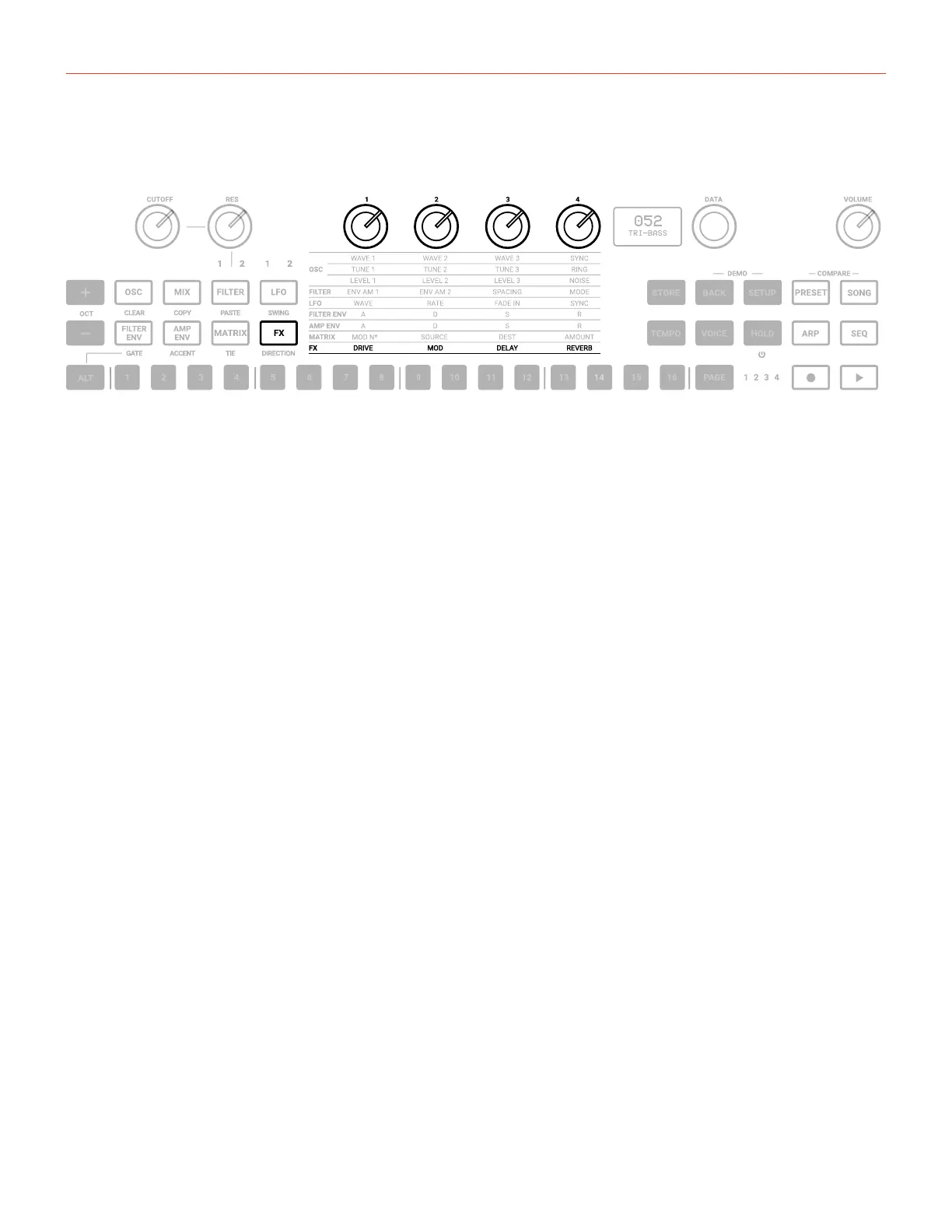

All effects are mono-to-stereo, 48kHz 16-bit. The FX amounts are available by pressing the FX button, which
lights the 9th and last row of the text indicators.
DRIVE: Adjusts the amount of signal going to the drive circuit, which is built around 2 diodes positioned after
the filter stage. The range is 0 to 127.
MOD: Adjusts the amount of Modulation added to the DRY signal.
DELAY: Adjusts the amount of Delay added to the DRY signal.
REVERB: Adjusts the amount of Reverb added to the DRY signal.
Other parameters are accessible from the EDIT PRESET menu.
