2.8.6 Wing flaps:

The wing flaps are actuated by a lever located in the middle of the longitudinal tube

of the canopy roof frame. The lever is linked to the flap horns via push-rods.

As an option, the wing flaps can also be actuated electrically via a servo motor which

is controlled by means of a rocker switch in the control stick or a separate rocker

switch in the instrument panel.

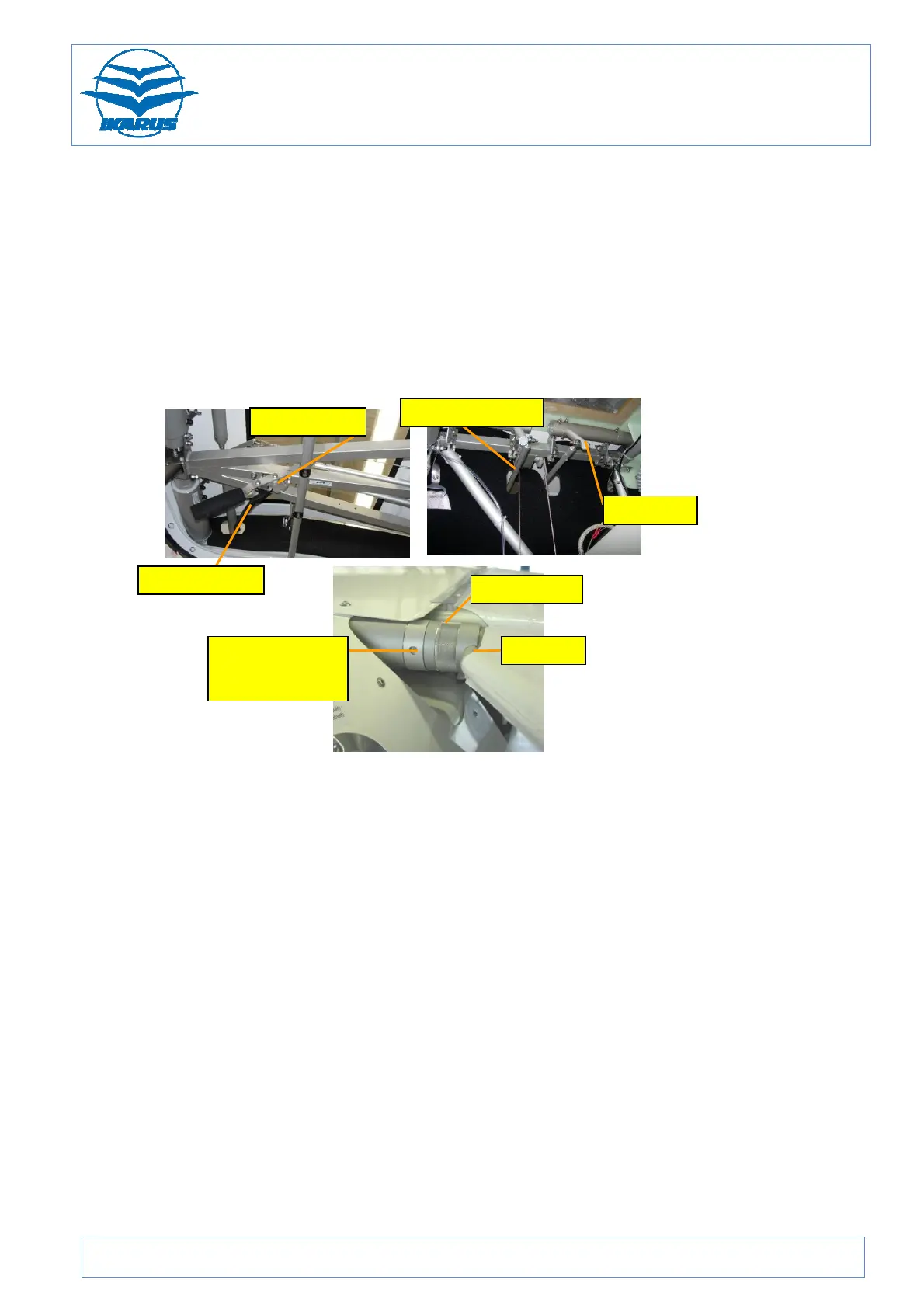

Figure 43: Flap controls

flap horn

spring-loaded lock

(also on the rear

side)

wing flap lever

wing flap track

wing

flap push rod

sliding sleeve

flap

spar
