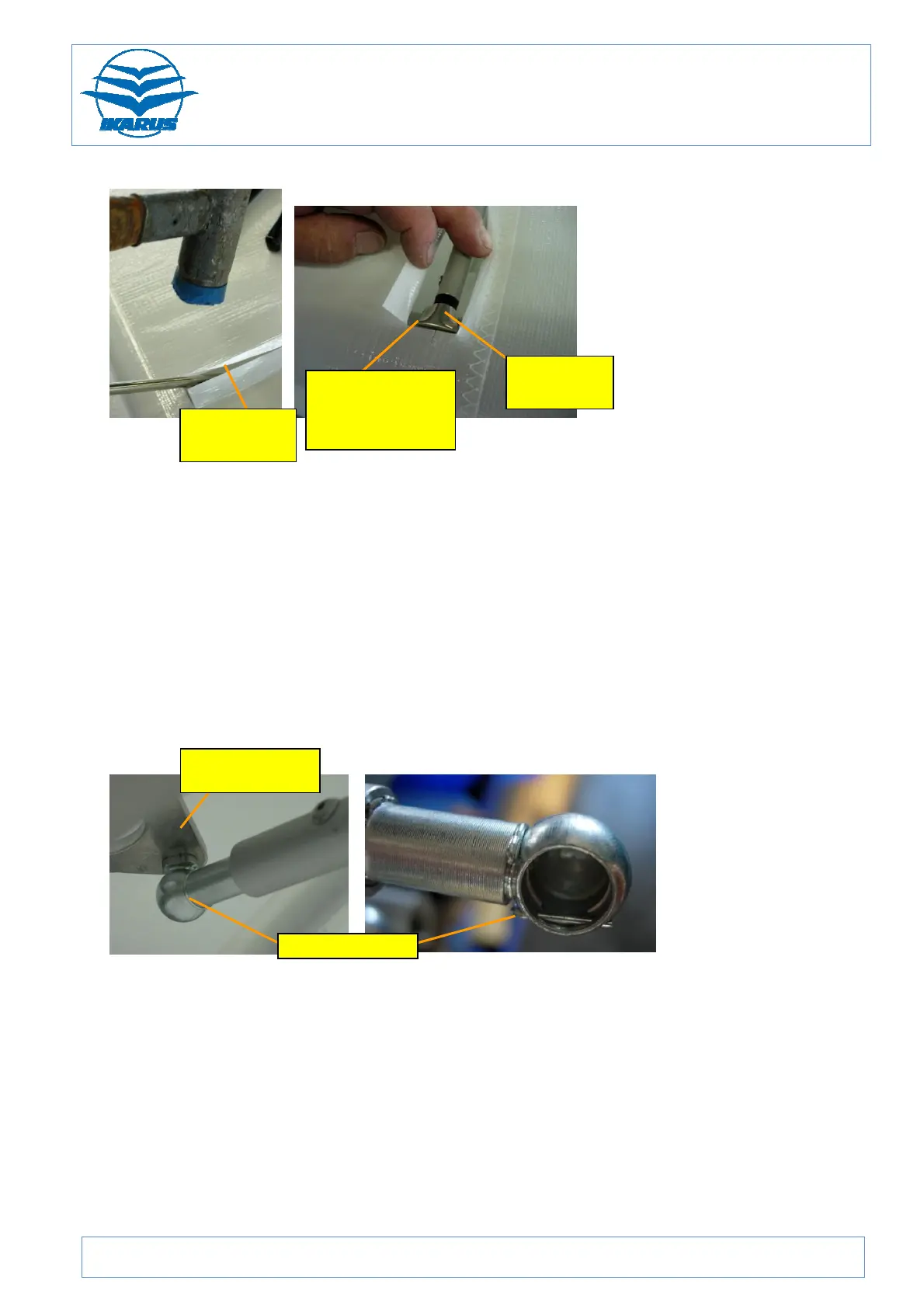

Figure 68: Flattening the safety plate
12) Clean and degrease the covering where the masking tape is attached.
13) Reattach tape.
4.3.5.2 Checking the security of the aileron push-rods
Safety pins are used to secure the rod ends. These can be visually inspected or felt
through the zip openings.
Figure 69: Safety pin at aileron push-rod bellcrank
flattening the
safety plate
Flattened
safety plate
Do not flatten in
plane bending. The
plate could
otherwise break.
pin in rod end
aileron bellcrank
(in wing)
