19
67472
67471
68252
67396
67467
67467
67477
69010

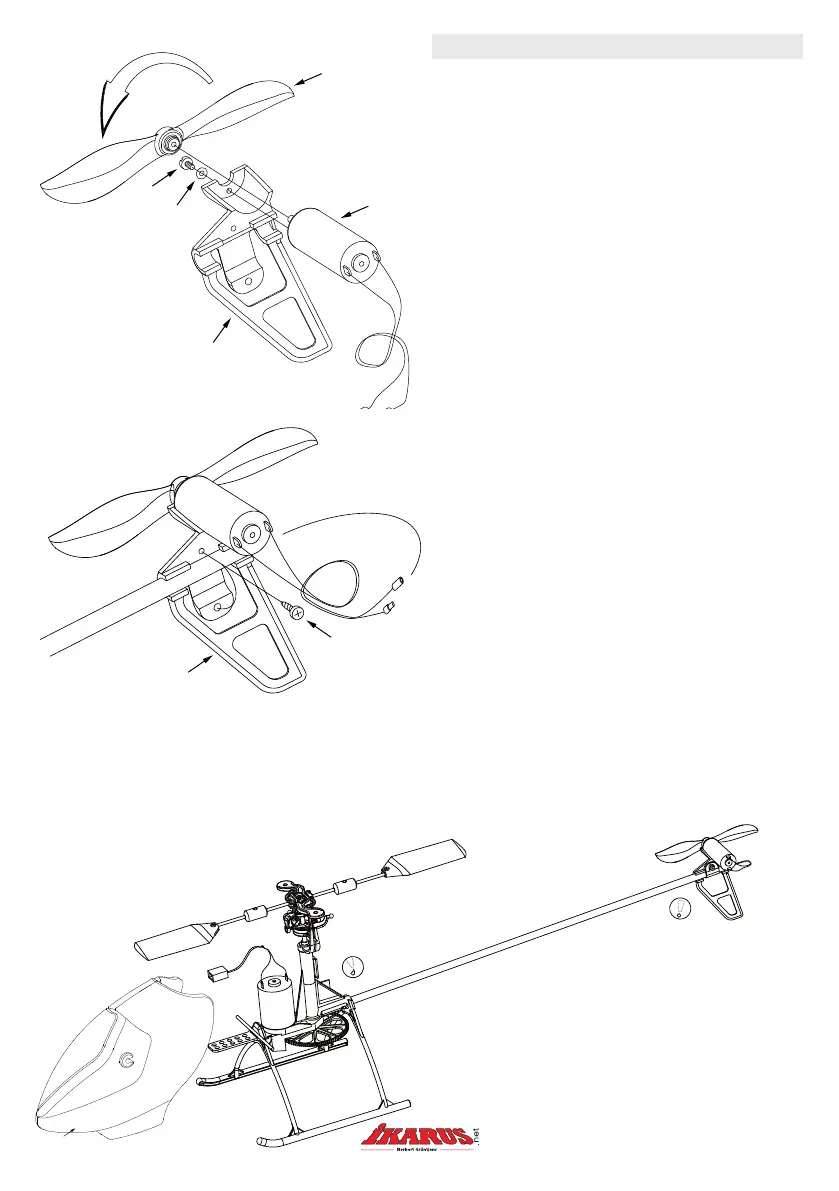

Now press the Tail rotor propellor # 67471 with the
conical side inboard onto the shaft of the tail motor
# 67472. Take care that there is a gap between the
motor bearing shield and the propeller.
Now attach the motor with the rotor into the tail
housing # 67467. Adjust the Tail rotor so that it
clears the tail housing. N.B. make sure the tail rotor
is facing the correct way ! The Helicopter will not y
if this is wrong,
Place the Tail boom in the tail housing. Make sure
that the Tail boom is inserted to the stop. Lift the
boom retaining lug around the boom and secure with
the retaining screw.
Lead the tail motor wire through the tail rotor housing, then through the Tail boom # 67381 and nally through
the chassis. Then stick the Tail boom into the chassis, pushing the pipe in to the stop. Please note that when
viewed from behind, the tail motor must be positioned exactly horizontally (at right-angles to the main rotor
shaft), then place a drop of CA glue into the gap.
Now you can decorate the pre-assambled body # 69010 with the transfer # 6043001.
Tail rotor tting
