Fuses functionRating
Fuse
No.
Electric supply for ignition switch40 A1
Relay switch for fog lamp/horn30A2
BCM Inside systems electric
connection supply
40A3
BCM Inside systems electric
connection supply
30A4
Fan (High speed)40A5
Fan (Low speed)30A6
Brake (ABS)30A7
Brake (ABS)40A8
Reserve----9
Front node supply20A10
Front node supply15A11
Front node supply windshield
wiper and relay for windshield
washer pump
30A12
Spare----13
Double relay supply30A14
Fuel pump supply10A15
Engine unit supply10A16
Reserve----17
Reserve----18
Reserve----19
Reserve----20
Rating - typeRelay Function
Relay
No.
30A-1Contact
Relayt switch for engine
control
RLYa
30A-1ContactRelay switch for fuel pumpRLYb
30A-1ContactRelay switch for fog lampRLY1
30A-1ContactRelay switch for hornRLY2
30A-2Contact
Relay switch for
windshield wiper
RLY3
30A-2Contact
Relay switch for
windshield wiper
RLY4
40A-2Contact
Relay switch for fan (high
speed)
RLY5
30A-1Contac
Relay switch for fan (low
speed)
RLY6
30A - Contact 2Relay for fanRLY7
30A - Contact 1
Relay for windshield
washer pump
RLY8

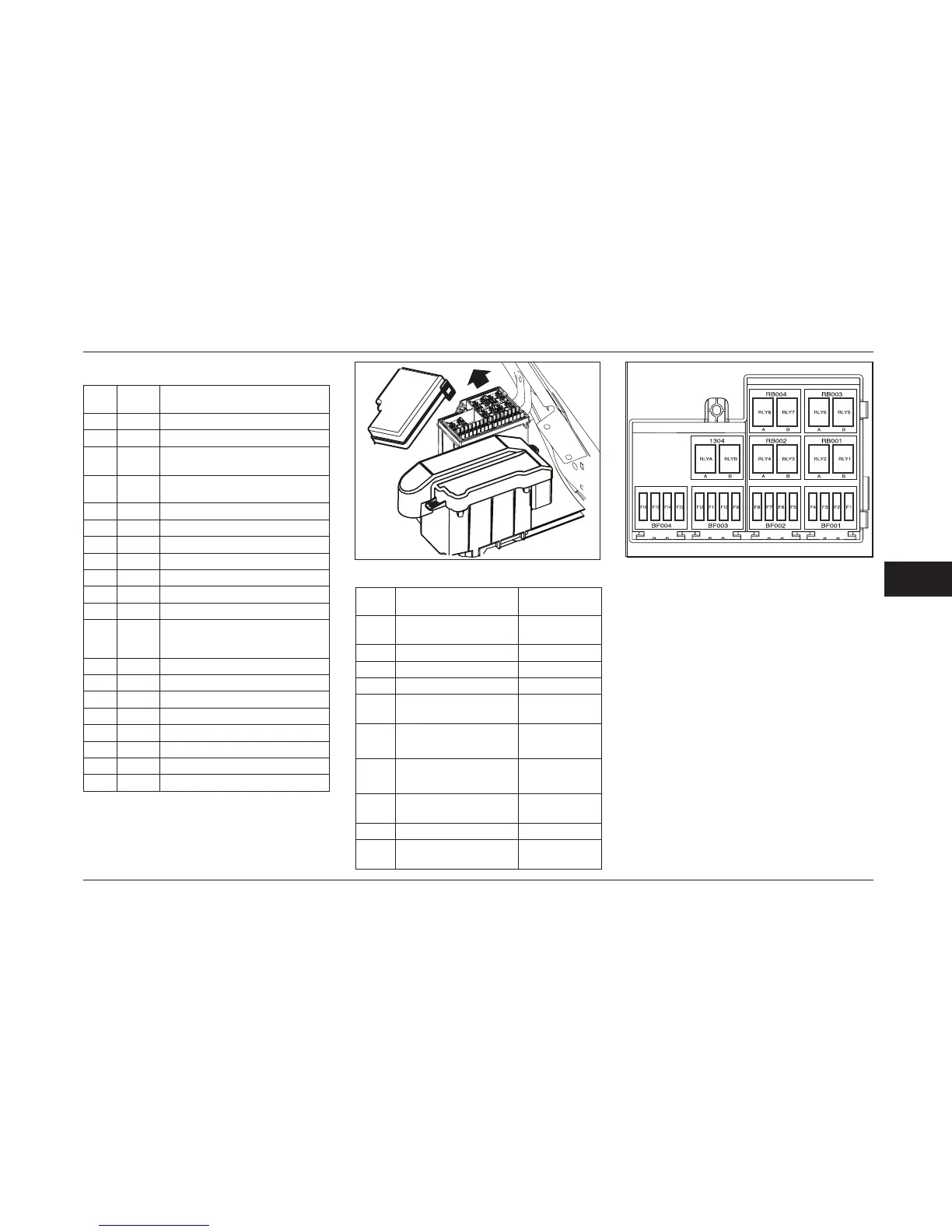

Fuses Guide Table *
Relays Guide Table *
Engine Compartment Fuse box *
Fuse box is in the right part of the engine
compartment. To access the fuse located in the
engine compartment, unclip the fuse box cover.
Close the fuse box cover carefully when you
have nished.
Vehicle owner shall not tamper fuse connection.
Any problem in this part should be checked by
authorized experts.
FUSES
* If installed in your car
