146
5
FUSES
Fuses functionRatingFuse No.
Electric Seat Supply20 AF21
Main switch supply (position 2) air bag unit and air conditioning system10AF22
Main switch supply (position 1) lighter10AF23
Main switch supply - position 1(motivation of heater relay ، Radio, brake, light, front node,
central node and instrument panel), Motivation of Glass Heater Relay
10AF24
Radio permanent supply10AF25
Central node supply20AF26
Central node supply20AF27
Central node supply and motivation of rear door motive relay30AF28
Rear Lifting Window30AF29
Central node supply (Front lifting window)30AF30
Rear window heater30AF31
Heater fan supply30AF32
Engine ignition30AF33
Main switch supply (position 2) immobilizer, diagnostic connector, instrument panel,
cooler gas pressure sensor, engine unit
10AF34
Main switch supply (position 2), Anti-brake system (ABS)5AF35
Immobilizer permanent supply, diagnostic connector, instrument panel10AF36
Rating - typeRelay Function
Relay
No.
--------RLY1
Contact 1 - 30ATrunk Lid Electric ActuatorRLY2
Contact 1 - 30A
Mirrors and rear window
heater
RLY3
Contact 1 - 30AVentilation Fan RelayRLY4
Contact 2 - 30A
Rear Lifting Window
(Left)
RLY5
Contact 2 - 30A
Rear Lifting Window
(Left)
RLY6
Contact 2 - 30A
Rear Lifting Window
(Right)
RLY7
Contact 2 - 30A
Rear Lifting Window
(Right)
RLY8

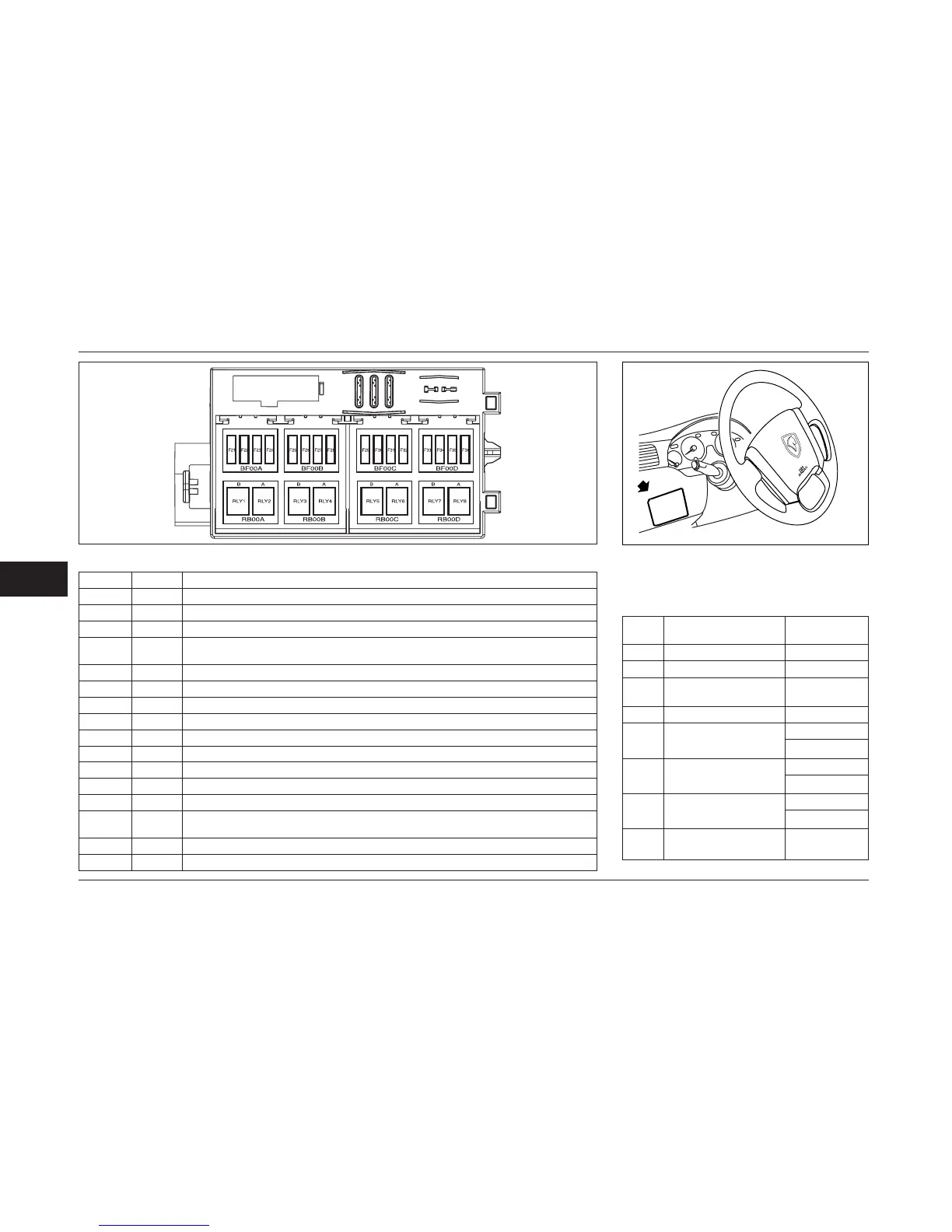

Fuses guide table (cabin) FUSE BOX AND DASHBOARD RELAY*
The fuse box is located under the dashboardon
the left. To open, pull the fuse box cover to the
front.
* If equipped
