FUSES
Fuses functionFuses AmpereFuses
Front seat electricity 20 AF1
Ignition switch 1, 2
10AF2
Cruise control electricity
Brake switch electricity
Raining sensor electricity
Radio electricity
Lighter electricity20 AF3
-----------10AF4
Ventilation fan 30AF5
Starter20 AF6
-----------10AF7
-----------
5AF8 CCN electricity
Immobilizer electricity
Right rear indicator
15AF9
Left rear fog lamp
Right rear gear lamp
Left brake lamp
Plate lamp
Fuses functionFuses AmpereFuses
Right rear night warning lamp
15AF9 Rear window key regulator lamp
RN electricity
Left rear indicator
15AF10
Right rear fog lamp
Left rear gear lamp
Right brake lamp
Rear & front roof lamp controlled by doors
Left rear night warning lamp
RN electricity
Electrical motivator of boot
30AF11
Electrical motivator of rear doors
Electrical motivator of petrol tank
Rear door & boot lamp
Rear & front roof lamp in permanent position
-----------
-----------20 AF12
Rear window & mirror heater
30AF13 Left rear electrical window regulator
Right rear electrical window regulator
Radio & memory of radio
15AF14
Diagnostic connector electricity
-----------
5AF15
Raining sensor
Instrument panel light & central consul
Map reading lamp, Glove box lamp vanity mirror & electrical mirror
CCN electricity
Rear window heater &mirror heater key lamp
Flasher key lamp
Central lock key lamp
Electrical motivator of boot key lamp
FN electricity
ICN electricity
ICN memory
Diagnostic connector electricity after switch
5AF16 Ignition switch 2,3
ABS electricity
Air bag10AF17

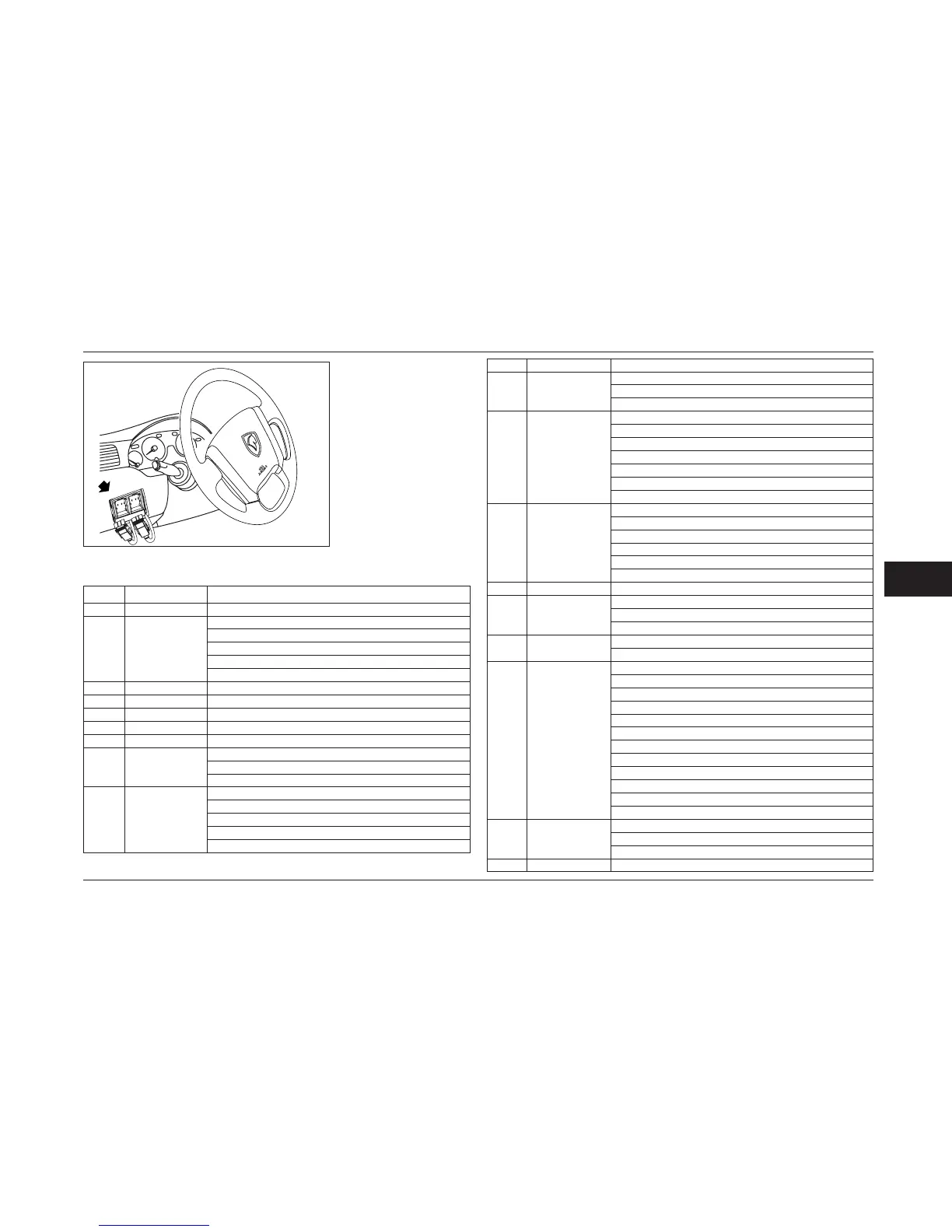

NODE CCN*
The location of this node is under the steering wheel.
* If equipped
