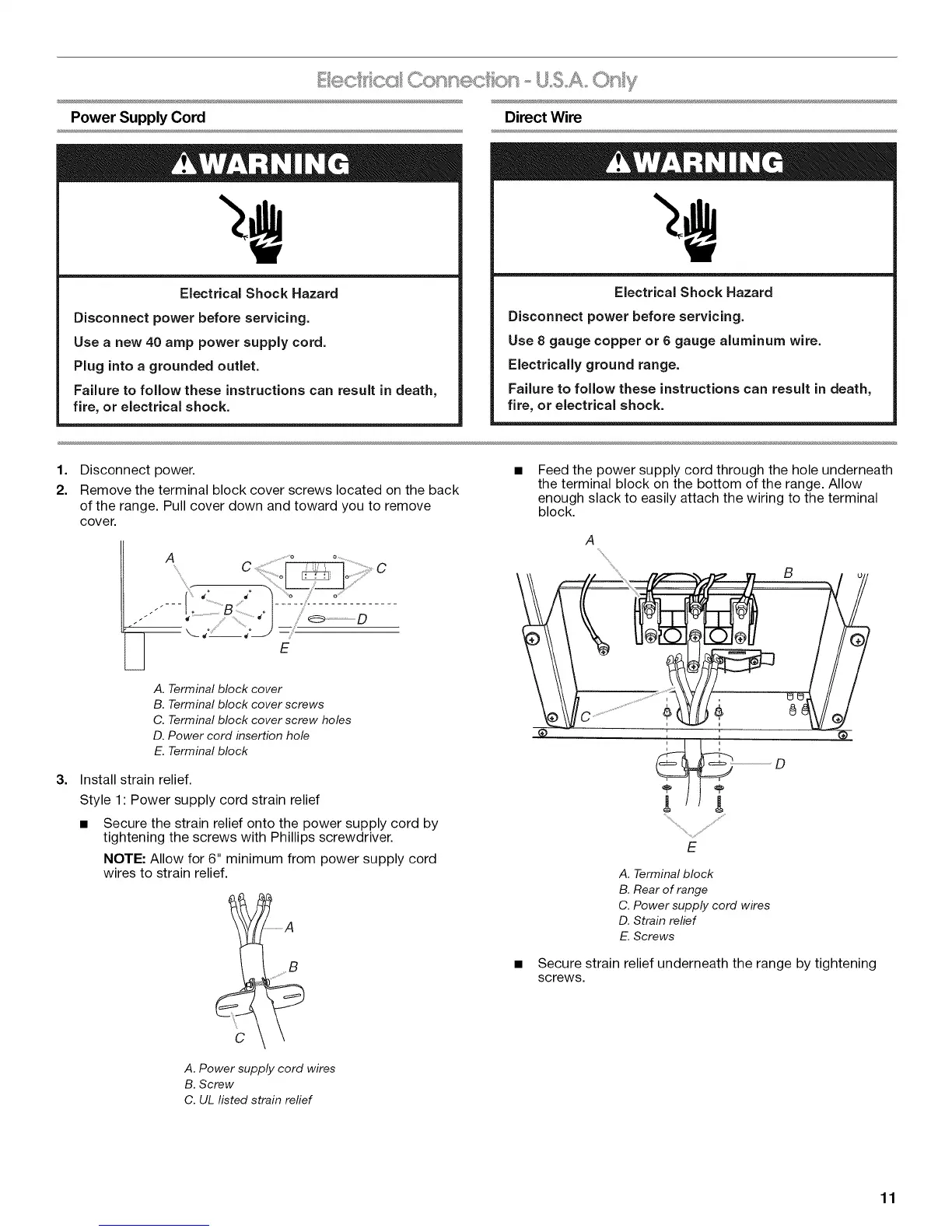

PowerSupplyCord
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Direct Wire
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge aluminum wire.
Electrically ground range.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1=
2.
3.
Disconnect power.
Remove the terminal block cover screws located on the back
of the range. Pull cover down and toward you to remove
cover.
A. Terminalblock cover
B. Terminalblock cover screws
C. Terminalblock cover screw holes
D.Power cord insertion hole
E. Terminalblock
Install strain relief.
Style 1: Power supply cord strain relief
• Secure the strain relief onto the power supply cord by
tightening the screws with Phillips screwdriver.
NOTE: Allow for 6" minimum from power supply cord
wires to strain relief.
.=_l== A
C
A. Power supply cord wires
B. Screw
C. UL listed strain relief
Feed the power supply cord through the hole underneath
the terminal block on the bottom of the range. Allow
enough slack to easily attach the wiring to the terminal
block.
A
i i
................... ,S _'_
E
B
/
@
A. Terminal block
B. Rear of range
C. Power supply cord wires
D. Strain relief
E. Screws
Secure strain relief underneath the range by tightening
screws.
11
