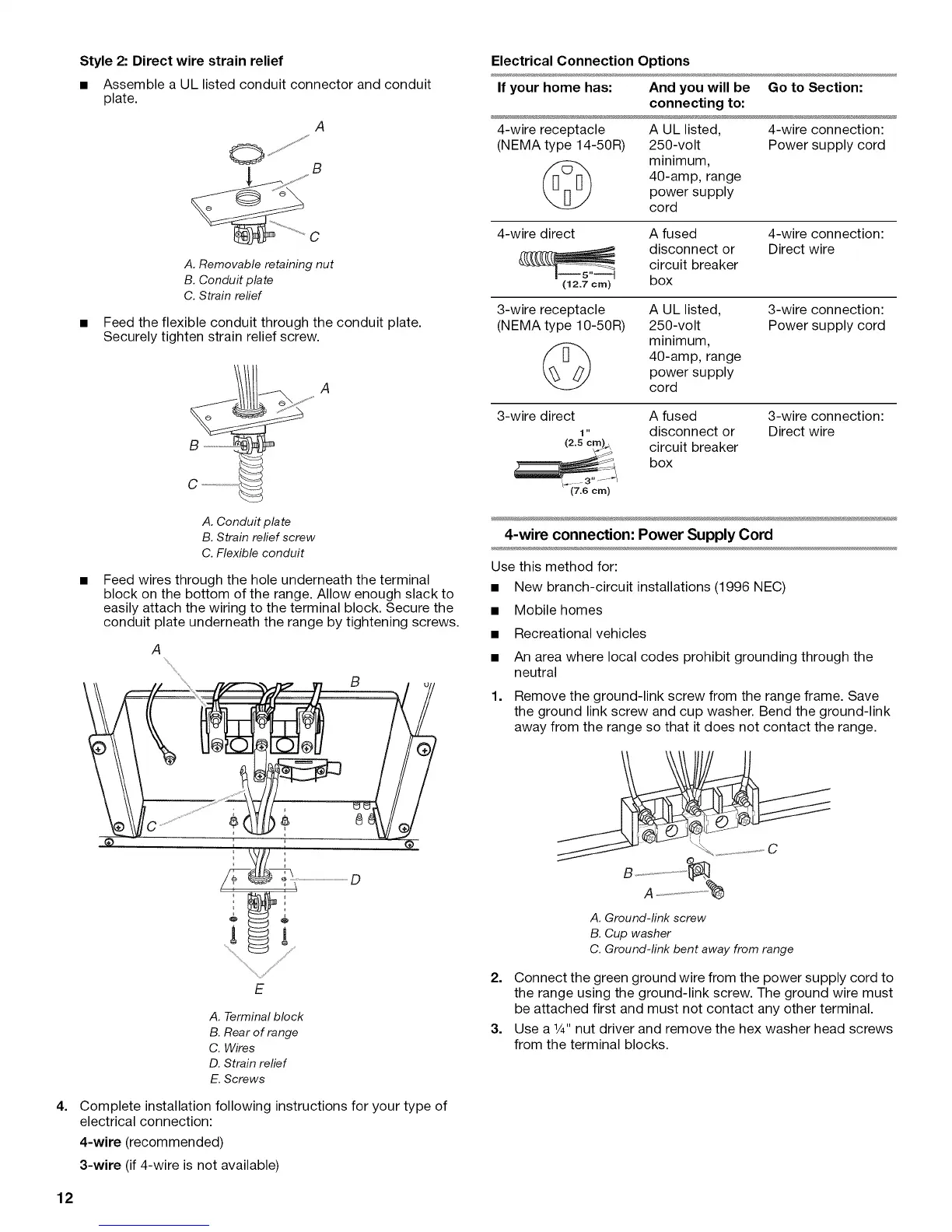

Style 2: Direct wire strain relief
• Assemble a UL listed conduit connector and conduit
plate.
A
A. Removable retaining nut
B. Conduit plate
C. Strain relief
Feed the flexible conduit through the conduit plate.
Securely tighten strain relief screw.
C ......
A. Conduit plate
B. Strain relief screw
C. Flexible conduit
Feed wires through the hole underneath the terminal
block on the bottom of the range. Allow enough slack to
easily attach the wiring to the terminal block. Secure the
conduit plate underneath the range by tightening screws.
A
\
@
B
T
E
/
A. Terminal block
B. Rear of range
C. Wires
D. Strain relief
E. Screws
Electrical Connection Options
If your home has: And you will be Go to Section:
connecting to:
4-wire receptacle A UL listed, 4-wire connection:
(NEMA type 14-50R) 250-volt Power supply cord
minimum,
40-amp, range
power supply
cord
4-wire direct A fused 4-wire connection:
disconnect or Direct wire
circuit breaker
(12.7 cm) box
3-wire receptacle A UL listed,
(NEMA type 10-50R) 250-volt
minimum,
_._ 40-amp, range
power supply
cord
3-wire connection:
Power supply cord
3-wire direct A fused 3-wire connection:
1" disconnect or Direct wire
circuit breaker
box
4-wire connection: Power Supply Cord
Use this method for:
• New branch-circuit installations (1996 NEC)
• Mobile homes
• Recreational vehicles
• An area where local codes prohibit grounding through the
neutral
1. Remove the ground-link screw from the range frame. Save
the ground link screw and cup washer. Bend the ground-link
away from the range so that it does not contact the range.
A. Ground-link screw
B. Cup washer
C. Ground-link bent away from range
2. Connect the green ground wire from the power supply cord to
the range using the ground-link screw. The ground wire must
be attached first and must not contact any other terminal.
3. Use a %" nut driver and remove the hex washer head screws
from the terminal blocks.
4=
Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
12
To Next Page
