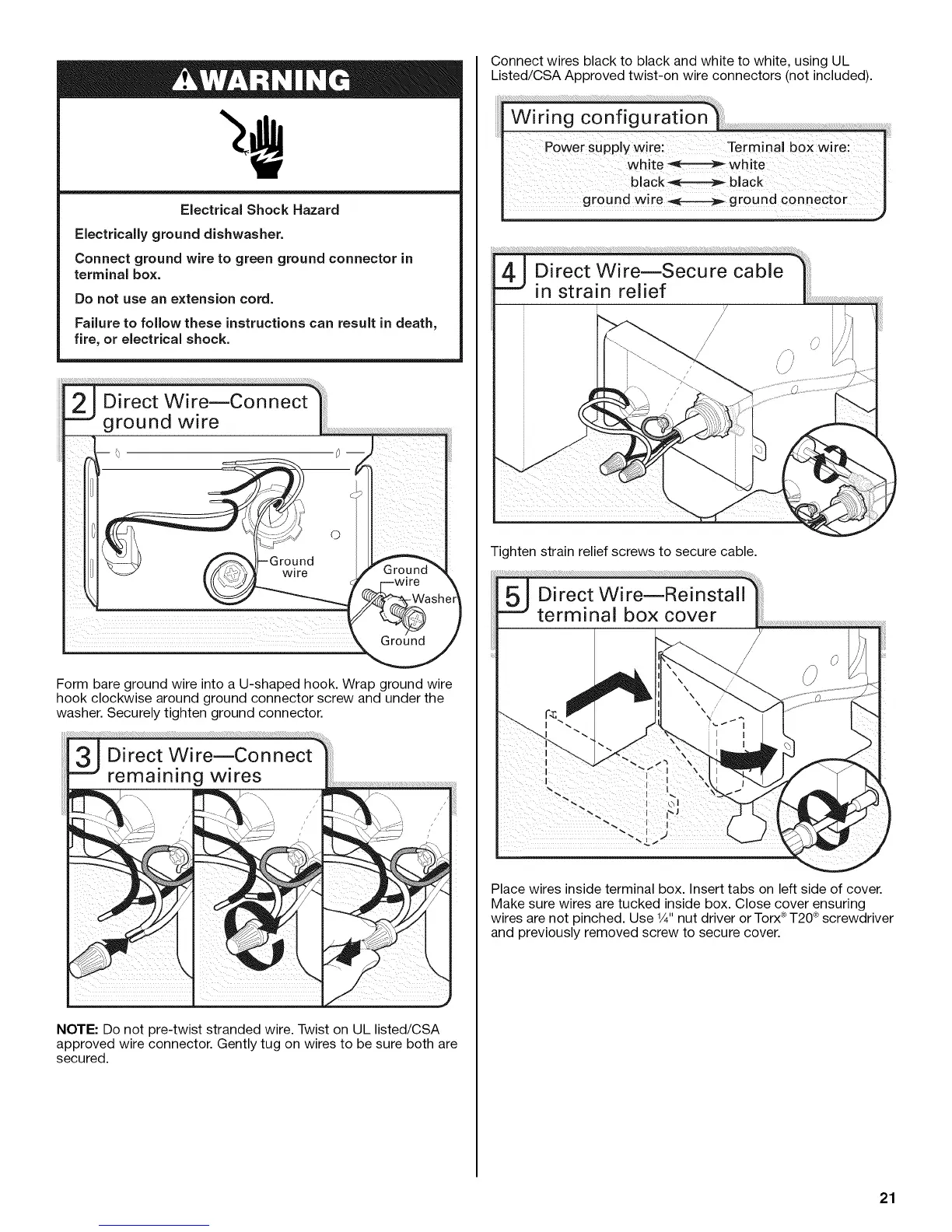

Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Ground
e
)
Form bare ground wire into a U-shaped hook. Wrap ground wire
hook clockwise around ground connector screw and under the
washer. Securely tighten ground connector.
NOTE: Do not pre-twist stranded wire. Twist on UL listed/CSA
approved wire connector. Gently tug on wires to be sure both are
secured.
Connect wires black to black and white to white, using UL
Listed/CSA Approved twist-on wire connectors (not included).
Tighten strain relief screws to secure cable.
-'-" terminal box cover L
Place wires inside terminal box. Insert tabs on left side of cover.
Make sure wires are tucked inside box. Close cover ensuring
wires are not pinched. Use 1/4"nut driver or Torx®T20®screwdriver
and previously removed screw to secure cover.
21
