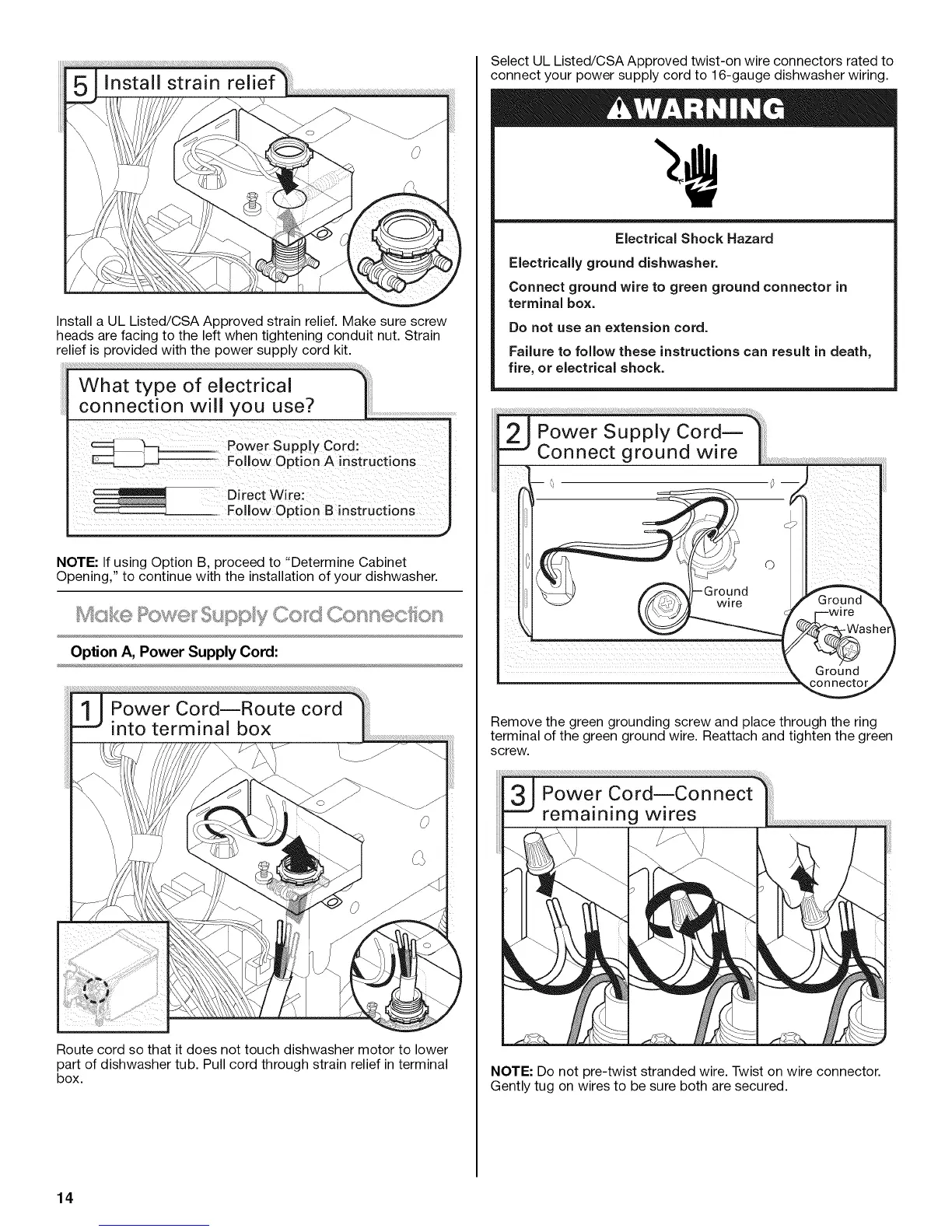

Install a UL Listed/CSA Approved strain relief. Make sure screw
heads are facing to the left when tightening conduit nut. Strain
relief is provided with the power supply cord kit.
What type of electrical
connection will you use?
Power Supply Cord:
Folow Option A instructions
Direct Wire:
Folow Option B instructions
NOTE: If using Option B. proceed to "Determine Cabinet
Opening," to continue with the installation of your dishwasher.
_;_uppy Co_!'d ' """ '+
Option A, Power Supply Cord:
Route cord so that it does not touch dishwasher motor to lower
part of dishwasher tub. Pull cord through strain relief in terminal
box.
)
Select UL Listed/CSA Approved twist-on wire connectors rated to
connect your power supply cord to 16-gauge dishwasher wiring.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to folow these instructions can result in death,
fire, or electrical shock.
Remove the green grounding screw and place through the ring
terminal of the green ground wire. Reattach and tighten the green
screw.
NOTE: Do not pre-twist stranded wire. Twist on wire connector.
Gently tug on wires to be sure both are secured.
14
