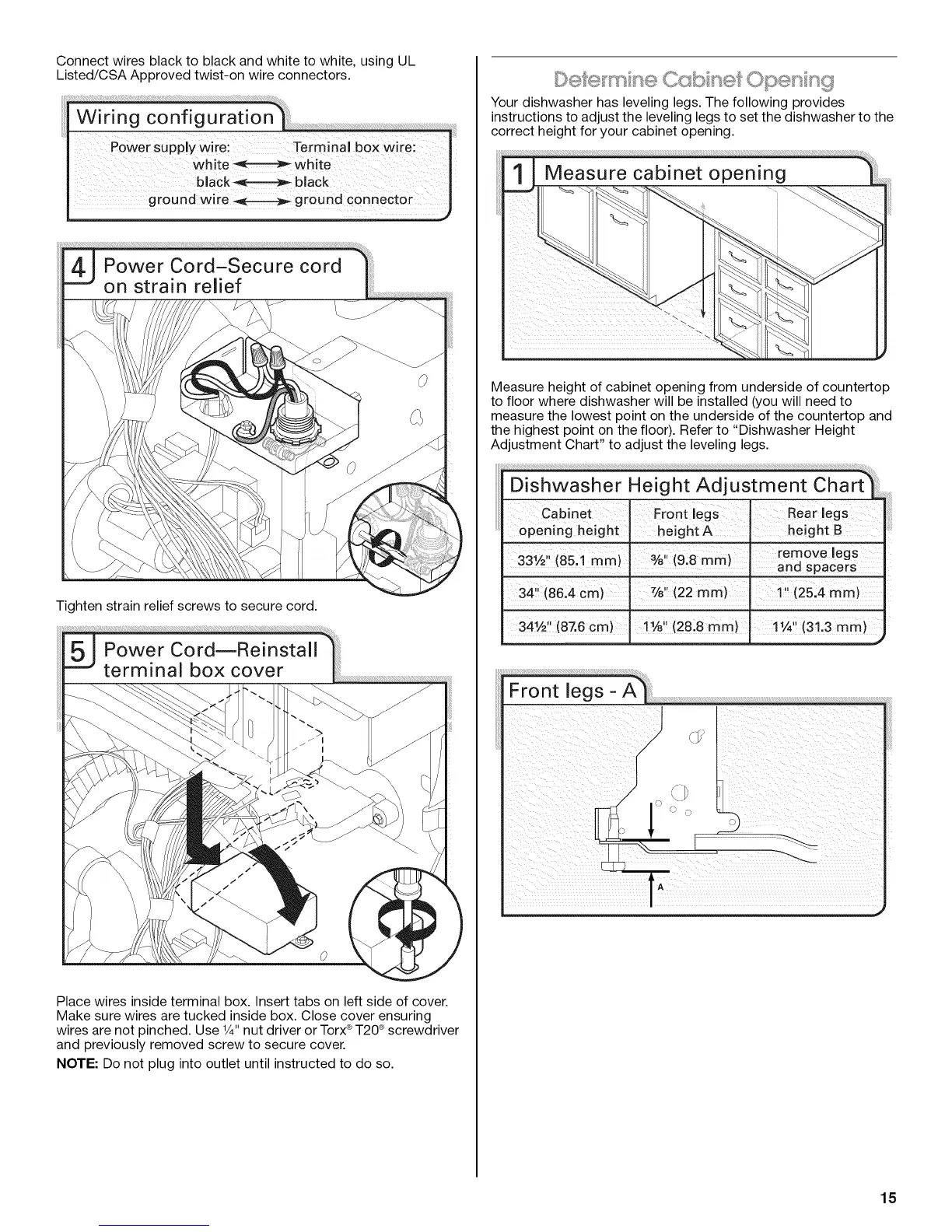

Connect wires black to black and white to white, using UL
Listed/CSA Approved twist-on wire connectors.
g g
Tighten strain relief screws to secure cord.
Place wires inside terminal box. Insert tabs on left side of cover.
Make sure wires are tucked inside box. Close cover ensuring
wires are not pinched. Use 1/4"nut driver or Torx®T20®screwdriver
and previously removed screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
Your dishwasher has leveling legs. The following provides
instructions to adjust the leveling legs to set the dishwasher to the
correct height for your cabinet opening.
Measure height of cabinet opening from underside of countertop
to floor where dishwasher will be installed (you will need to
measure the lowest point on the underside of the countertop and
the highest point on the floor). Refer to "Dishwasher Height
Adjustment Chart" to adjust the leveling legs.
Dishwasher Height Adjustment Chart _
opening height height A , height B
_.,_/.,, ;_,-,, ; i9 J remove legs
_y2 !_,)mm! ! m I and spaCers
34v2 (87.6cm) ' IV8 (28.8mm) 1v4'!(31.3mm)
15
