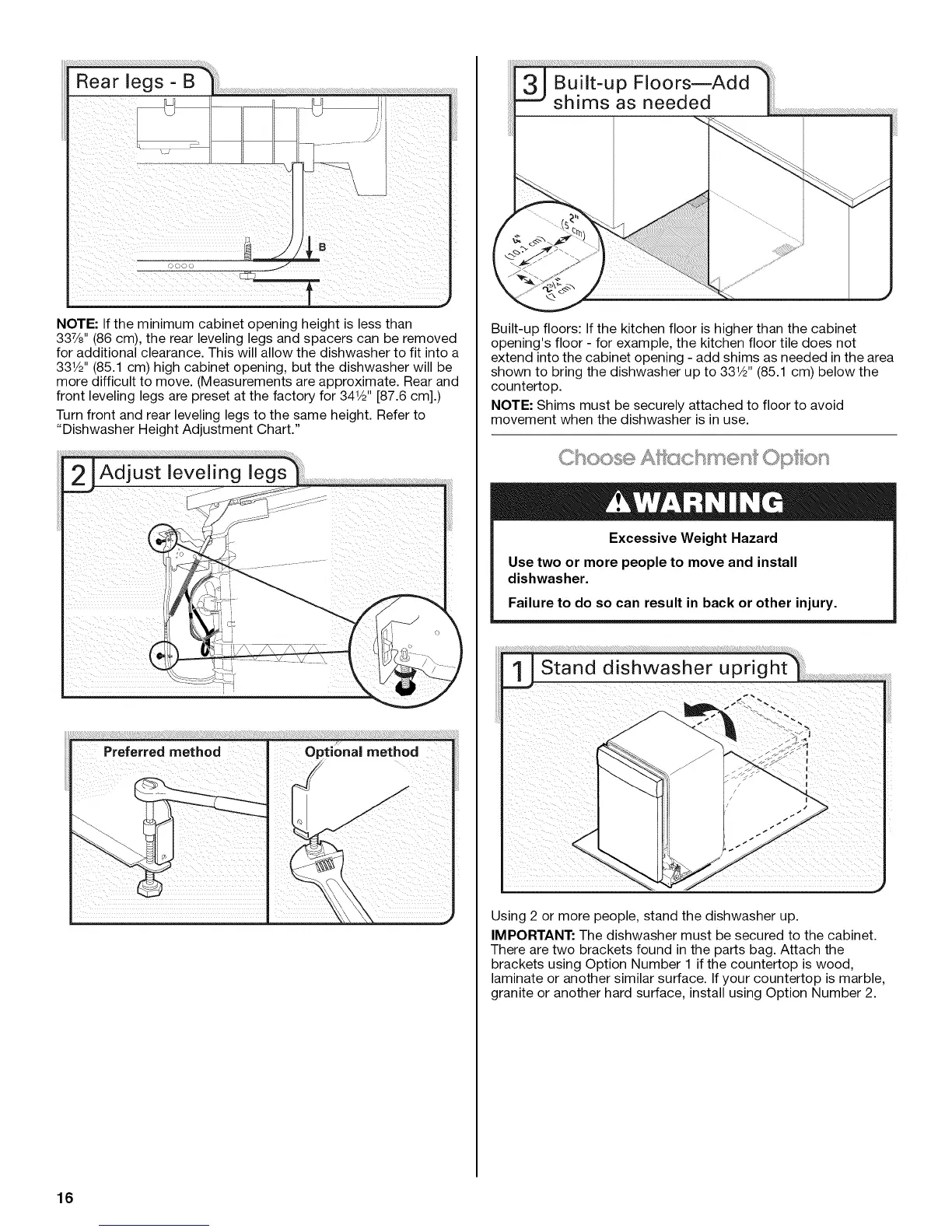

NOTE: If the minimum cabinet opening height is less than
337/8'' (86 cm), the rear leveling legs and spacers can be removed
for additional clearance. This will allow the dishwasher to fit into a
331/2'' (85.1 cm) high cabinet opening, but the dishwasher will be
more difficult to move. (Measurements are approximate. Rear and
front leveling legs are preset at the factory for 341/2"[87.6 cm].)
Turn front and rear leveling legs to the same height. Refer to
"Dishwasher Height Adjustment Chart."
Adjust leveling legs
Preferred method
Built-up floors: If the kitchen floor is higher than the cabinet
opening's floor - for example, the kitchen floor tile does not
extend into the cabinet opening - add shims as needed in the area
shown to bring the dishwasher up to 331/2"(85.1 cm) below the
countertop.
NOTE: Shims must be securely attached to floor to avoid
movement when the dishwasher is in use.
Ch_s_,_,,_ D, _#'_:__-h_'w_s_<_0_71 0_/_,
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Using 2 or more people, stand the dishwasher up.
IMPORTANT: The dishwasher must be secured to the cabinet.
There are two brackets found in the parts bag. Attach the
brackets using Option Number 1 if the countertop is wood,
laminate or another similar surface. Ifyour countertop is marble,
granite or another hard surface, install using Option Number 2.
16
