J

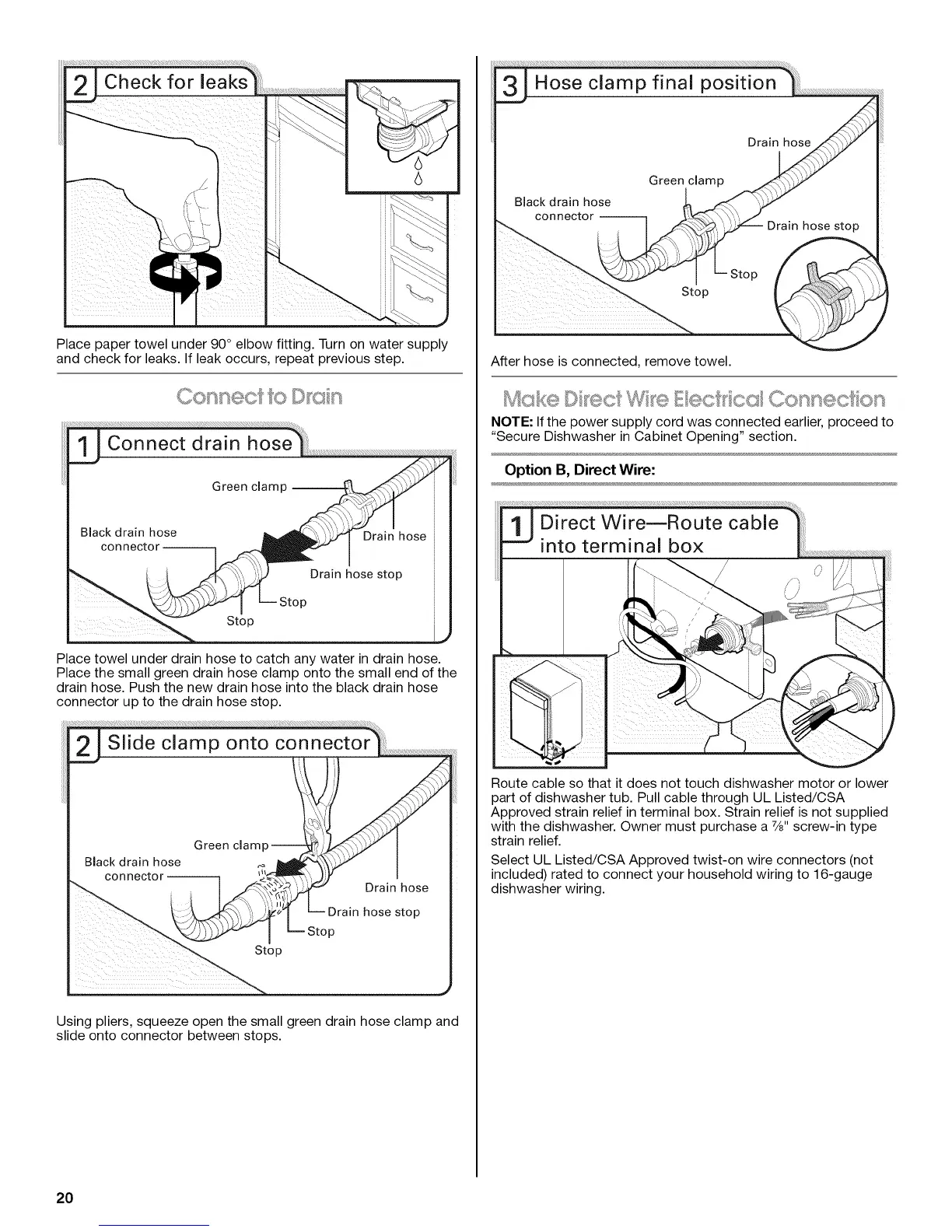

Place paper towel under 90° elbow fitting. Turn on water supply
and check for leaks. If leak occurs, repeat previous step.
Stop
Place towel under drain hose to catch any water in drain hose.
Place the small green drain hose clamp onto the small end of the
drain hose. Push the new drain hose into the black drain hose
connector up to the drain hose stop.
Using pliers, squeeze open the small green drain hose clamp and
slide onto connector between stops.
After hose is connected, remove towel.
NOTE: If the power supply cord was connected earlier, proceed to
"Secure Dishwasher in Cabinet Opening" section.
Option B, Direct Wire:
Route cable so that it does not touch dishwasher motor or lower
part of dishwasher tub. Pull cable through UL Listed/CSA
Approved strain relief in terminal box. Strain relief is not supplied
with the dishwasher. Owner must purchase a 7/8"screw-in type
strain relief.
Select UL Listed/CSA Approved twist-on wire connectors (not
included) rated to connect your household wiring to 16-gauge
dishwasher wiring.
20
