• Repeat test. If bubbles form again, do not
use the barbecue. Please contact your
local dealer for assistance.
GAS AND REGULATOR
• This barbecue can use either propane or
butane LPG bottled gas. If using butane
you must change the regulator.
• Propane cylinders will supply gas all year
round, even on cold winter days.
• Butanecylinderswillsupplysufcientgas
in summer. Butane gas must not be used
in colder temperatures. Contact your local
gas supplier for advice.
• The cylinder should be positioned
underneath the main barbecue body and
stored upright.
• Gas cylinders should never be stored or
laid on their side.
User Instructions
Before assembling your barbecue, remove
all protective packaging from each part.
The gas cylinder must have a connection
compatible with the regulator supplied with
the barbecue and have a minimum capacity
of 4kg / 9lbs.
Do not store a spare LP gas cylinder under
or near this appliance.
Neverllthecylinderbeyond80%full.
Failure to follow these instructions exactly
mayresultinrecausingseriousinjuryor
death.
Place dust cap on cylinder valve outlet
whenever the cylinder is not in use. Only
install the type of dust cap on the cylinder
valve outlet that is provided with the
cylinder valve. Other types of caps or plugs
may result in leakage of propane.
Connecting to the Cylinder
• Conrmallbarbecuecontrolknobsarein
the ‘OFF’ position.
• Connect the regulator to the gas cylinder,
tighten it securely and proceed according
to instructions below and the instructions
from the gas cylinder supplier.
Pressure Regulator Kit with Hose Intended
forLPGas-Type698
Technical specications:
Inlet pressure: 0.3-16 bar
Outlet pressure: 2.75 KPa
Guaranteedowcapacity:2kg/h
Inlet:.880P.O.L.
Outlet:5/8"18UNForG1/4LEFT
Regulatorclassication:Type"A"

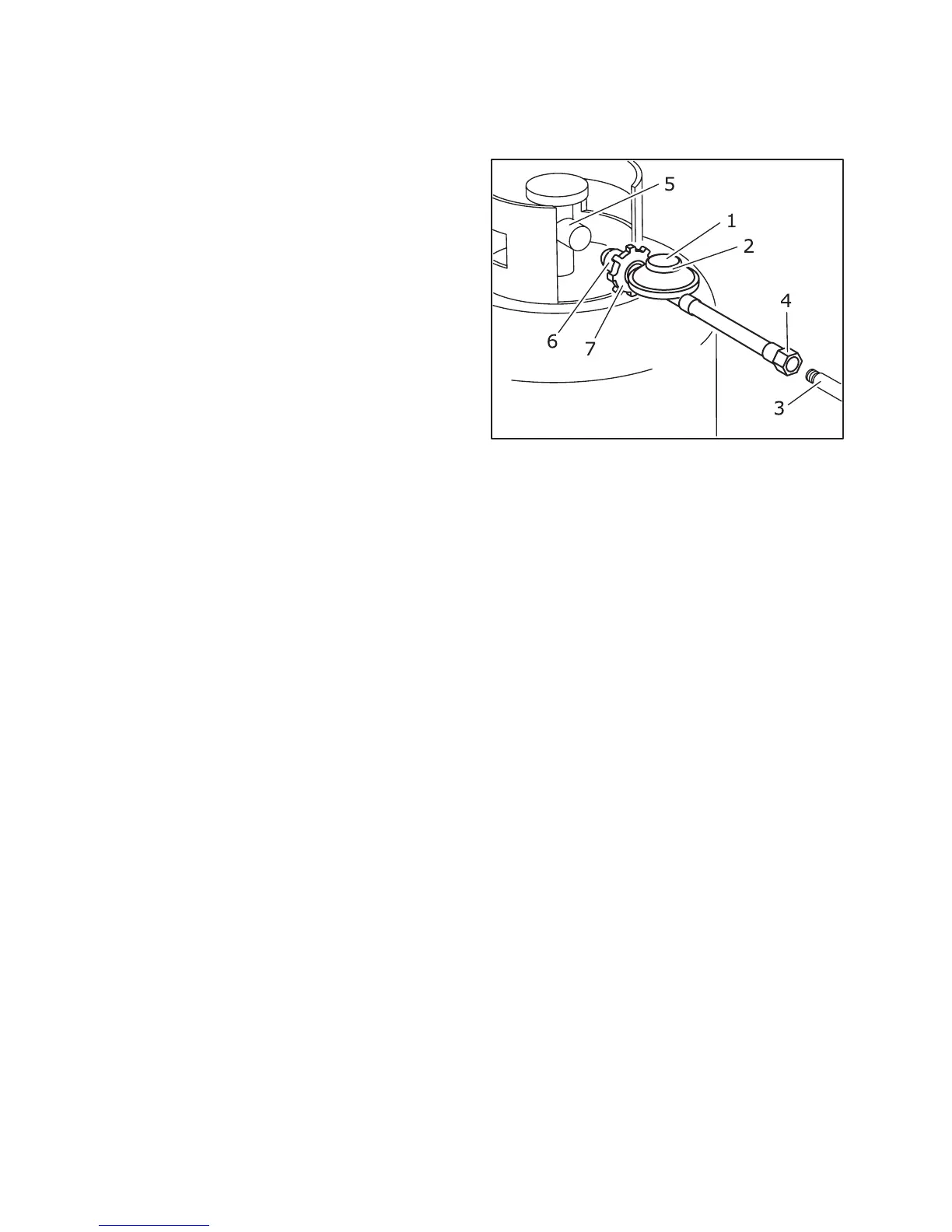

1. Use and typical installation
• This gas pressure regulator kit with hose
is designed for use with devices with
anoperatingpressureof2,8KPaanda
requiredowratenogreaterthan(2kg/h).
Both values are clearly labelled on the
regulatoritself(1).
• Intended use for this gas pressure
regulator kit with hose, is for auxiliary
heating systems, LP gas heaters, and gas
grills.
• This device can be used outdoors, but the
pressure regulator must then be covered
and protected from moisture so that the
outlet(2)iskeptdryandprotected.When
used outdoors, the pressure regulator
cover must be face-down.
• To ensure optimum performance, the
regulator outlet should not be blocked or
obstructed in any way.
• Never remove the gas cylinder during use.
2. Mounting pressure regulator kit
with hose
A) On the device
• Ensurethatallvalvesonthedevice(3)
are closed .
• Attachtheendofthehose(4)tothegas
intake on the device: the intake should
have the correct connection.
