10
2. Use UL listed wire connectors and connect white wires (A)
together.
3. Use UL listed wire connectors and connect black wires (B)
together.
4. Connect green (or bare) ground wire from power supply to
green ground screw in terminal box and securely tighten.
5. Install terminal box cover.
6. Reconnect power.
Complete Installation
1. Install the 75W (max.) Incandescent light bulb. See
“Replacing the Incandescent Light Bulb” in the “Range Hood
Care” section.
2. Replace grease filter if removed. See the “Range Hood Care”
section.
3. Check the operation of the range hood fan and light. See
“Range Hood Use” section.
If range hood does not operate, check to see whether a
circuit breaker has tripped or a household fuse has blown.
Disconnect power and check wiring connections.
NOTE: To get the most efficient use from your new range hood,
read the “Range Hood Use” section.
RANGE HOOD USE
The range hood is designed to remove smoke, cooking vapors
and odors from the cooktop area. For best results, start the hood
before cooking and allow it to operate several minutes after the
cooking is complete to clear all smoke and odors from the
kitchen.
The hood controls are located on the top of the range hood.
Range Hood Controls
Operating the light
Push the light switch to the right to turn the light Off. Push the
light switch to the left to the turn the light On.
Operating the fan
Push the fan switch to the left for Low speed. Push the fan switch
to the right for High speed. Push the fan switch to the middle for
Off.
RANGE HOOD CARE
Cleaning
IMPORTANT: Clean the hood and grease filters frequently
according to the following instructions. Replace grease filter
before operating hood.
Exterior Surfaces:
IMPORTANT: Do not use soap-filled scouring pads, abrasive
cleaners, Cooktop Polishing Creme, steel wool, gritty washcloths
or paper towels.
Cleaning Method:
■ Rub in direction of grain to avoid scratching or damaging the
surface.
■ Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
■ Glass cleaner to remove fingerprints.
Metal Grease Filter
1. Remove screw from the grease filter retainer.
2. Turn the grease filter retainer to release filter.
3. Wash metal filters as needed in dishwasher or hot detergent
solution.
4. Reinstall the filter by placing the back edge in the channel at
rear of hood. Push filter into place, turn the filter retainer to
secure filter to range hood.
5. Replace screw in the grease filter retainer.

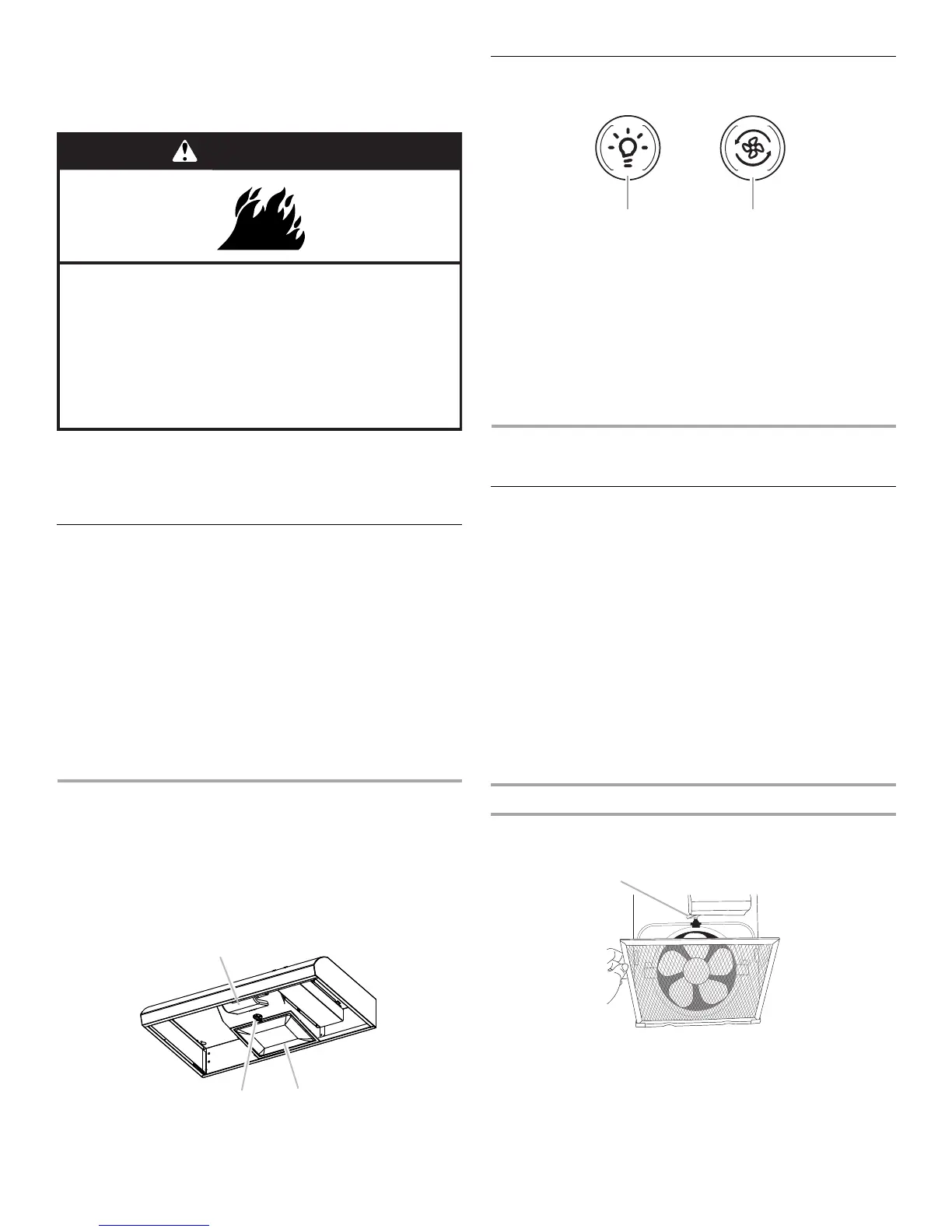

A. Incandescent light housing and cover
B. Filter retainer
C. Grease filter
WARNING
Fire Hazard
Electrically ground the blower.
Use copper wire.
Connect ground wire to green ground screw in
terminal box.
Failure to do so can result in death, fire, or
electrical shock.
A. On/Off light switch
B. Fan speed switch
A. Filter retainer
