IKEA LUFTIG Installation Instructions And Use & Care Guide

8

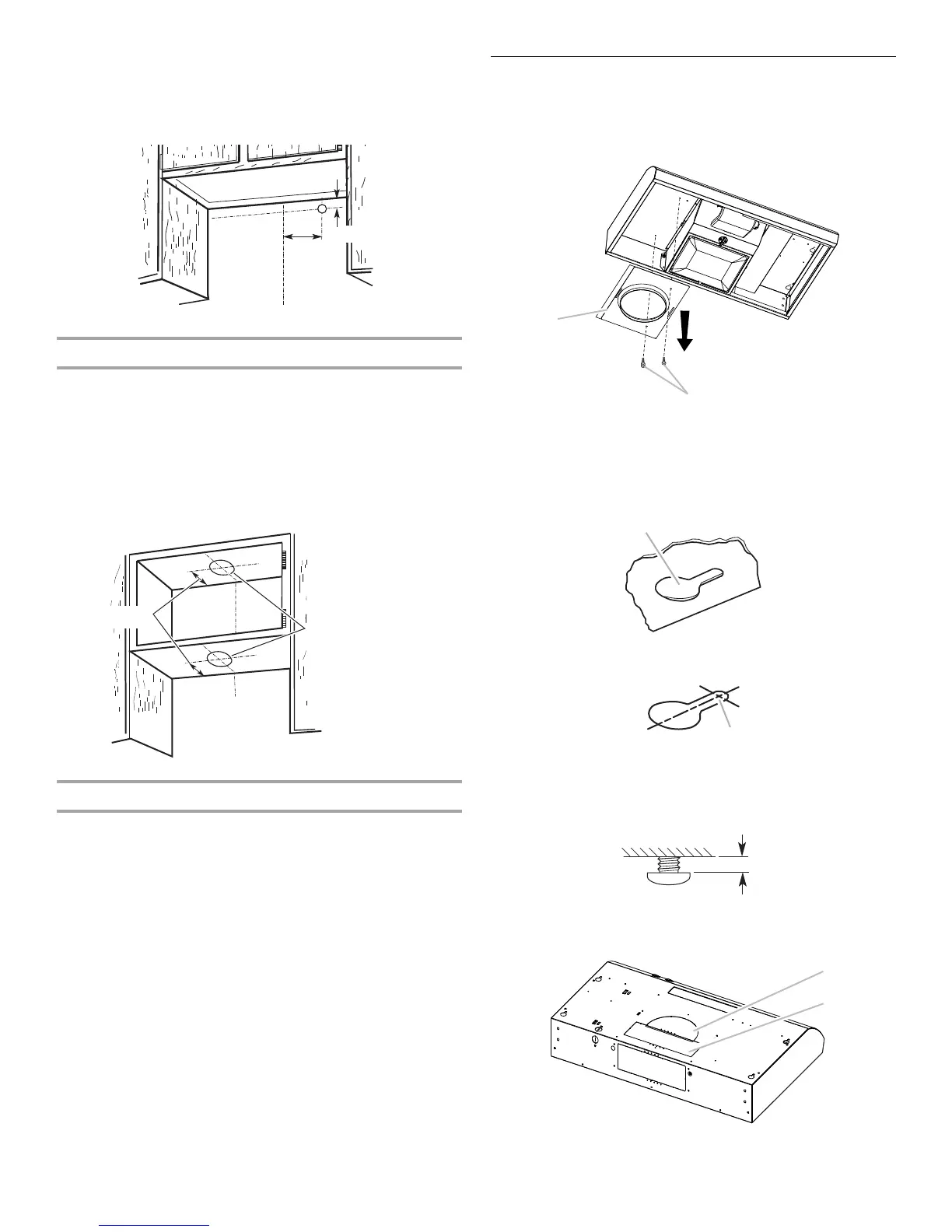

To wire through wall:
1. Mark a line 8 ³⁄₈ " (21.3 cm) from the right of the centerline on
the underside of the wall. Mark the point on this line that is
⁷⁄₈ "
(2.2 cm) from the underside of the cabinet. Drill a 1
¹⁄₄ " (3.2 cm)
diameter hole through the rear wall at this point.
Cut Openings for 7" (17.8 cm) Round Vent
To make a circular vent openings on the underside of the
cabinet top and bottom:
1. Mark a centerline on the underside of the top of cabinet.
2. Mark a line 5" (12.7 cm) from the back wall on the underside
of the top and bottom of cabinet.
3. Use a compass or a circle template to draw a circle with a
diameter that is ¼" (0.64 cm) larger than the vent.
4. Use saber or keyhole saw to cut the circular vent opening.
Install Vent System
1. Install vent through the vent opening in upper cabinet or wall.
Complete venting system according to the selected venting
method. See “Venting Requirements” section.
2. Use caulking to seal exterior wall or roof opening around the
cap.
Install Range Hood
NOTE: Your model will have a 7" (17.8 cm) round vent mounting
plate on the inside of your range hood.
1. Remove the 7" (17.8 cm) round vent mounting plate attached
with screws on the inside of your range hood.
2. Lift the range hood up under cabinet and determine final
location by centering beneath cabinet. Mark on the underside
of cabinet the location of the 4 keyhole mounting slots on the
range hood. Set range hood aside on a covered surface.
3. Use ¹⁄₈" (3 mm) drill bit and drill 4 pilot holes as shown.
4. Install the 4 - 4.5 mm x 13 mm mounting screws in pilot
holes. Leave about ¹⁄₄" (6.4 mm) space between screw heads
and cabinet to slide range hood into place.
5. Remove top rectangular and round vent knockouts.
Centerline
⁷⁄₈" (2.2 cm)
8³⁄₈"
(21.3 cm)
7 ¹/₄" (18.4 cm) diam.
c
abinet cutouts
*From wall, not
cabinet frame
*5"
(12.7 cm)
A. 7" (17.8 cm) round vent mounting plate
B. Screws
A. Keyhole slot
A. Drill pilot hole.
A. Round vent knockout
B. Top rectangular vent knockout
A
B
A
A
¹⁄₄"
(6.4 mm)
A
B

IKEA LUFTIG Specifications

General

Width	60 cm
Voltage	220-240V
Number of grease filters	1
Light bulb included	Yes
Bulb type	LED
Material	Stainless steel
Frequency	50 Hz
Type	Wall-mounted
Filter type	Grease
