IKEA UTNAMND - Electrical Connection Details; Home Side Connection Diagrams

10 ENGLISH
Electrical connection
WARNING: All electrical connections
must be carried out by an authorised
installer.
• Before making the connections, check
that the rated voltage of the appliance
indicated on the rating plate corresponds
to the mains power supply. The rating
QMBUFJTBԔYFEUPUIF VOEFSTJEFPG UIF
hob.
• Only use original components supplied
by the spare parts service.
• The appliance is not equipped with a
network cable. Purchase the correct one
from a specialist dealer.
• If the cables are damaged, replace with
original spare parts cables. Contact the
call center of your IKEA store.
Caution! Do not solder any of the
cables!
Electrical connection
• Follow the connection diagram (on the under
side of the product).
• This appliance has a Y-type connection and
requires a mains cable H05V2V2-F. Cable
needs mandatory sleeves. According to IEC
SFHVMBUJPOTVTFGPSPOFQIBTFDPOOFDUJPO
mains cable 3 x 4 mm², for two-phase
DPOOFDUJPONBJOTDBCMFצYפקNNr
 &YUFSOBMDBCMFEJBNFUFSNJOתNNNBY
12 mm. Please respect specific national
regulations in the first priority.
• The connection terminals can be accessed by
removing the junction box cover.
• Check that the domestic power supply
characteristics (voltage, maximum power
and current) are compatible with those of the
appliance.
• Connect the appliance as shown in the
diagram (in compliance with reference
standards in force nationally for mains
voltage).

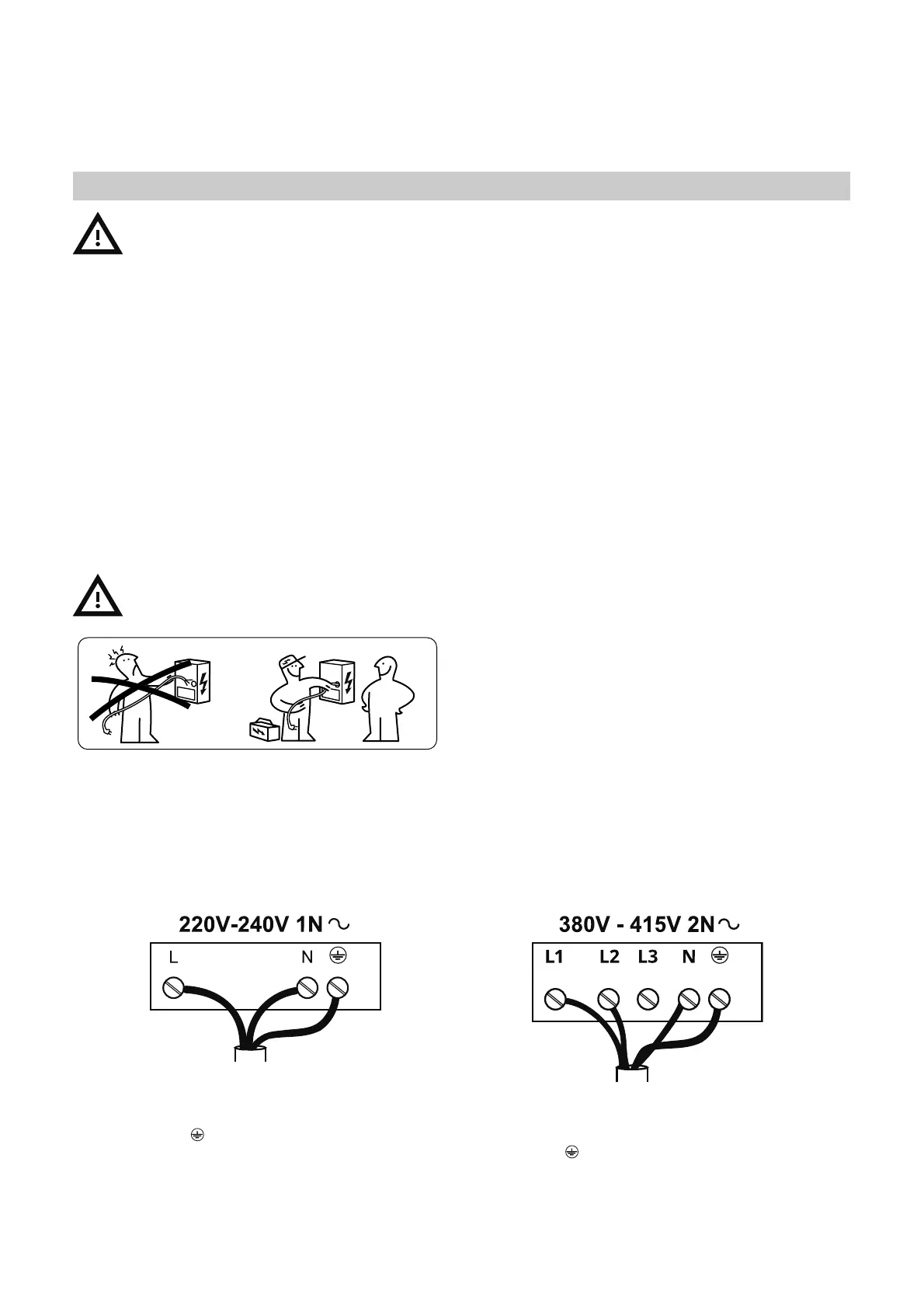

Connection diagram home side
L = Black
N = Blue
= Yellow / Green
L1 = Brown
L2 = Black
N = Blue
= Yellow / Green
