22

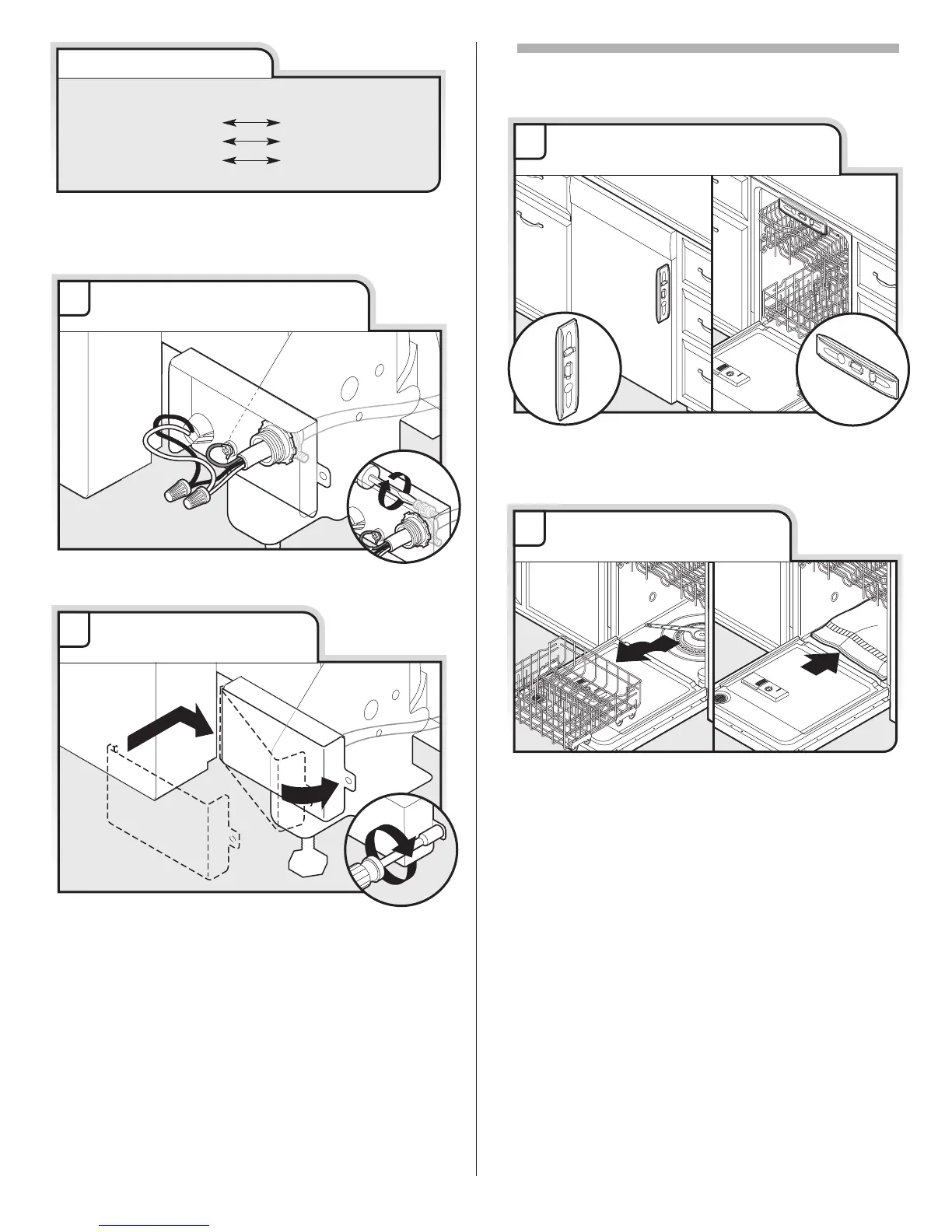

Secure Dishwasher in Cabinet
Opening
1
Double-check dishwasher
alignment in cabinet opening
Open dishwasher door, remove lower dish rack, and
place towel over pump assembly and lower spray arm of
dishwasher. This will keep screws from falling into pump
area when securing dishwasher to countertop.
Check that dishwasher is still level front-to-back and
side-to-side in cabinet opening.
Remove lower dish rack
and place towel
2
Terminal box wire:
white
black
ground connector
Power supply wire:
white
black
ground wire
Wiring configuration
If needed, see website for animated representation
of this step. Visit
www.ikea.com/electrical under FAQ
tab.
Tighten strain relief screws to secure cable.
Direct Wire—Secure cable
in strain relief
4
Place wires inside terminal box. Insert tabs on left side
of cover. Make sure wires are tucked inside box. Close
cover ensuring wires are not pinched. Use ¹⁄₄" nut driver
and previously removed screw to secure cover.
Direct Wire—Reinstall
terminal box cover
5
To Next Page
