This section is for information that are best collected while at a distance from a pole.

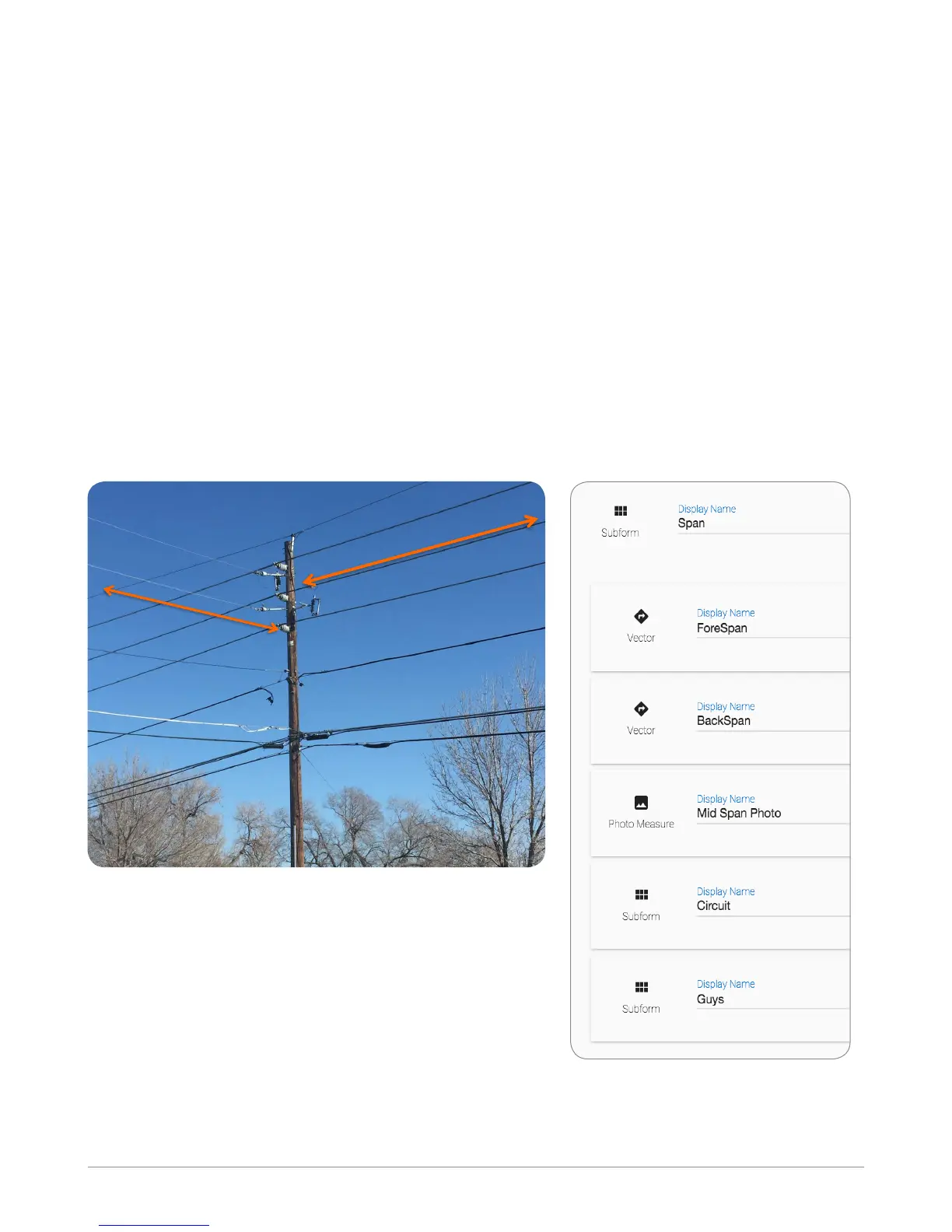

The Span subform is structured to capture relationship among wires attached to a pole:
Span (a subform)
Circuit (a sub-subform under Span)
Wire (a sub-sub-subform under Circuit)
Span
A Span represents one direction which all the wires are running. Since all the wires within
one span have the same length and running angle, we only need to collect Foreward
Span and Backward Span once.
Within one Span, there can be multiple Circuits
and multiple Span Guys. Hence the Span subform
includes a Circuit sub-subform and Guy sub-subform.
SPAN 1
SPAN 2
