IKE 4 User Manual 33
Wire
Within the same Cicuit, wire can have different sizes and attachment heights on the pole.
This subform allows exibility of collecting wires in different congurations.

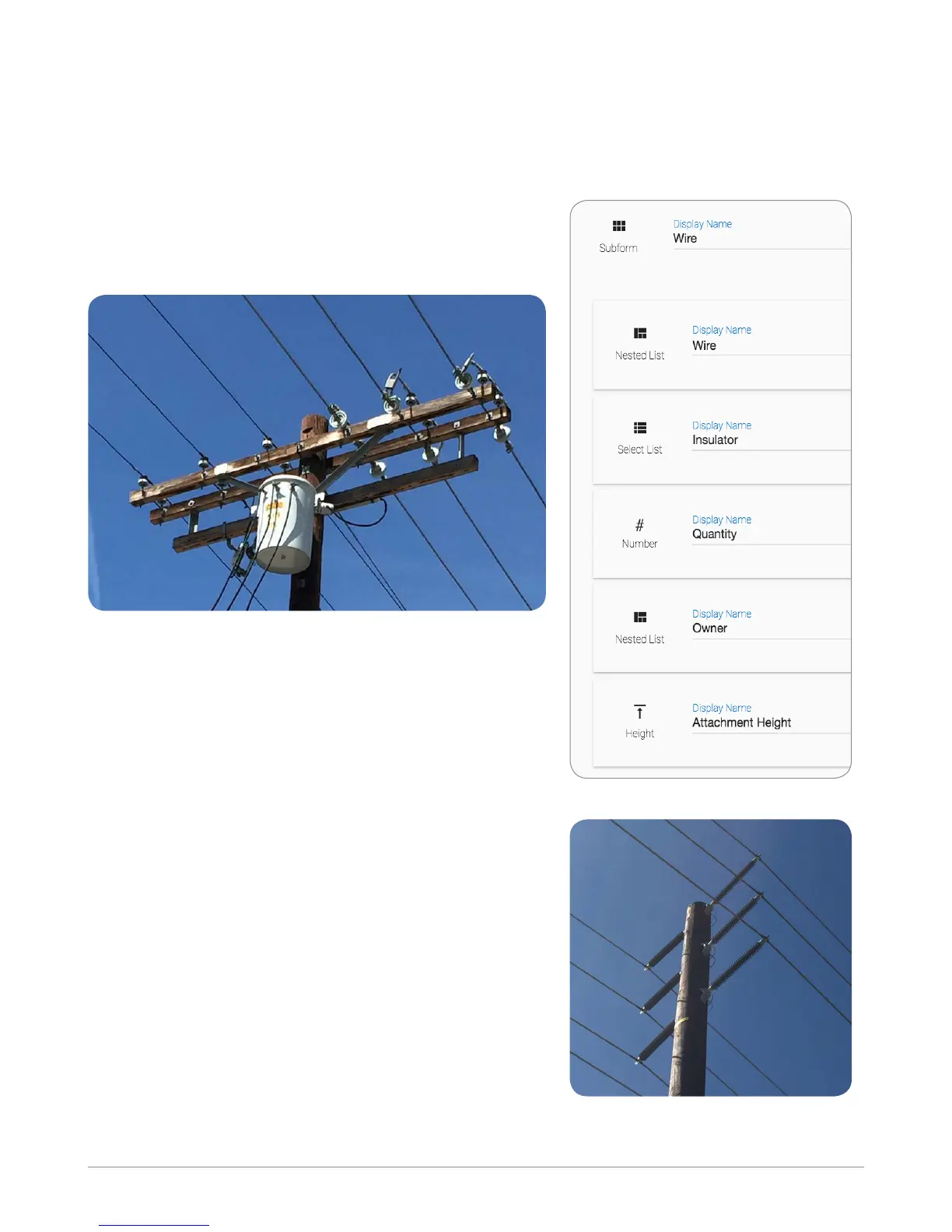

Below is an example of wires of different sizes on the
same cross arm. In this case, this subform allows you
collect two Wires, each with it’s own size and quantity.
The example to the right is a case where wires of
the same size are attached at different heights on
the pole. In this case, the Wire sub form allows you
collect 3 Wires. When the data is uploaded into IKE
Ofce, you can use photo measure to measure the
attachment heights for each Wire.
