GB | Operating Instructions
6

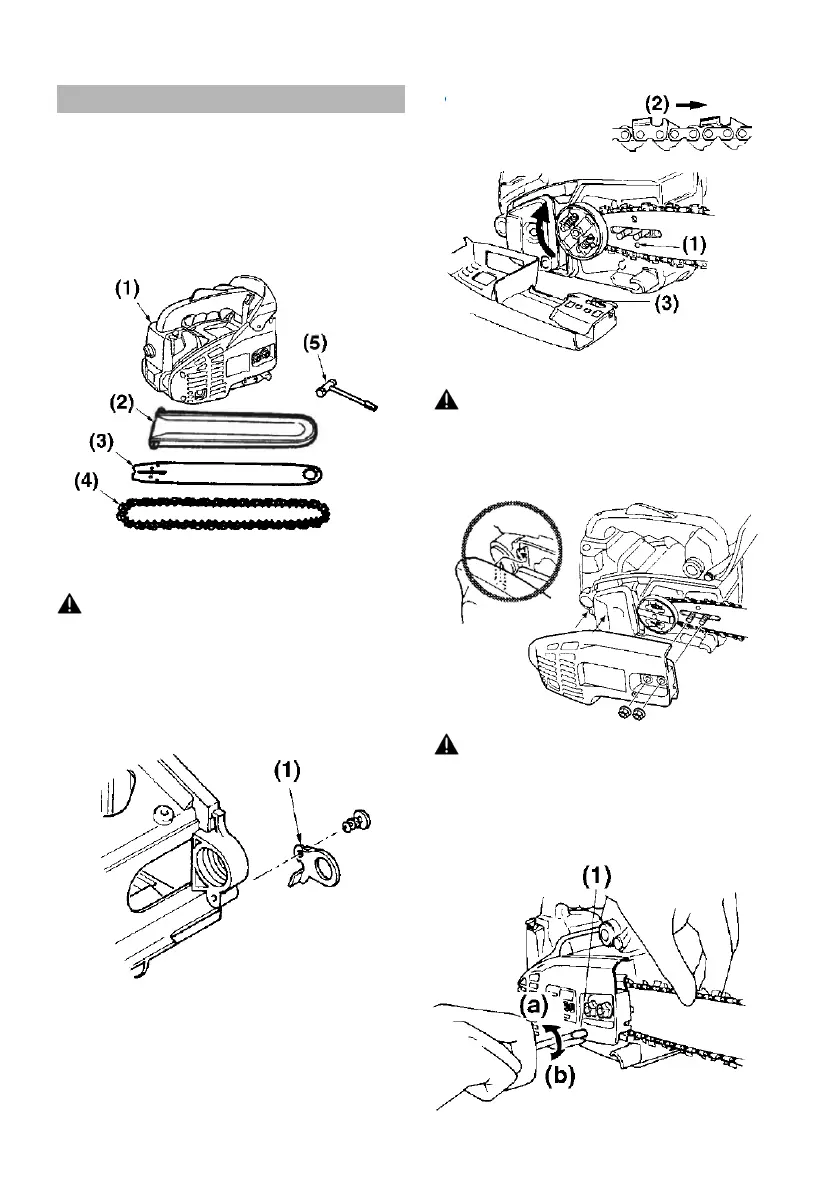

5. Installing guide bar and saw chain
A standard saw unit package contains the items as
shown below:
1) Power unit
2) Bar protector
3) Guide bar
4) Saw chain
5) Plug wrench
Open the box and install the guide bar and the saw chain
on the power unit as follows.
WARNING
The saw chain has very sharp edges. Use protective
gloves for safety.
1. Pull the guard towards the front handle to check that
the chain brake is not on.
2. Loosen a nut and remove the chain cover.
3. Fix the hanger on the rear of power unit by screw.
(1) Hanger
4. Mount the guide bar then t the saw chain around the
bar and sprocket.
(1) Hole
(2) Moving direction
(3) Chain tensioner nut
WARNING
Pay attention to the correct direction of the saw chain.
5. Fit the chain tensioner nut into the lower hole of the
guide bar, then install the chain cover, and fasten the
mounting nut to nger tightness.
WARNING
When installing the chain cover, be sure to t the hook
completely at the rear end of the cover.
6. While holding up the tip of the bar, adjust the chain
tension by turning the tensioner screw until the tie
straps just touch the lower side of the guide bar.
(1) Chain tension adjusting screw
(a) Loosen
(b) Tighten
To Next Page
