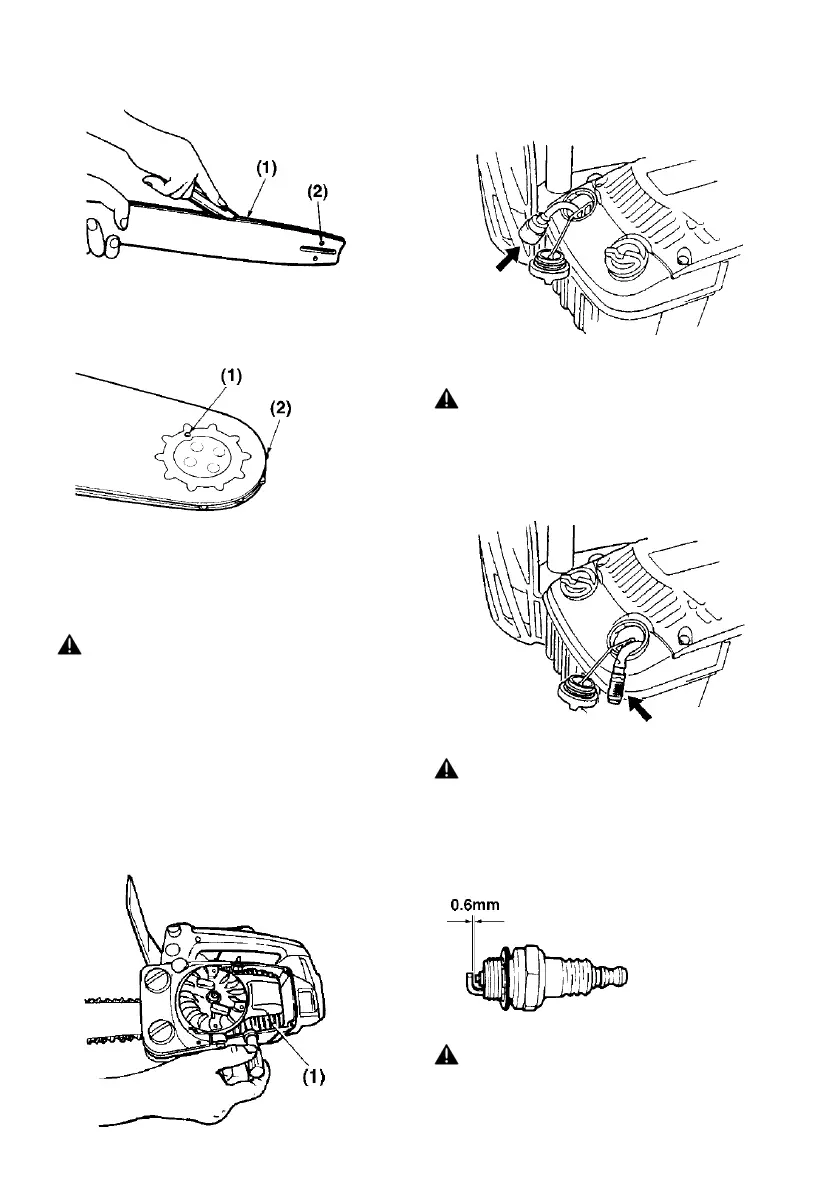

3. Guide bar
(1) Groove
(2) Oiling port
Remove sawdust in the bar groove and the oiling port.
(Type: Sprocket nose)
Grease the nose sprocket from the feeding port on the
tip of the bar.
(1) Grease port
(2) Sprocket
4. Others
Check for fuel leakage and loose fastenings and dam-
age to major parts, especially handle joints and guide
bar mounting. If any defects are found, make sure to
have them repaired before operating again.
WARNING
This saw is equipped with one of the following low
kickback bar/chain combinations:
Part Number
Bar Size Guide Bar Saw Chain
10inch (25cm) 100SDEA041 Oregon 91P
For replacement, use only above bar and chain
Periodical check points
1. Cylinder ns
1. Remove the starter case.
2. Remove sawdust between the cylinder ns.
(1) Cylinder n
2. Fuel lter
1. Using a wire hook, take out the fuel lter from the
feeding port.
2. Wash the lter with gasoline. Replace with new one
if clogged with dirt completely.
WARNING
When returning the lter, use a pinch not to be folded
the suction pipe.
3. Oil tank
1. With a wire hook, take out the oil lter from the feed-
ing port.
2. Wash the lter with gasoline.
WARNING
When returning the lter, use a pinch not to be folded
the suction pipe.
4. Spark plug
Clean the electrodes with a wire brush and reset the gap
to 0.6 mm as necessary.
Spark plug type:
L8RTF / BOSCH
WARNING
After spark plug maintenance, reinstall the plug and plug
cap rmly. (TORQUE: 14.7~17.6 Nm/150~180 kg-cm) Or
it may cause the re accident.
