Trailing Edge Source Controllers
22 of 23

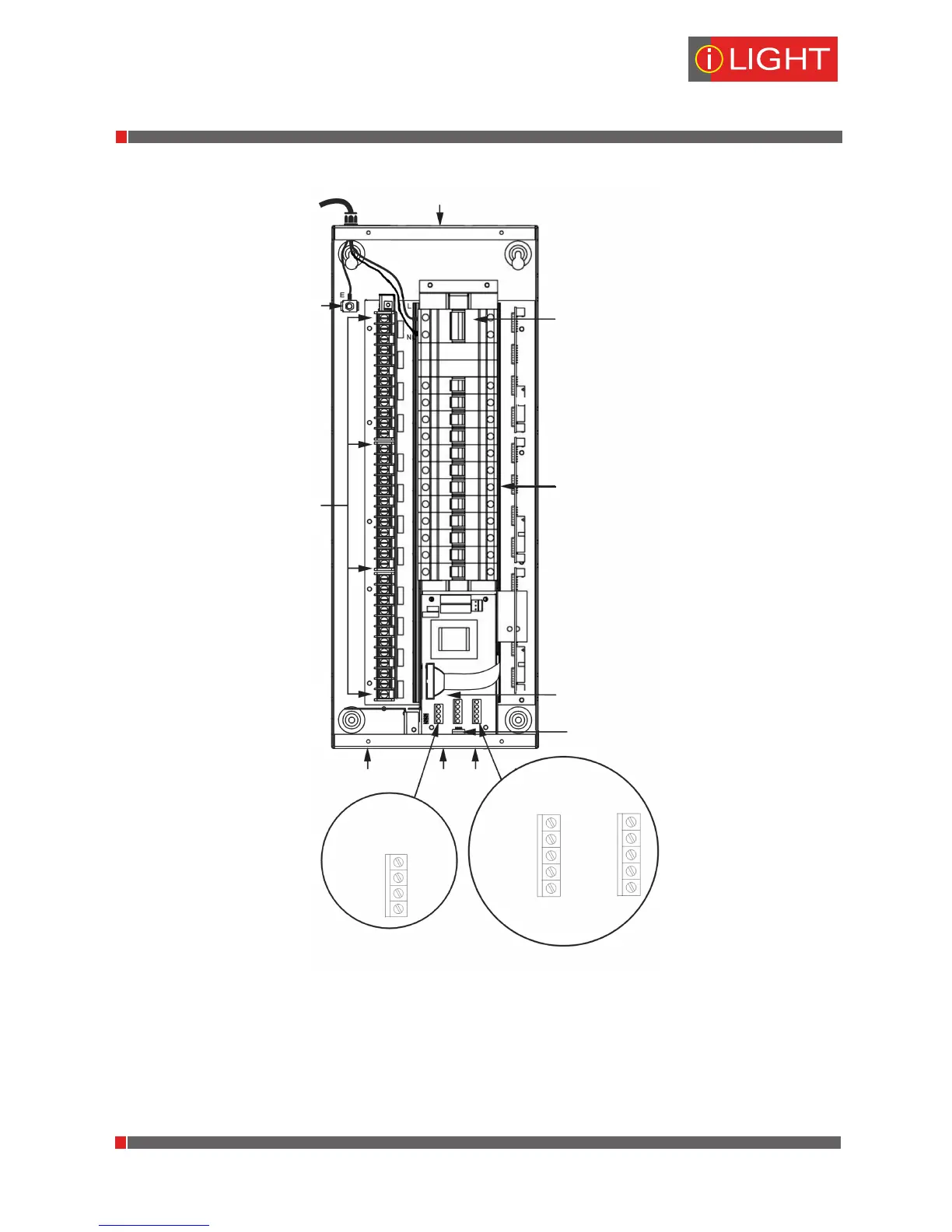

SCT1205S
INTELLIGENT CONTROLS
RS485
RS485
oV
AL
Channel Circuit Breakers
Option Switch
Load Terminals
Supply Earth Terminals
RJ12 iCANnet
Socket
Control Board
+12V
Orange Pair
CAN-H
Blue/White
CAN-L
Blue
0V
Green Pair
SHIELD
Brown Pair
Supply & Load Cable entry knockouts
Control Cable entry knockouts
Service switches
and LEDs
+12V
Orange Pair
CAN-H
Blue/White
CAN-L
Blue
0V
Green Pair
SHIELD
Brown Pair
Isolator
MAINS IN
RS485 & Alarm
Terminals
iCANnet
Terminals
