Network Topology
The Illustra Flex cameras deliver video images and audio in real-time using the Internet and Intranet.
It is equipped with an Ethernet RJ-45 network interface.

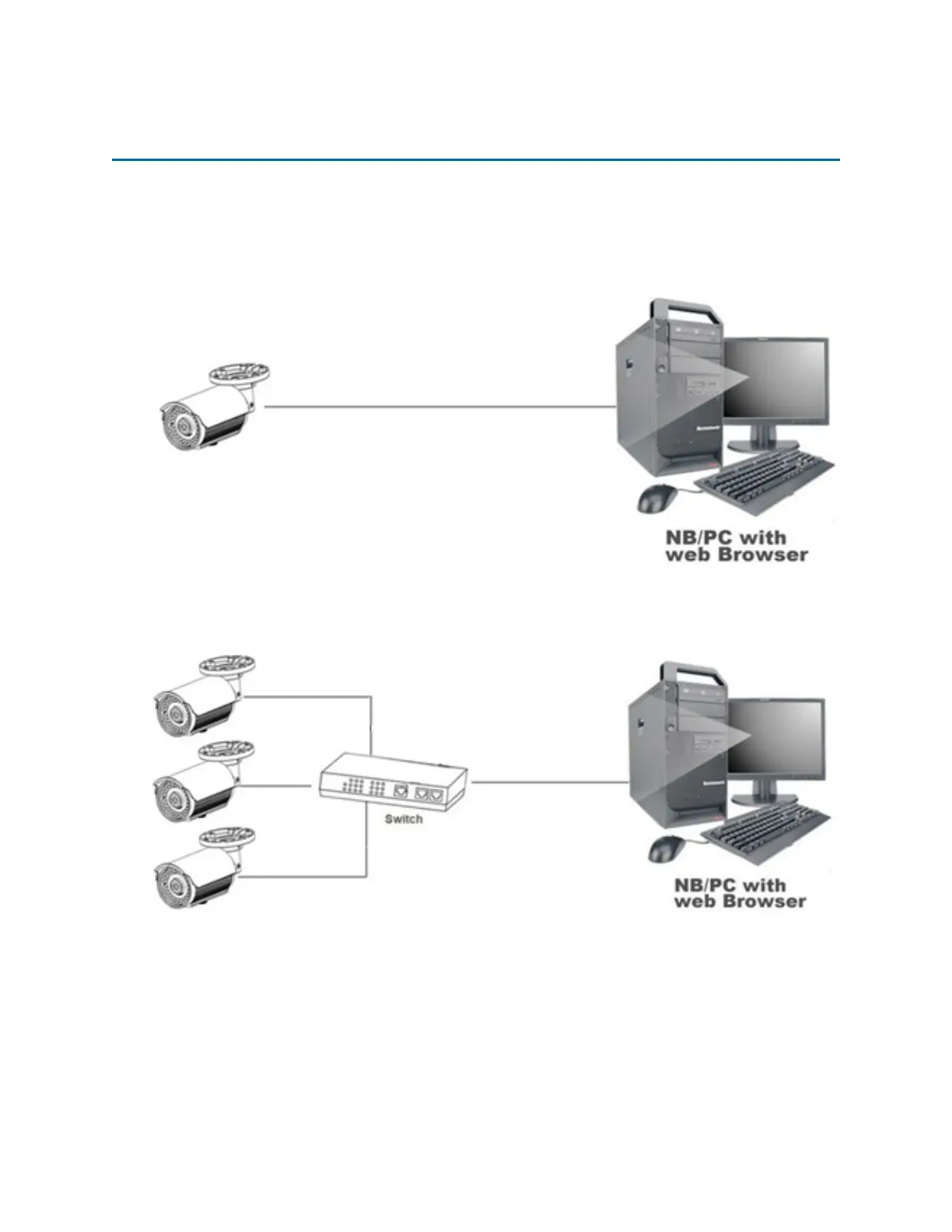

The following images illustrate the network topology of the cameras.
Figure 17 Illustra Flex Bullet Camera Network Topology Type I
Figure 18 Illustra Flex Bullet Camera Network Topology Type II
