Illustra Pro PTZ Outdoor Housing
10 Quick Reference Guide

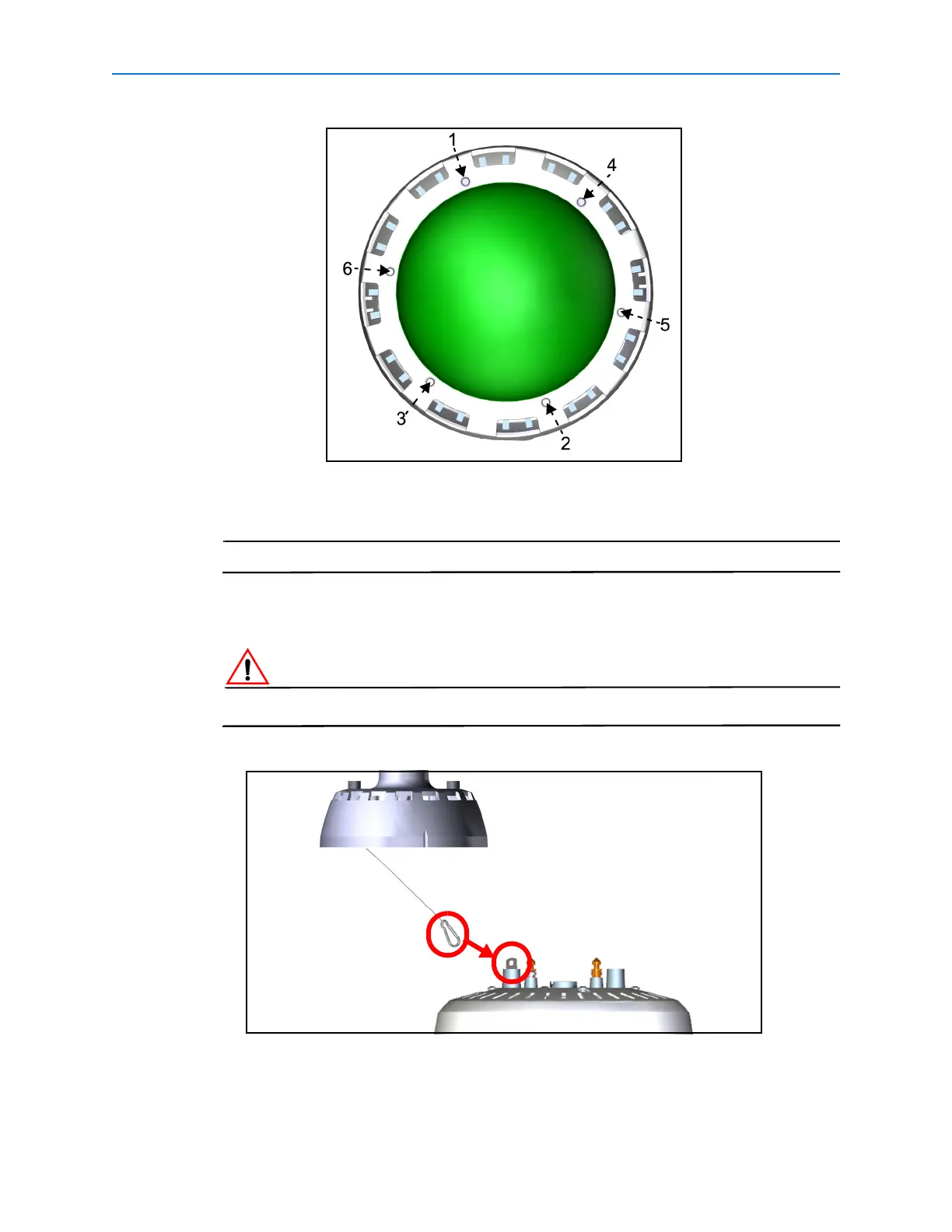

Figure 14
f Repeat the process and securely tighten each screw using the tamperproof torx
wrench in the sequence shown in
Figure 14.
Do not overtighten the screws as they may damage the trim ring assembly.
13 Attach the clip on the safety lanyard in the pendant adaptor to the L hook on base of the
outdoor camera housing as seen in
Figure 15.
Ensure that the clip is securely attached.
Figure 15
* The cables have been removed from drawing for clarity
