Illustra Pro PTZ Outdoor Housing
9

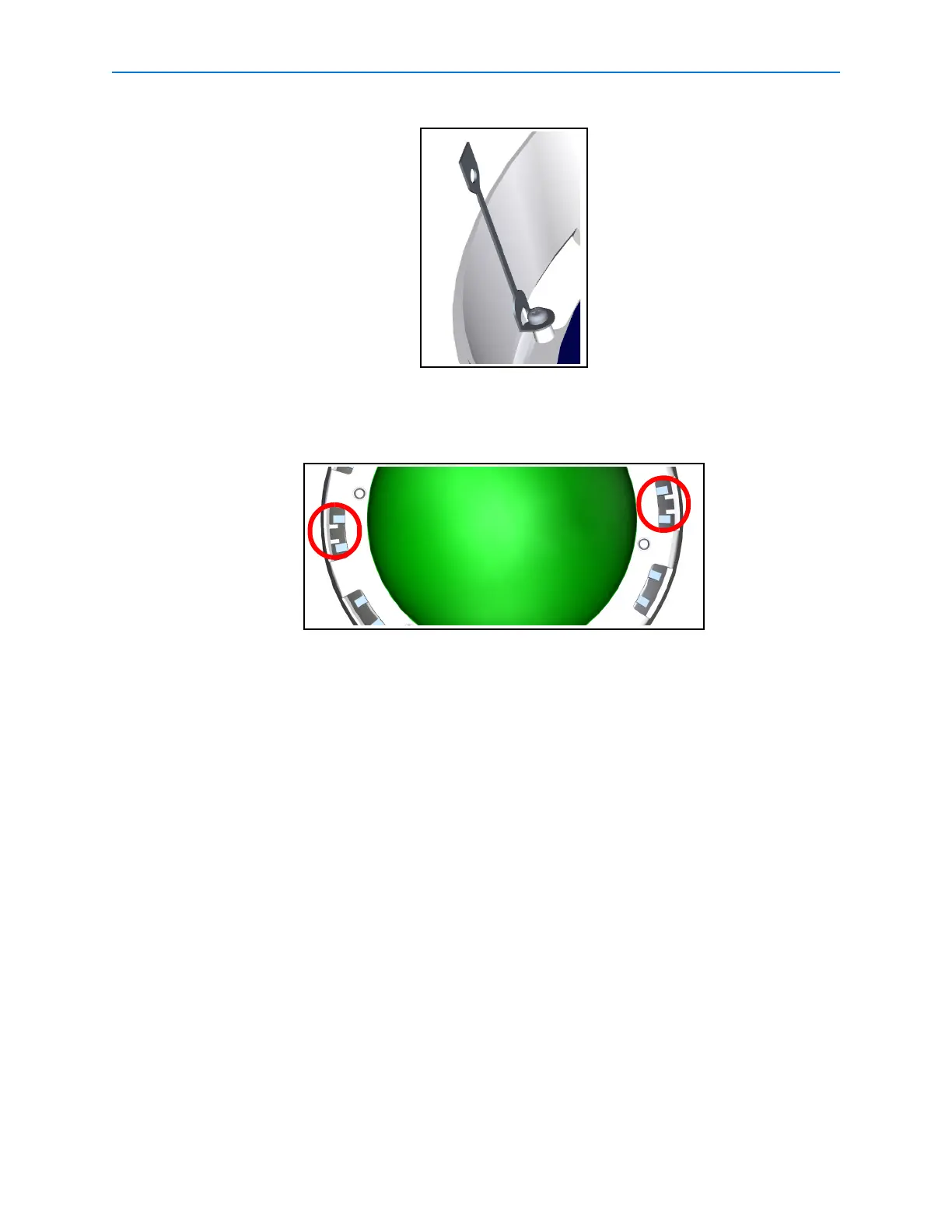

Figure 12
d Align the bubble assembly with the holes on the outdoor housing flange. The location
ribs on the trim ring will fit between the fins on the outside of the housing as seen in
Figure 13.
Figure 13
e Loosely tighten the six M4 screws using the tamperproof torx wrench in the sequence
shown in
Figure 14.
