Illustra Pro PTZ Outdoor Housing
12 Quick Reference Guide
17 Using both hands to provide even pressure insert the outdoor camera housing into the
pendant adapter until in the home position.
Do not angle the outdoor camera housing when inserting it into the pendant
adapter. If the outdoor camera housing is inserted at an angle the bayonet lock
pins will not fully engage. Reference Figure 17.

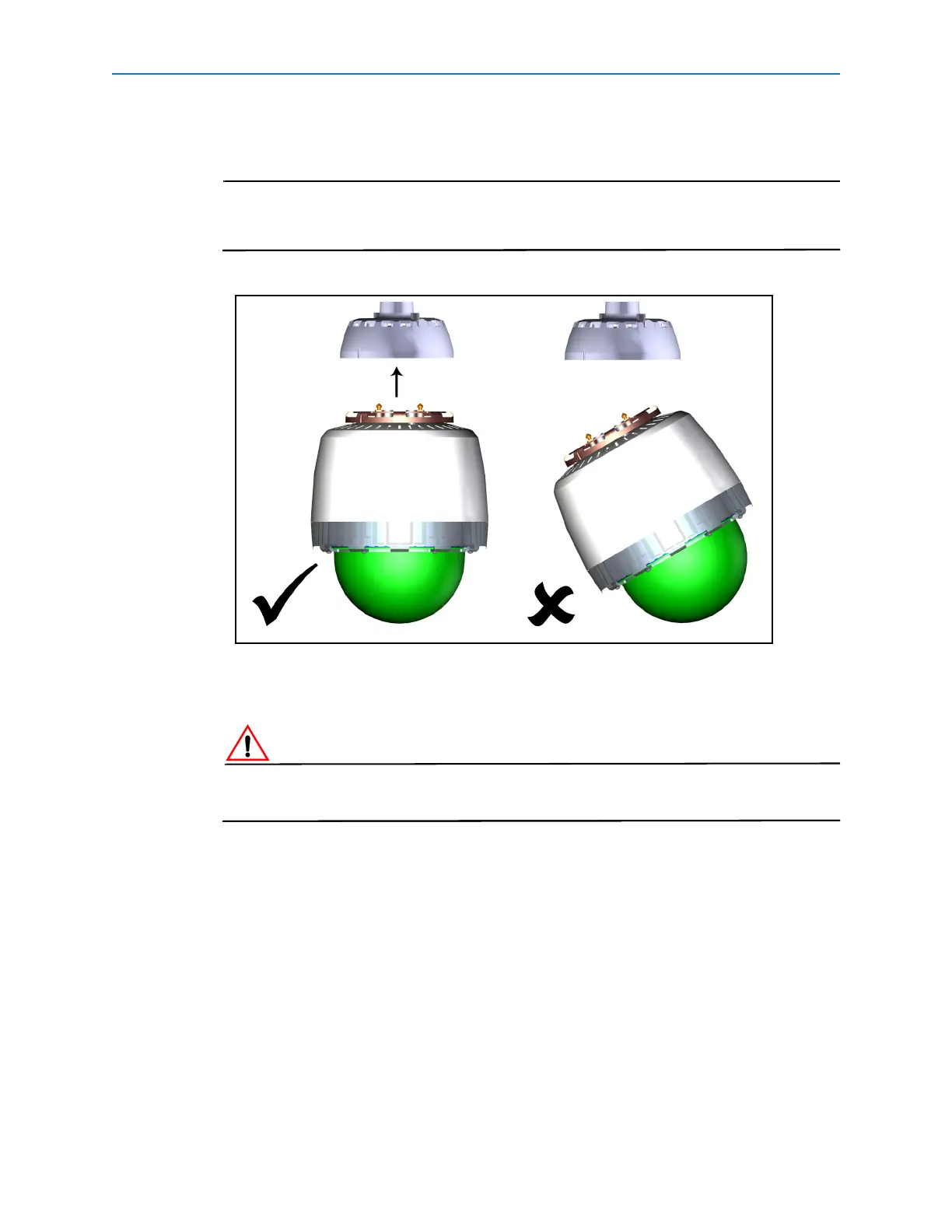

Figure 17
* Cables have been removed from drawing for clarity
18 Maintain upward pressure and rotate the camera housing clockwise to lock into position
as seen in
Figure 18.
Ensure that both bayonet lock pins are fully engaged before removing your hands from the
outdoor camera housing.
