Illustra Pro PTZ Outdoor Housing
4 Quick Reference Guide

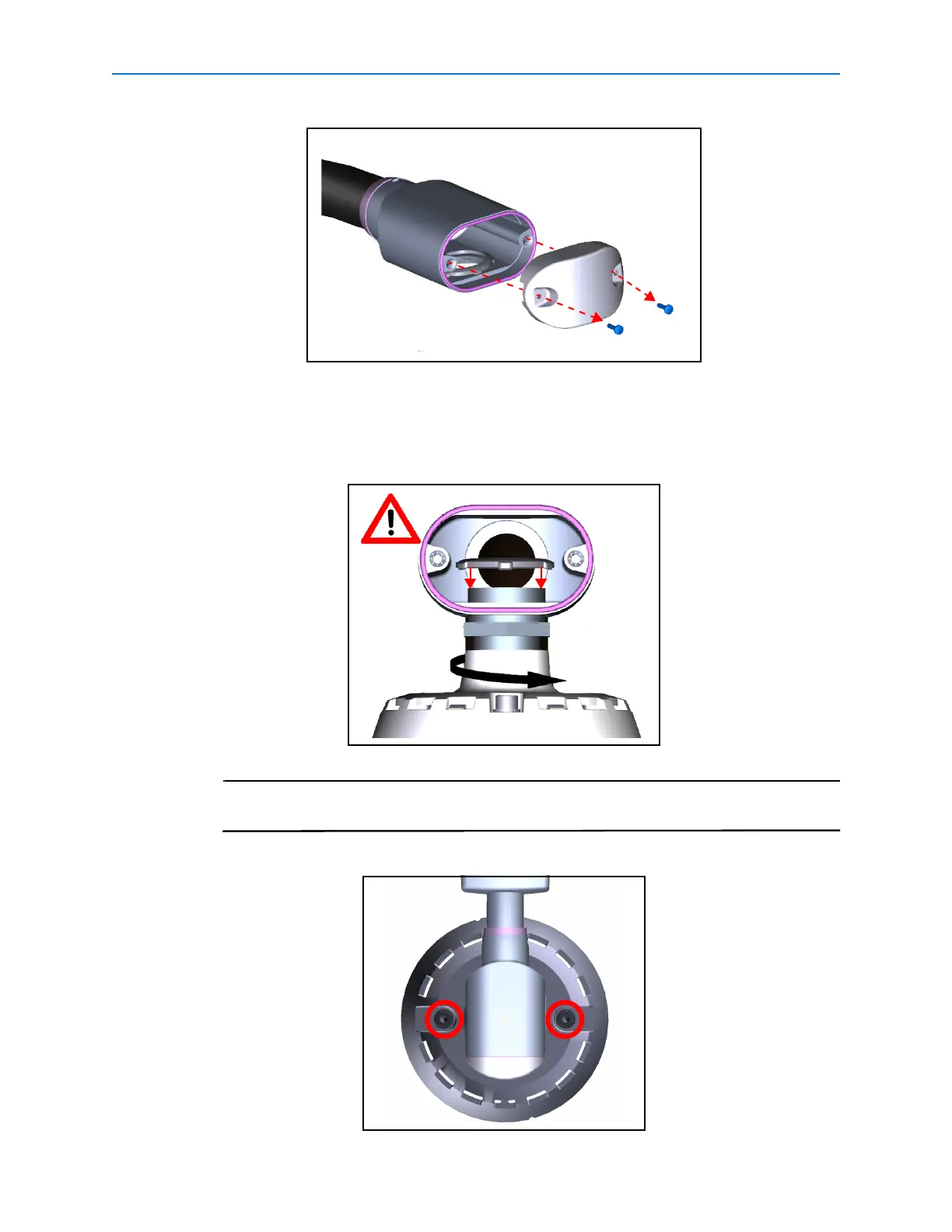

Figure 1
b Align the pendant adapter with the EndCap and rotate clockwise until approximately
6mm of the threaded adaptor is visible inside the EndCap.
c Attach the lock nut to the threaded adaptor and hold while rotating the pendant cap
until secure as seen in
Figure 2.
Figure 2
Note
When securing the pendant adapter ensure that the two M8 screws can be easily
accessed. This can be seen in Figure 3.
Figure 3
