Illustra Pro PTZ Outdoor Housing
5

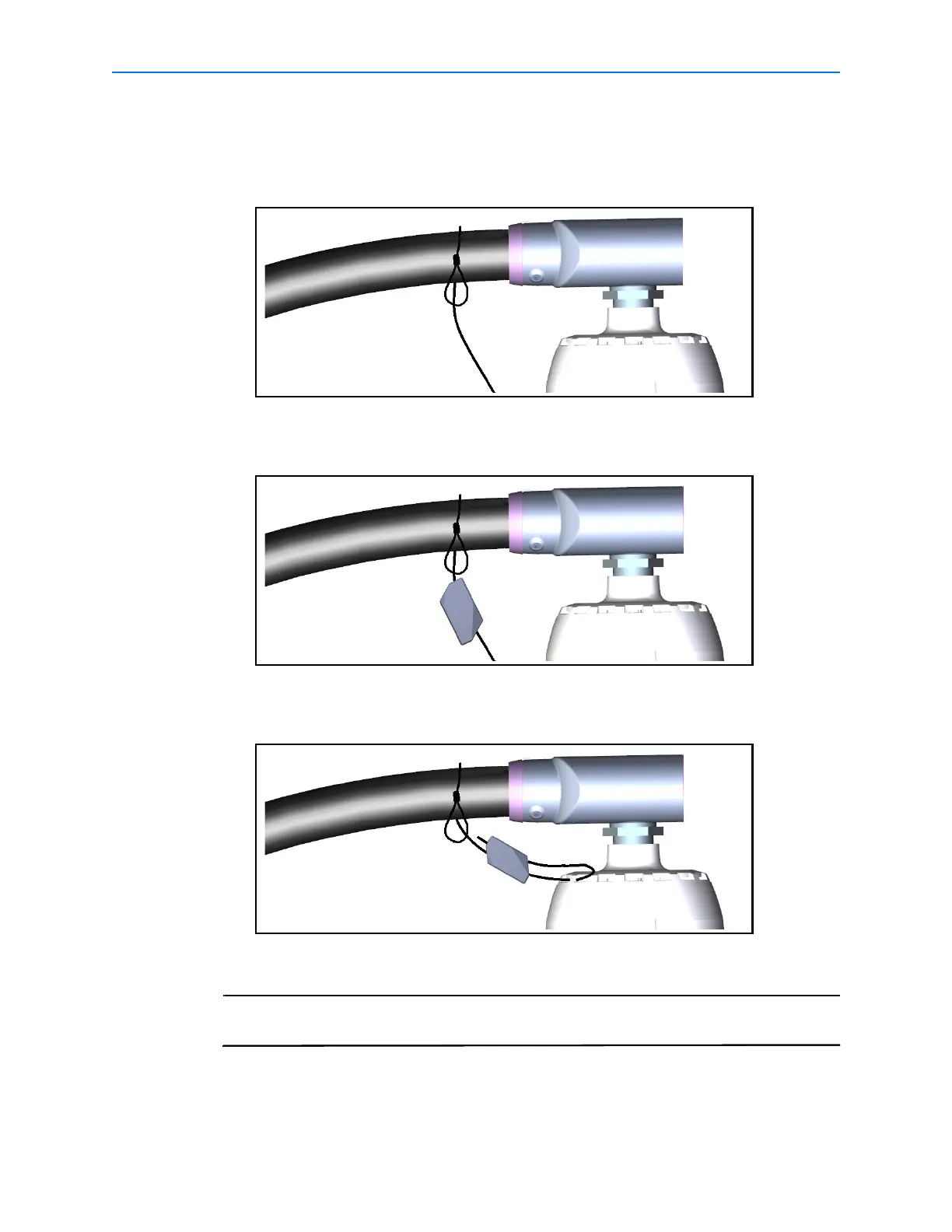

6 Attach the External Safety Lanyard:
a Wrap the safety lanyard around the pipe and thread end through the loop as seen in
Figure 4.
Figure 4
b Attach the lanyard lock by threading the end of the safety lanyard through the hole in
the lanyard lock as seen in
Figure 5.
Figure 5
c Feed the end of safety lanyard through vent slots on the pendant adaptor and back
through the lanyard lock as seen in
Figure 6.
Figure 6
d Pull the excess safety lanyard through the lanyard lock to remove the slack.
Note
To remove the lanyard lock, insert the supplied release pin into the pin hole at
either end of the lanyard lock and pull to release the cable.
7 Route the supplied cable ends through the EndCap mount and through the pendant
adapter. We recommend that you form an external loop with the cables and then feed
them through the pendant adapter as seen in
Figure 7, this allows freedom of movement
