ILVE AG60 - Installation

16
MOD. Ø EXIT HOLE
(mm)
SUCTION
(m
3/
h)
AG60
150
1000
AG70
150
1000
AG90
150
1000
AG100
150
1000
AG120 150 1000
AG150 150 1000

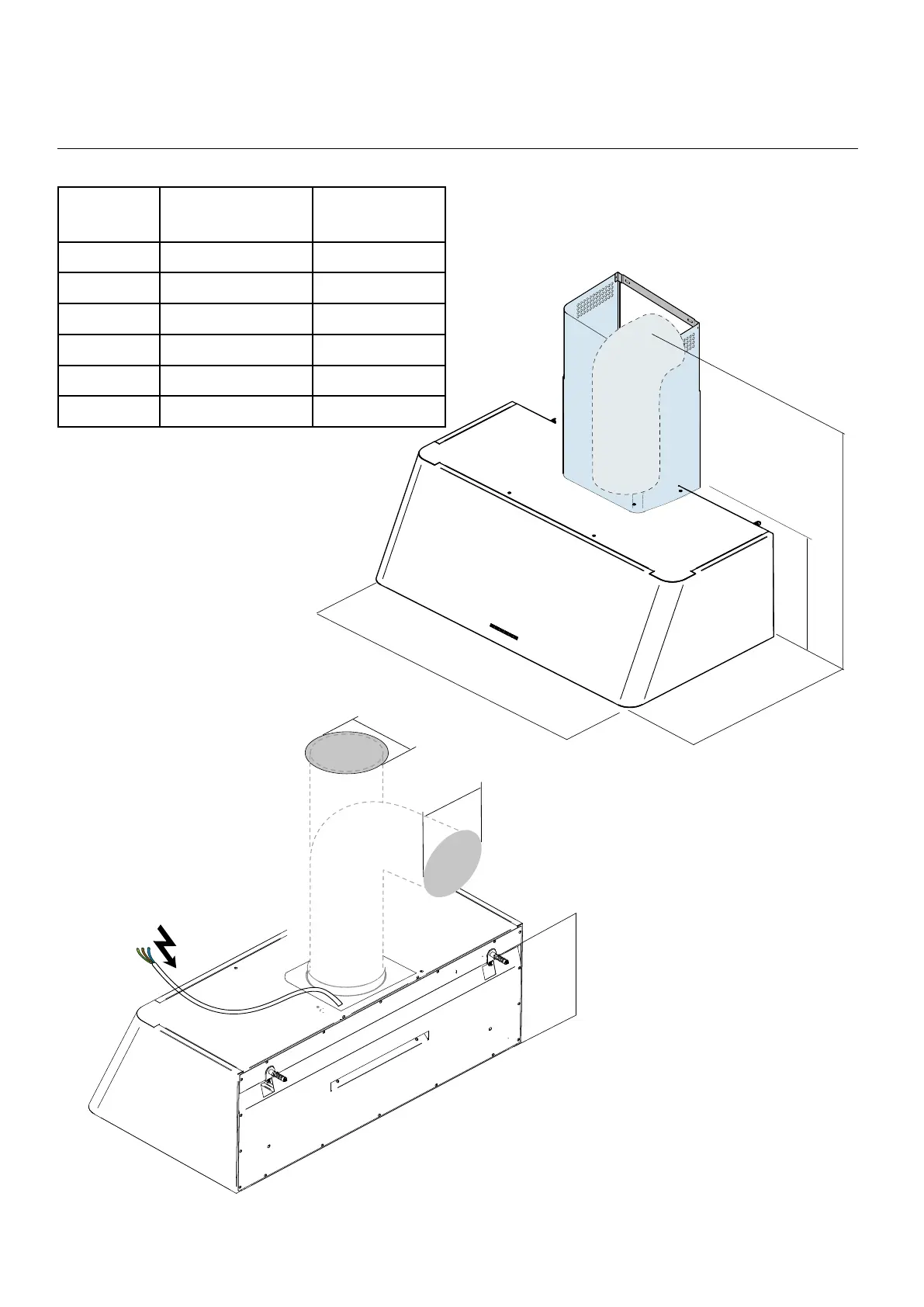

INSTALLATION
ø150 - 200 mm
600 - 700 - - 900 - 1000 - 1200 - 1500 mm
500 mm |
Min 710 mm | Max 1070 mm
350 mm
ø150 - 200 mm
ø150 - 200 mm
700 - 760 - 911 - 1000 - 1216 - 1511 mm
600 mm |
Min 810mm | Max 1130mm
440 mm
220/240 V
50 Hz
340 mm
