The fastening kit (screws and plugs) supplied with
the hood can only be used on masonry wall.
For installation on other types of walls consider
alternative fastening systems, taking into a
count the strength of the wall itself and the wei-
ght of the hood.

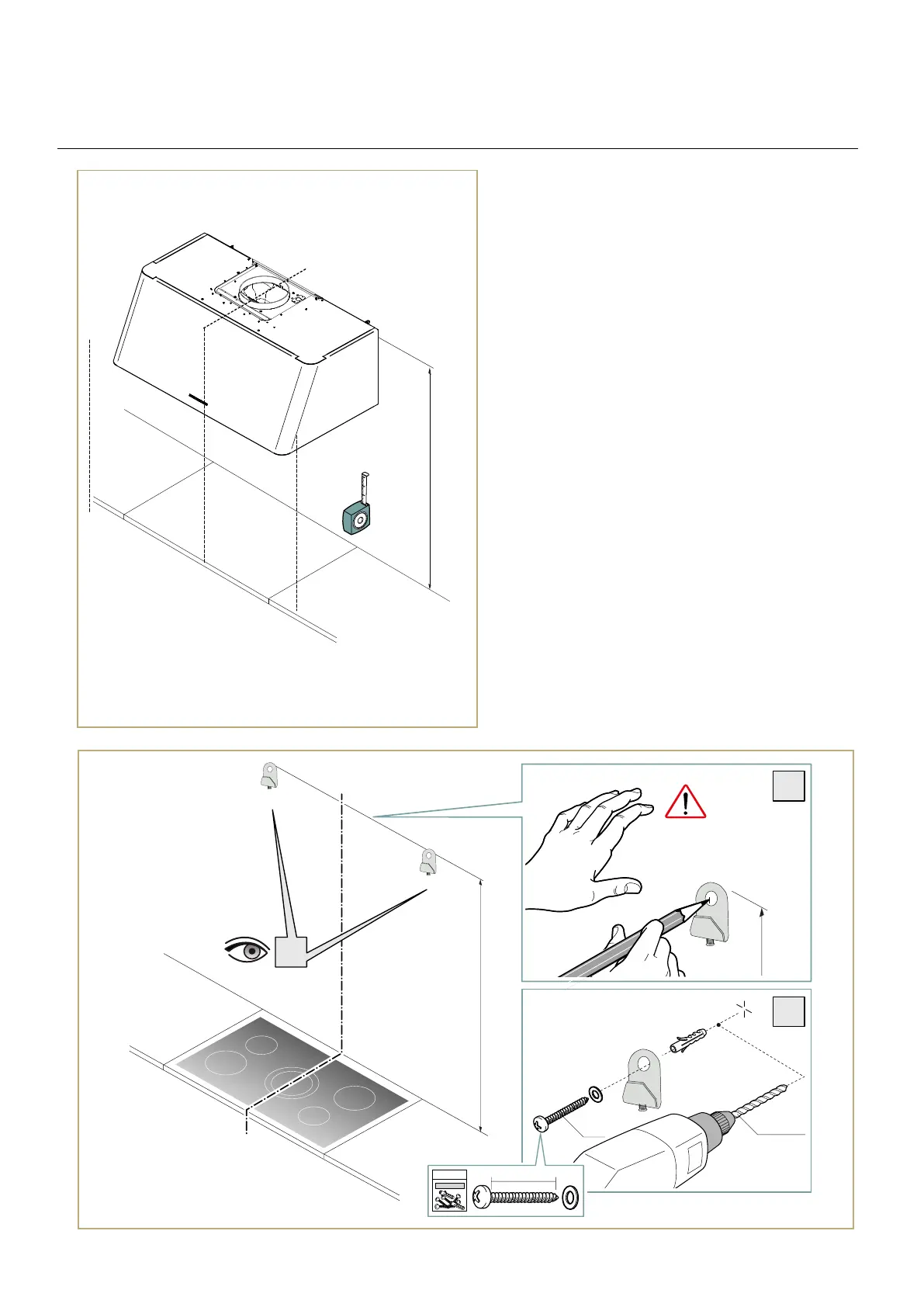

INSTALLATION
STEP 1
x2
2
3
=
=
1
1000 mm
45 mm | 1
49/64”
ø8 mm
ø 0
5/16”
1000 MM | 40
23/64”
(min)
1000 MM | 40
23/64”
(min)
1000 MM | 40
23/64”
(min)
1000 MM | 40
23/64”
(min)
1000 mm
1000 mm
=
=
