QUALIFIED INSTALLER
Do not drag the cooker as this will bend the supporting feet. Lift the appliance
when positioning it.
The Gas Connection is male 1/2” BSPT and is situated at the left hand rear of the
appliance (when looking from the front), 210mm from the side and 200mm from the
oor (with legs fully screwed in) or 260mm from oor (with legs fully screwed out).
This appliance shall be installed only by authorised persons and in accordance
with the manufacturer’s installation instructions, local gas tting regulations, munici-
pal building codes, electrical wiring regulations, local water supply regulations, AS/
NZS 5601 - Gas Installations and any other statutory regulations.
This is a type “A” appliance which does not need to be joined to an exhaust sy-
stem for combustion waste but must be installed under a hood or other smoke
extraction system in compliance with the standards in force. The knowledge and
consultation of the standards are a key factor for a qualied technician. Indicatively
the amount of air necessary for burner combustion is 2 m3/hp for each KW of no-
minal power installed (see plate). Should the appliance be subjected to intensive
and prolonged use, supplementary ventilation may be necessary; in such cases
open a window or increase the extractor fan’s power.
INSTRUCTIONS
FOR INSTALLATION
Attention
Gas connection
Room ventilation

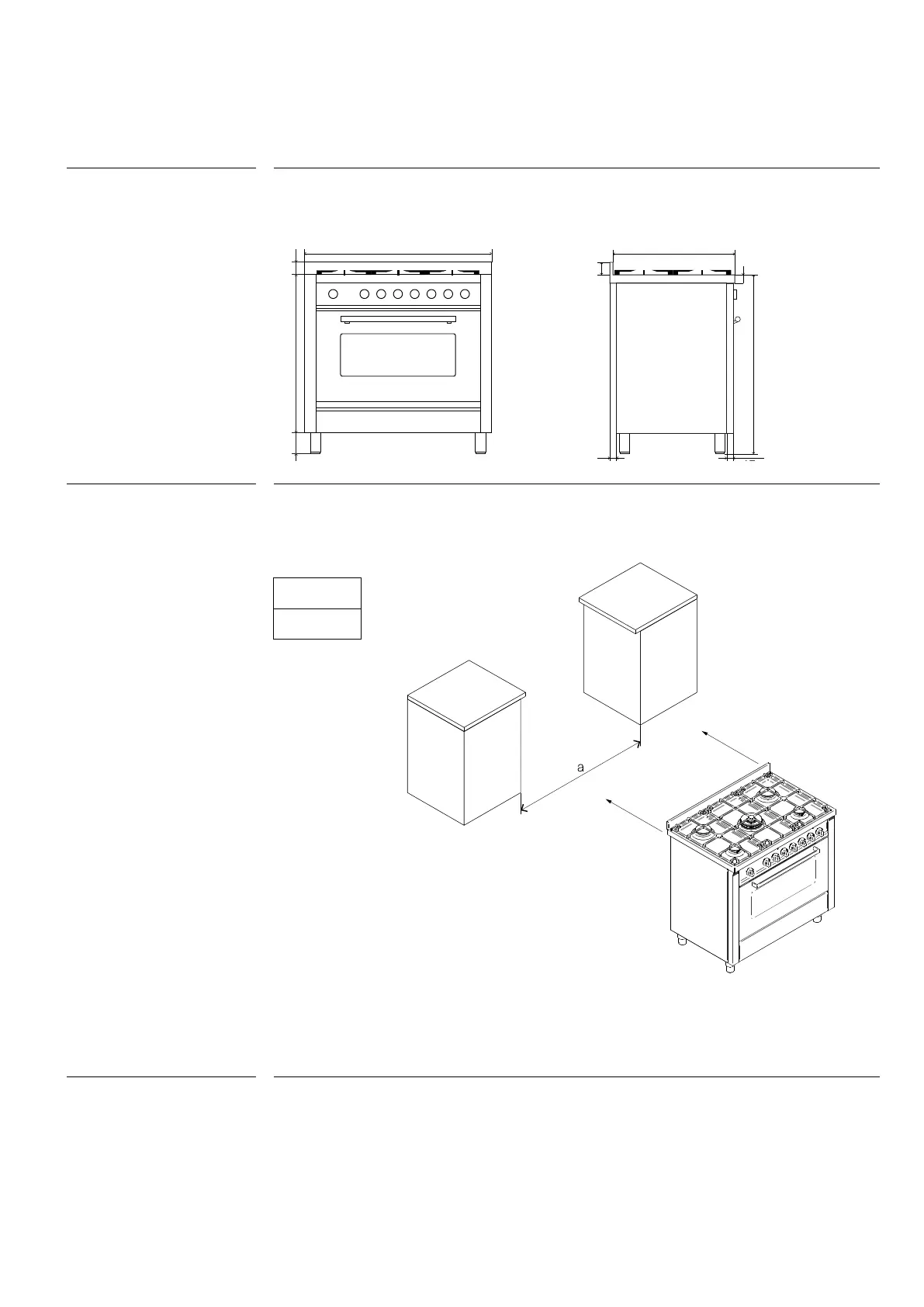

60
900
760
÷160
600
60
40
860÷920
a (mm)
900
