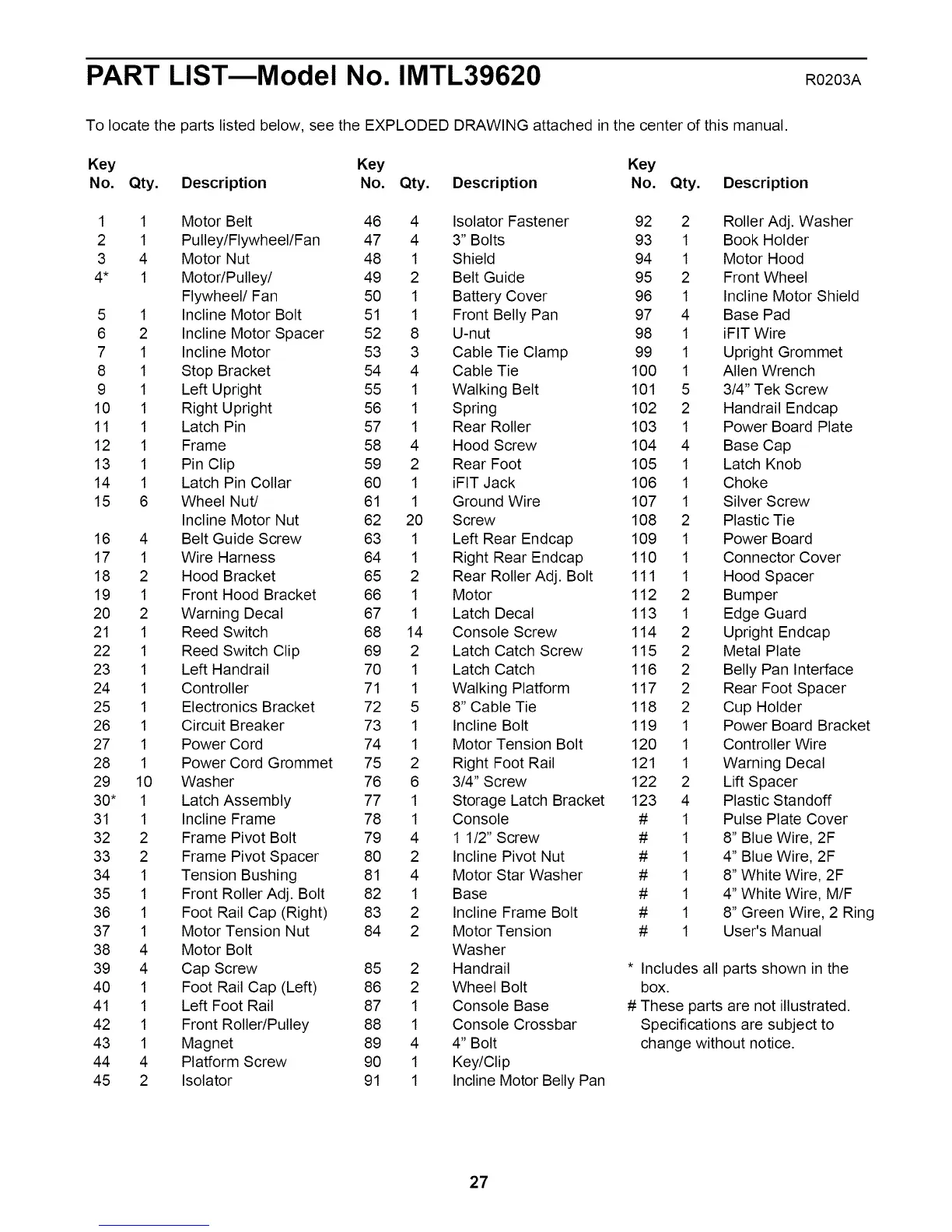

PART LISTmModel No. IMTL39620 RO2O3A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Motor Belt 46 4 Isolator Fastener 92 2 Roller Adj. Washer
2 1 Pulley/Flywheel/Fan 47 4 3" Bolts 93 1 Book Holder
3 4 Motor Nut 48 1 Shield 94 1 Motor Hood
4* 1 Motor/Pulley/ 49 2 Belt Guide 95 2 Front Wheel
Flywheel/Fan 50 1 Battery Cover 96 1 Incline Motor Shield
5 1 Incline Motor Bolt 51 1 Front Belly Pan 97 4 Base Pad
6 2 Incline Motor Spacer 52 8 U-nut 98 1 iFIT Wire
7 1 Incline Motor 53 3 Cable Tie Clamp 99 1 Upright Grommet
8 1 Stop Bracket 54 4 Cable Tie 100 1 Allen Wrench
9 1 Left Upright 55 1 Walking Belt 101 5 3/4" Tek Screw
10 1 Right Upright 56 1 Spring 102 2 Handrail Endcap
11 1 Latch Pin 57 1 Rear Roller 103 1 Power Board Plate
12 1 Frame 58 4 Hood Screw 104 4 Base Cap
13 1 Pin Clip 59 2 Rear Foot 105 1 Latch Knob
14 1 Latch Pin Collar 60 1 iFIT Jack 106 1 Choke
15 6 Wheel Nut/ 61 1 Ground Wire 107 1 Silver Screw
Incline Motor Nut 62 20 Screw 108 2 Plastic Tie
16 4 Belt Guide Screw 63 1 Left Rear Endcap 109 1 Power Board
17 1 Wire Harness 64 1 Right Rear Endcap 110 1 Connector Cover
18 2 Hood Bracket 65 2 Rear Roller Adj. Bolt 111 1 Hood Spacer
19 1 Front Hood Bracket 66 1 Motor 112 2 Bumper
20 2 Warning Decal 67 1 Latch Decal 113 1 Edge Guard
21 1 Reed Switch 68 14 Console Screw 114 2 Upright Endcap
22 1 Reed Switch Clip 69 2 Latch Catch Screw 115 2 Metal Plate
23 1 Left Handrail 70 1 Latch Catch 116 2 Belly Pan Interface
24 1 Controller 71 1 Walking Platform 117 2 Rear Foot Spacer
25 1 Electronics Bracket 72 5 8" Cable Tie 118 2 Cup Holder
26 1 Circuit Breaker 73 1 Incline Bolt 119 1 Power Board Bracket
27 1 Power Cord 74 1 Motor Tension Bolt 120 1 Controller Wire
28 1 Power Cord Grommet 75 2 Right Foot Rail 121 1 Warning Decal
29 10 Washer 76 6 3/4" Screw 122 2 Lift Spacer
30* 1 Latch Assembly 77 1 Storage Latch Bracket 123 4 Plastic Standoff
31 1 Incline Frame 78 1 Console # 1 Pulse Plate Cover
32 2 Frame Pivot Bolt 79 4 1 1/2" Screw # 1 8" Blue Wire, 2F
33 2 Frame Pivot Spacer 80 2 Incline Pivot Nut # 1 4" Blue Wire, 2F
34 1 Tension Bushing 81 4 Motor Star Washer # 1 8" White Wire, 2F
35 1 Front Roller Adj. Bolt 82 1 Base # 1 4" White Wire, M/F
36 1 Foot Rail Cap (Right) 83 2 Incline Frame Bolt # 1 8" Green Wire, 2 Ring
37 1 Motor Tension Nut 84 2 Motor Tension # 1 User's Manual
38 4 Motor Bolt Washer
39 4 Cap Screw 85 2 Handrail * Includes all parts shown in the
40 1 Foot Rail Cap (Left) 86 2 Wheel Bolt box.
41 1 Left Foot Rail 87 1 Console Base # These parts are not illustrated.
42 1 Front Roller/Pulley 88 1 Console Crossbar Specifications are subject to
43 1 Magnet 89 4 4" Bolt change without notice.
44 4 Platform Screw 90 1 Key/Clip
45 2 Isolator 91 1 Incline Motor Belly Pan
27
