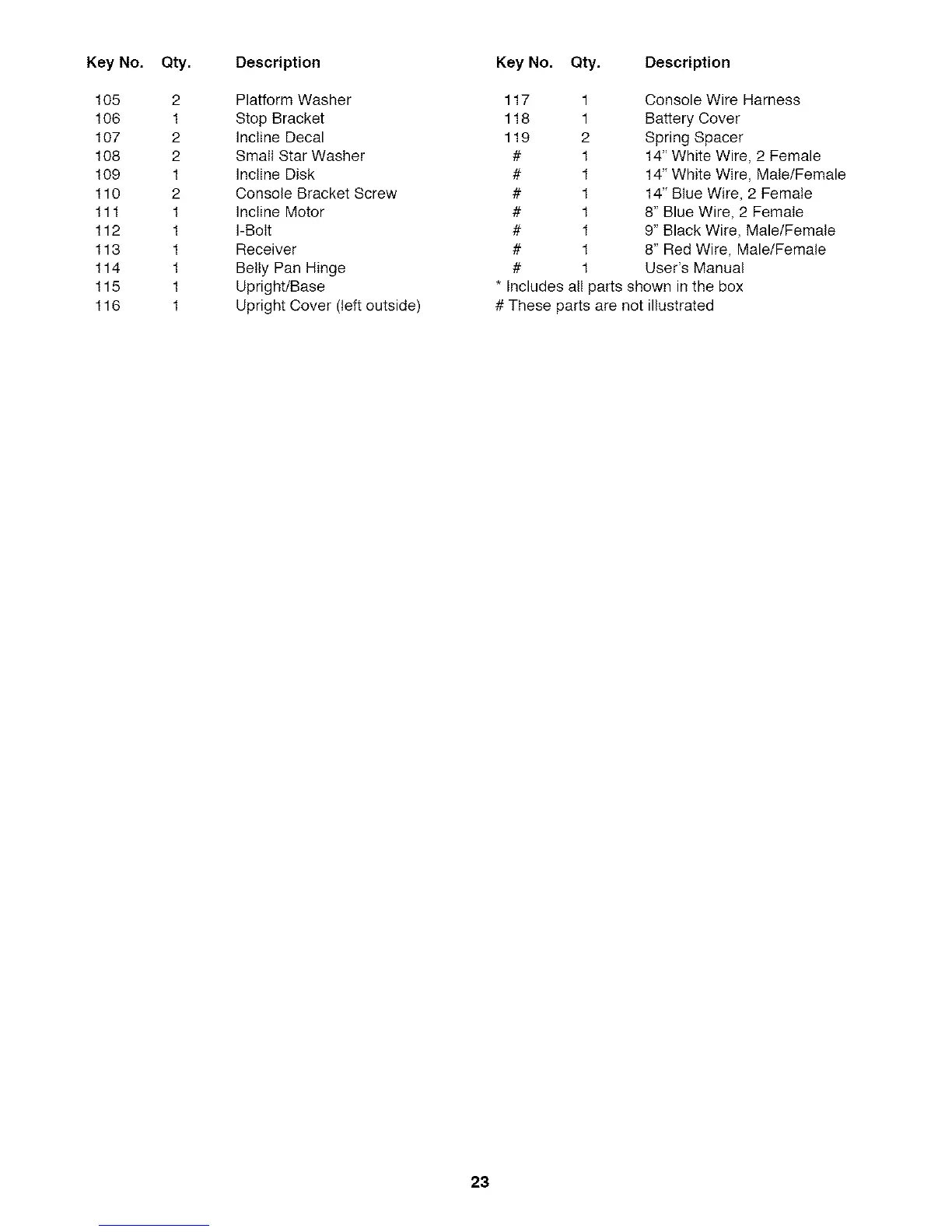

Image 10.6Q - Page 23

Key No.
105
106
107
108
109
110
!11
112
113
!14
115
116
Qty,
2
1
2
2
1
2
!
1
1
!
1
1
Description
Platform Washer
Stop Bracket
Incline Decal
Small Star Washer
Incline Disk
Console Bracket Screw
Incline Motor
I-Bolt
Receiver
Belly Pan Hinge
Upright/Base
Upright Cover (left outside)
Key No, Qty. Description
117
118
119
#
#
#
#
#
#
#
1
1
2
1
1
1
1
1
1
1
Console Wire Harness
Battery Cover
Spring Spacer
!4" White Wire, 2 Female
14" White Wire, Male/Female
14" Blue Wire, 2 Female
8" Blue Wire, 2 Female
9" Black Wire, Male/Female
8" Red Wire, Male/Female
User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
