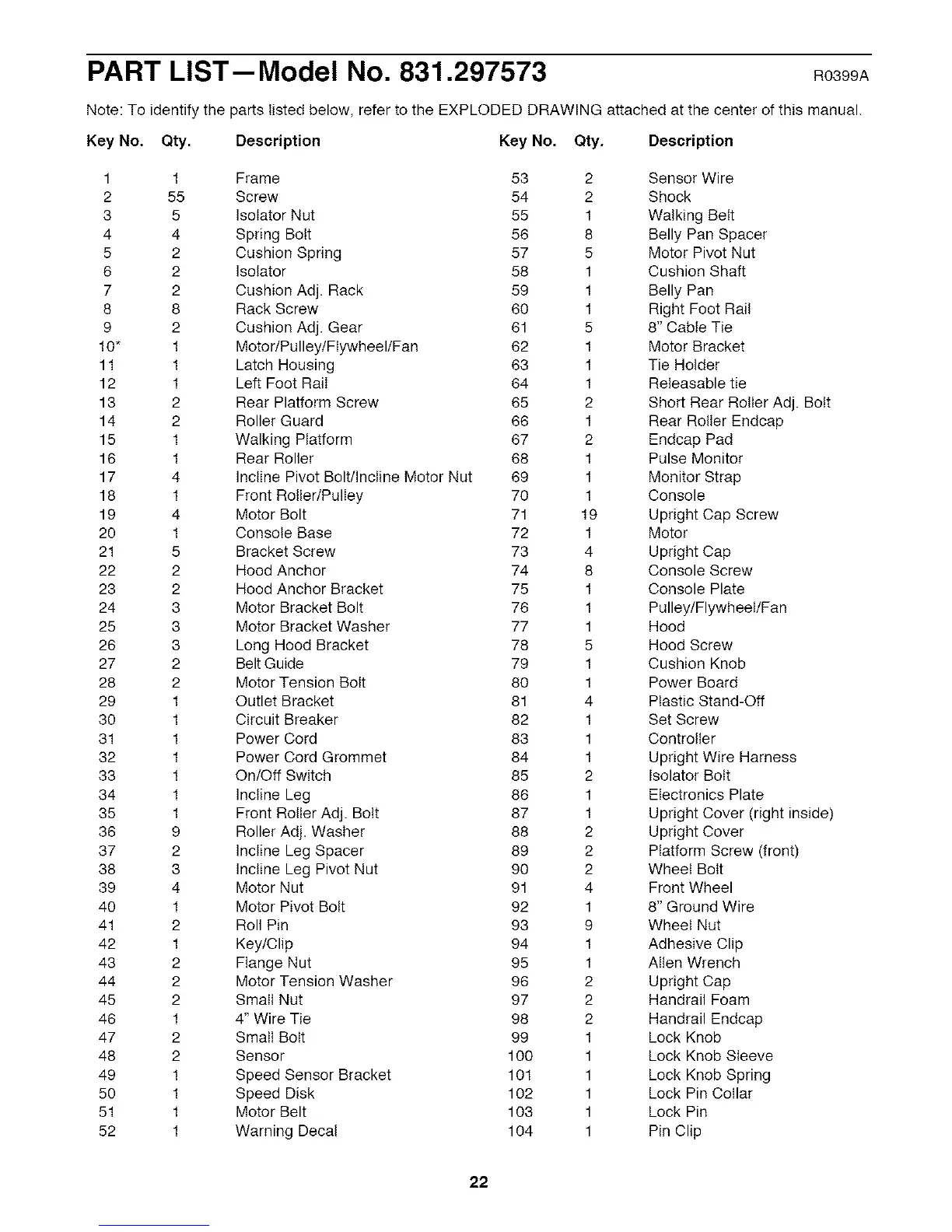

PART LIST--Model No. 831.297573
R0399A
Note: To identify the parts listed below, refer to the EXPLODED DRAWING attached at the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 ! Frame 53 2 Sensor Wire
2 55 Screw 54 2 Shock
3 5 Isolator Nut 55 1 Walking Belt
4 4 Spring Bolt 56 8 Belly Pan Spacer
5 2 Cushion Spring 57 5 Motor Pivot Nut
6 2 Isolator 58 1 Cushion Shaft
7 2 Cushion Adj. Rack 59 1 Belly Pan
8 8 Rack Screw 60 1 Right Foot Rail
9 2 Cushion Adj. Gear 61 5 8" Cable Tie
!0" ! Motor/Pulley/Flywheel/Fan 62 1 Motor Bracket
11 1 Latch Housing 63 1 Tie Holder
12 1 Left Foot RaiI 64 1 Releasable tie
13 2 Rear Platform Screw 65 2 Short Rear Roller Adj. Bolt
14 2 Roller Guard 66 1 Rear Roller Endcap
15 1 Walking Platform 67 2 Endcap Pad
16 ! Rear Roller 68 1 Pulse Monitor
17 4 Incline Pivot Bolt/Incline Motor Nut 69 1 Monitor Strap
18 1 Front Roller/Pulley 70 1 Console
19 4 Motor Bolt 71 19 Upright Cap Screw
20 1 Console Base 72 1 Motor
21 5 Bracket Screw 73 4 Upright Cap
22 2 Hood Anchor 74 8 Console Screw
23 2 Hood Anchor Bracket 75 1 Console Plate
24 3 Motor Bracket Bolt 76 1 Pulley/Flywheel/Fan
25 3 Motor Bracket Washer 77 1 Hood
26 3 Long Hood Bracket 78 5 Hood Screw
27 2 Belt Guide 79 1 Cushion Knob
28 2 Motor Tension Bolt 80 1 Power Board
29 1 Outlet Bracket 81 4 Plastic Stand-Off
30 1 Circuit Breaker 82 1 Set Screw
31 ! Power Cord 83 1 Controller
32 1 Power Cord Grommet 84 1 Upright Wire Harness
33 1 On/Off Switch 85 2 Isolator Bolt
34 ! Incline Leg 86 1 Electronics Plate
35 1 Front Roller Adj. Bolt 87 1 Upright Cover (right inside)
36 9 Roller Adj. Washer 88 2 Upright Cover
37 2 Incline Leg Spacer 89 2 Platform Screw (front)
38 3 Incline Leg Pivot Nut 90 2 Wheel Bolt
39 4 Motor Nut 91 4 Front Wheel
40 ! Motor Pivot Bolt 92 1 8" Ground Wire
41 2 Roll Pin 93 9 Wheel Nut
42 1 Key/Clip 94 1 Adhesive Clip
43 2 Flange Nut 95 1 Allen Wrench
44 2 Motor Tension Washer 96 2 Upright Cap
45 2 Small Nut 97 2 Handrail Foam
46 ! 4" Wire Tie 98 2 Handrail Endcap
47 2 Small Bolt 99 1 Lock Knob
48 2 Sensor 100 1 Lock Knob Sleeve
49 ! Speed Sensor Bracket 101 1 Lock Knob Spring
50 1 Speed Disk 102 1 Lock Pin Collar
51 1 Motor Belt 103 1 Lock Pin
52 ! Warning Decal 104 1 Pin Clip
22
