Imax B5 - Li-Poly Battery Balancing Mode; Balancing Process and Connections

Charging Li-Poly battery at balancing mode
This is for balancing the voltages of
Lithium batteries of the battery pack
to be charged. To do this, the battery
pack being charged should have the
individual cell connector. And
connect it to the individual port at the
right side of charger. You do not need
connect the battery output jack to the
output of charger at this program.
In this mode, the charging process
will be different from ordinary
charging mode. The internal
processor of the charge will monitor
the voltages of each cell of the
battery pack and control the
charging current feeding to each cell
to normalize the voltage.

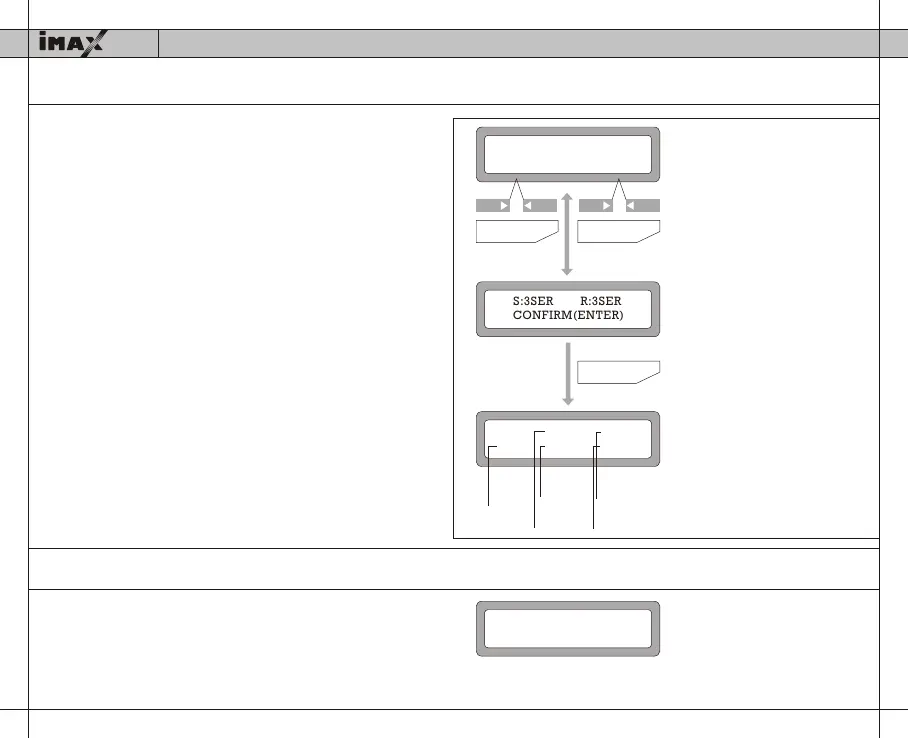

LiPo CHARGE
2.OA 11.1V(3S)
-
+
INC DEC
-
+
INC DEC
Batt type
stop
Start Enter
BL3S 1.2A 12.59V
CHG 022:43 00682
Number
of
cells
Charging
time
Charging
current
Battery
voltage
Charged
capacity
S:3SER R:3SER
CONFIRM(ENTER)
Start Enter
Inquiry the voltage of individual cells
You can monitor the present voltage
of individual cell by pressing DEC of
INC button during the process.
4.17V 4.17V 4.19V
0.4A 0.00V 0.00V
B5
This shows the number of cells you
set up and the processor detects.
`R`shows the number of cells
found by the charger and `S`is the
number of cells selected by you at
the previous screen. If both
numbers are identical you can
start charging by press start enter
button. If not, press batt type stop
button to go back to previous
screen.Then carefully check the
number of cells of the battery pack
to charge again.
The screen shows the present
situation during charge process.
To stop charging press batt type
stop key once.
The value on the left side of
second line sets a charge current
and the value on the right side of
second line sets the voltage of the
battery pack.After setting the
current and voltage press start
enter key for more than 3 seconds
to start the process.(Charge
current: 0.1---5.0A, Voltage: 1---5
series)
The first line of display shows the
voltage of NO.1 cell, 2 cell and
NO.3 cell from the left. And the left
of Second line shows the charging
current. The next shows the
voltage of NO.4 and NO.5 cell.
Charging li-ion/poly battery.
li-ion/Polymer Balance Charger
