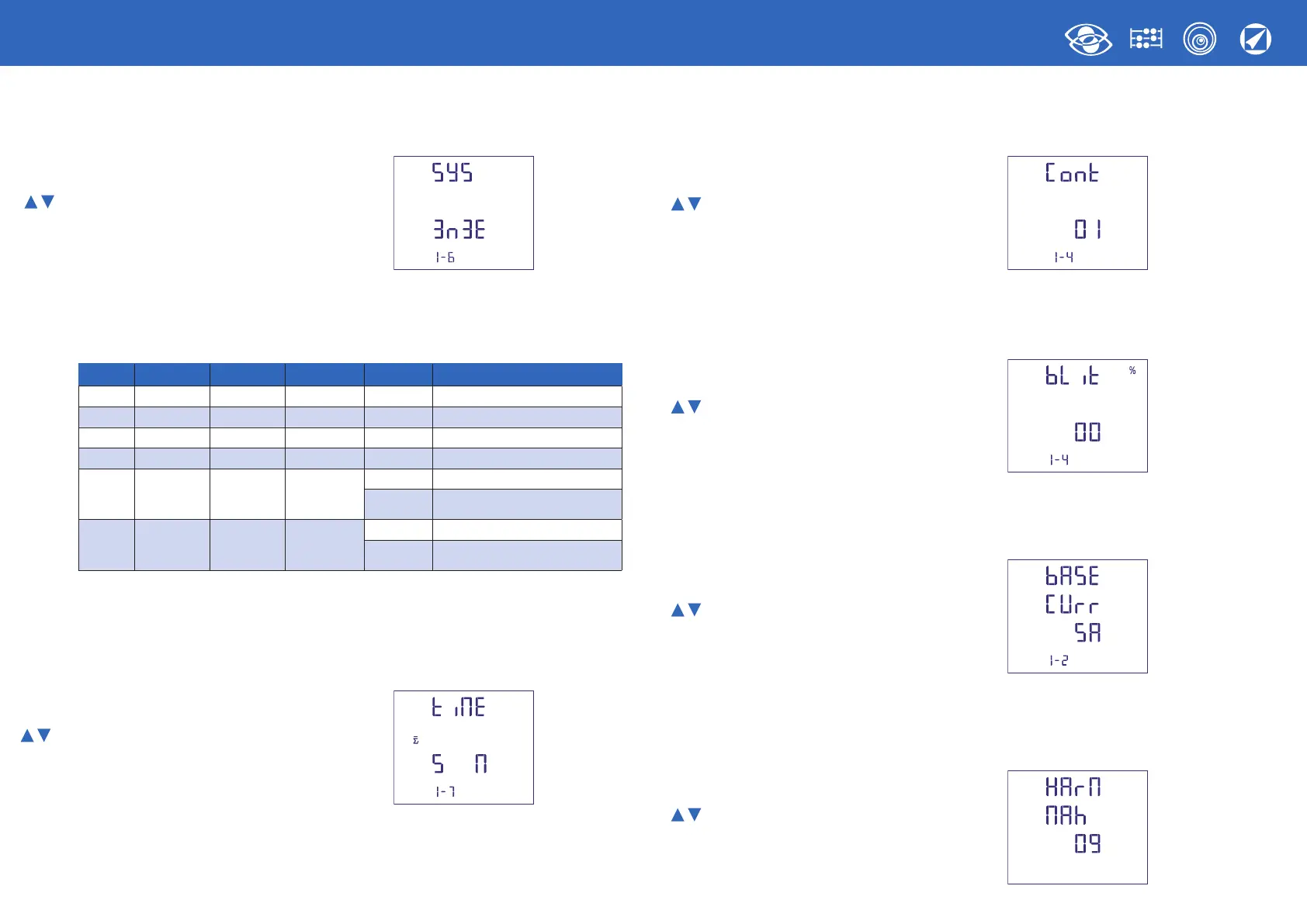

1.2 Connection
selects connection
↵ confirms
Select the desired connection and scrupulously respect the linked wiring diagram.
The selectable wiring diagrams are:
Symbol Line Load n°external CT’S Wiring Connection
1N1E
Single-phase - 1 S 1000/292
3-1E
3-phase 3 wires Balanced 1 S 1000/314
3N1E
3-phase 4 wires Balanced 1 S 1000/317
3-2E
3-phase 3 wires Unbalanced 2 S 1000/293 Aron L1 - L3
3-3E
3-phase 3 wires Unbalanced 3
S 1000/294
S 1000/299
CT connection with common point,
1 return
3N3E
3-phase 3 wires Unbalanced 3
S 1000/295
S 1000/300
CT connection with common point,
1 return
1.3 Current delay time and average power
Selectable delay time: 5, 8, 10, 15, 20, 30, 60minutes
The selected time is valid both for the current and the average power
selects the contrast level
↵ confirms
1.4 Display contrast
4 value display to adjust display contrast
selects the contrast level
↵ confirms
1.5 Display contrast
The 4 selectable levels (0 – 30 – 70 – 100%) show the display lighting percentage
selects the lighting level
↵ confirms
1.6 Rated current (external CT secondary winding)
Rated value 1A (external CT with secondary /1A) or 5A (external CT with secondary /5A)
selects 1A or 5A
↵ confirms
1.7 Harmonic analysis
Display mode: up to the 9
th
harmonic or up to 25
th
harmonic.
selects mode
↵ confirms
