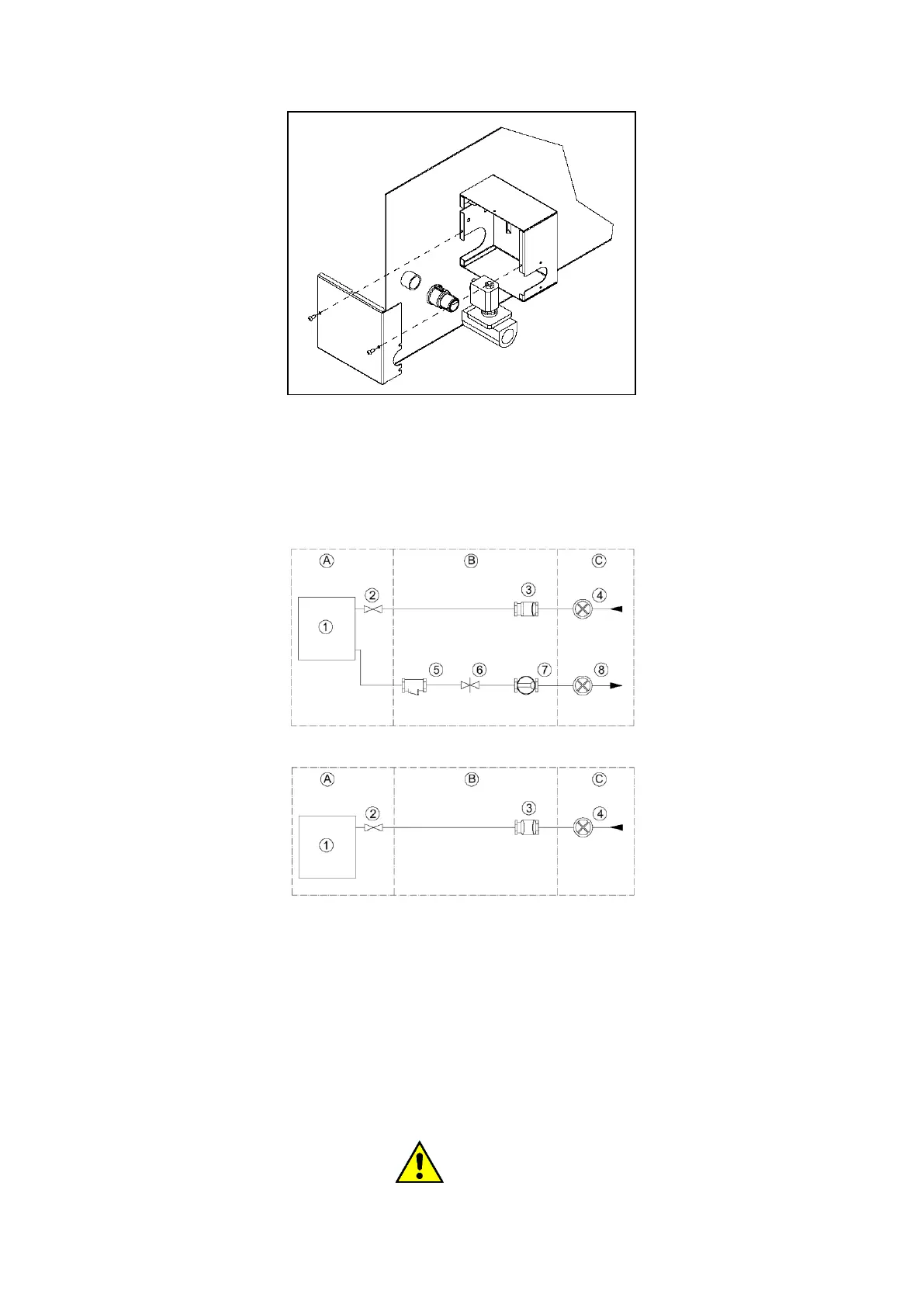

The steam supply system must be made according to the following scheme. Finally, all the connections between
the system and the appliance must be subjected to a leak test.
A) machine
B) external system
C) steam supply system
Heating: indirect steam:
Heating: direct steam
The elements of the plant are identified as follows in the diagrams:
1) washing machine
2) steam valve (supplied)
3) filter
4) steam inlet gate
5) condensate trap
6) non-return valve
7) passage indicator
8) condensate outlet gate
ATTENTION!
The machine can operate with a steam pressure from 0.5bar to 4.5 bar, but the lower the steam pressure, the
