imilab EC5 - Ceiling Mounting

Ceiling mounting

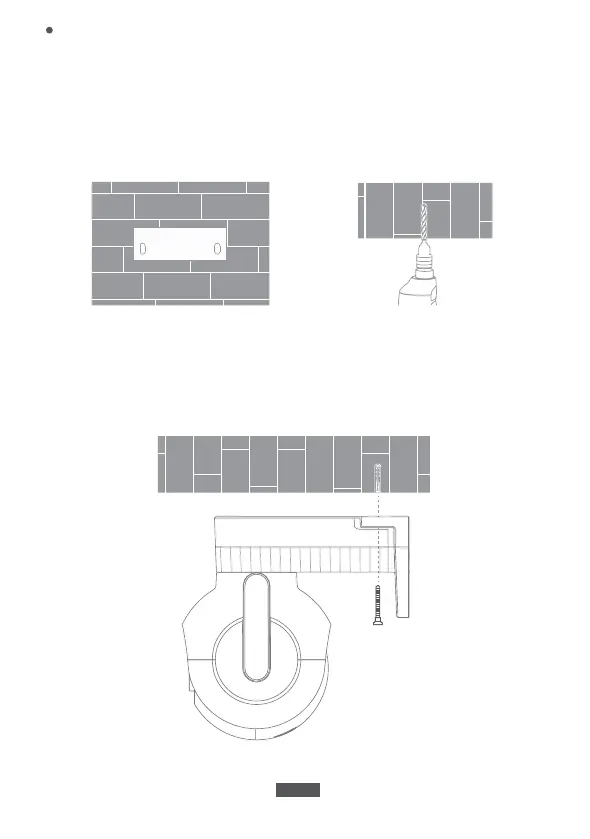

1. Attach the ceiling mounting positioning sticker on the desired installation
location on the ceiling. Drill two holes at the positions indicated on the
sticker. Drilling diameter of around 6.0 mm; drilling depth of around
30mm.
2. Insert two plastic expansion nuts into the wall. Put the base plate on the
ceiling. Secure the base plate by inserting the screws into the expansion
nuts.
EN-03
