11
L1
287
L
62,5
24
S
1448
39 5
946
235
S
1267
534
327
R
M
G
122
=
=
Technical characteristics and dimensions

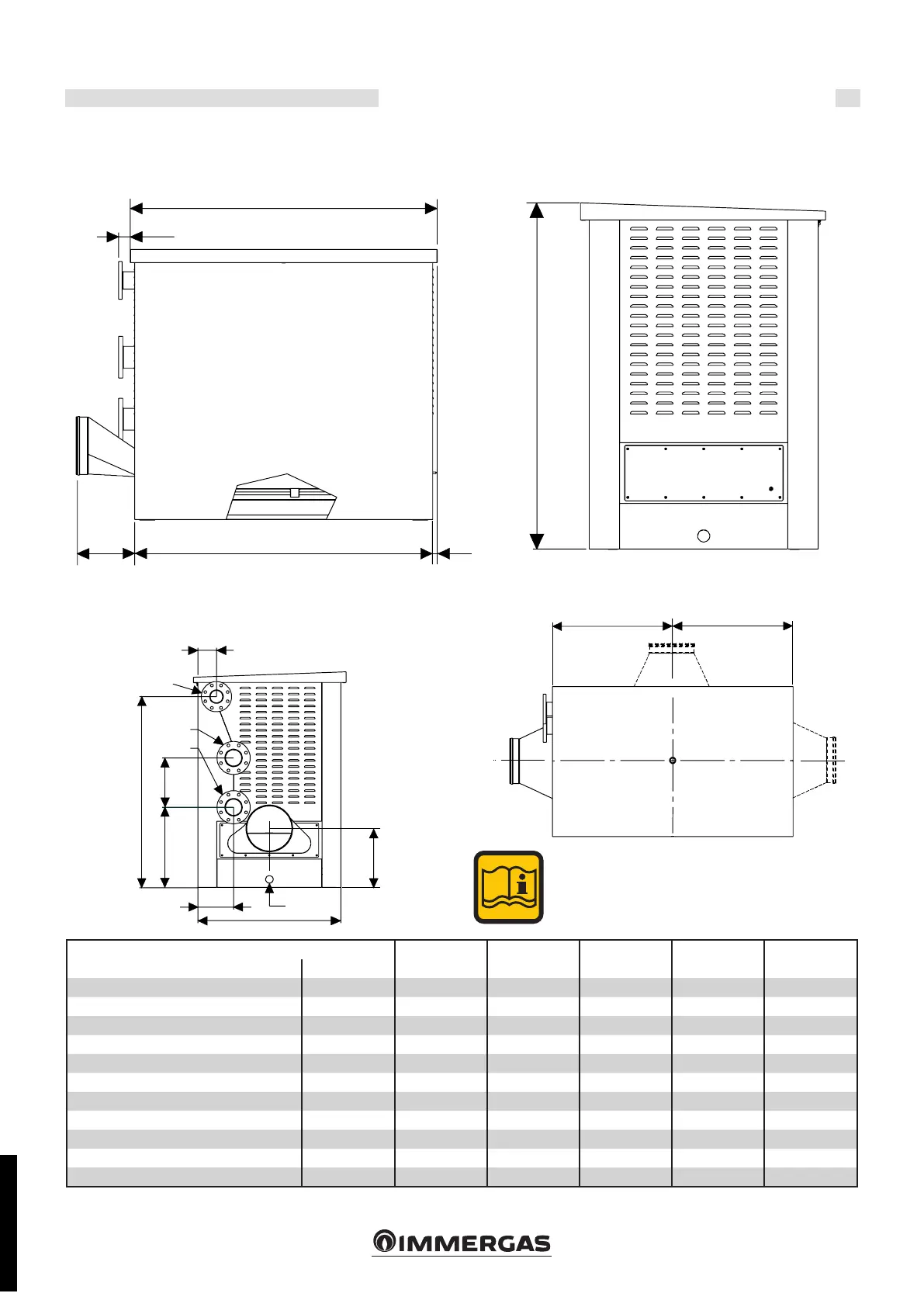

2.3 DIMENSIONS
FRONT VIEW RIGHT SIDE VIEW
TOP VIEW
LEFT SIDE VIEW
ARES Tec ErP 440 550 660 770 900
Dimensions Unit
Heating elements n° 4 5 6 7 8
Height mm 1448 1448 1448 1448 1448
Width "L" mm 1087 1355 1355 1623 1623
Width "L1" mm 1039 1307 1307 1575 1575
Depth mm 946 946 946 946 946
Attachment sizes
G Gas tting mm (inch) 80 (3) 80 (3) 80 (3) 80 (3) 80 (3)
F System ow mm (inch) 100 (4) 100 (4) 100 (4) 100 (4) 100 (4)
R System return mm (inch) 100 (4) 100 (4) 100 (4) 100 (4) 100 (4)
Flue tting mm 250 250 300 300 300
Condensate drain mm 40 40 40 40 40
Flue outlets:
Le side (supply condition)
Right side
Rear side
STD.006533/003
