Immergas AUDAX TOP 6 ErP Instruction And Recommendation Booklet

3-4
 

L N
C B A
27
INSTALLERUSER
MAINTENANCE TECHNICIAN
Key: = Manufacturer's wiring = Installer's wiring CM = Compressor motor FM = Fan motor SF = Reversing valve TS = Low-pressure pipe temperature
probe
TO = Outdoor unit temperature probe

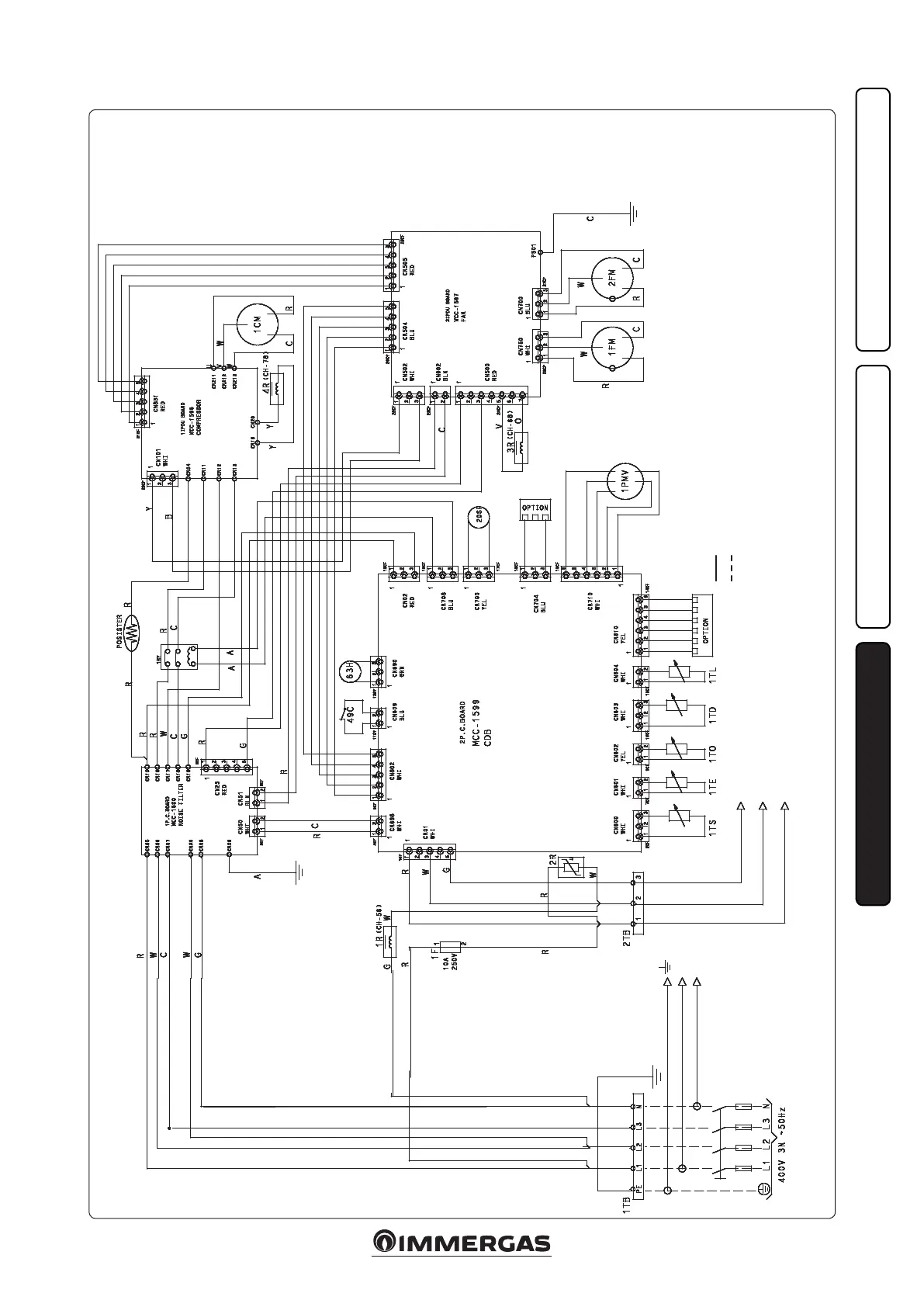

3.4 AUDAX TOP 16 ErP WIRING DIAGRAM.
TD = High-pressure pipe temperature
probe
TE = Condenser pipe temperature probe TL = Condenser 2 pipe temperature probe PMV = Modulating valve motor R = Inductance F = Fuse C = Compressor thermostat H = High pressure switch RY = Relay
Cable colour: R = Red A = Brown C = Black V = Purple B = Blue W = White G = Grey Y/G = Yellow/Green

Immergas AUDAX TOP 6 ErP Specifications

General

Brand	Immergas
Model	AUDAX TOP 6 ErP
Category	Heat Pump
Language	English
